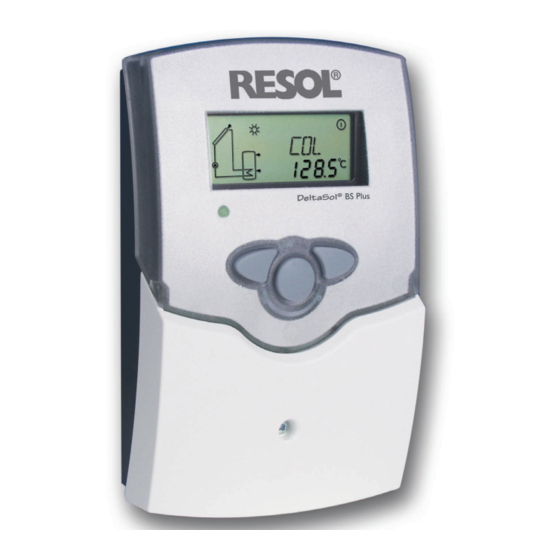

RESOL D e lt a S o l
BS Plus
Mounting
Connection
Operation
Troubleshooting
Application examples
Manual
Thank you for buying this RESOL product.
Read this manual carefully to get the best perfomance from this unit.
Please keep this manual carefully.
www.resol.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DeltaSol BS Plus and is the answer not in the manual?

Questions and answers

Related Manuals for Resol DeltaSol BS Plus

Summary of Contents for Resol DeltaSol BS Plus

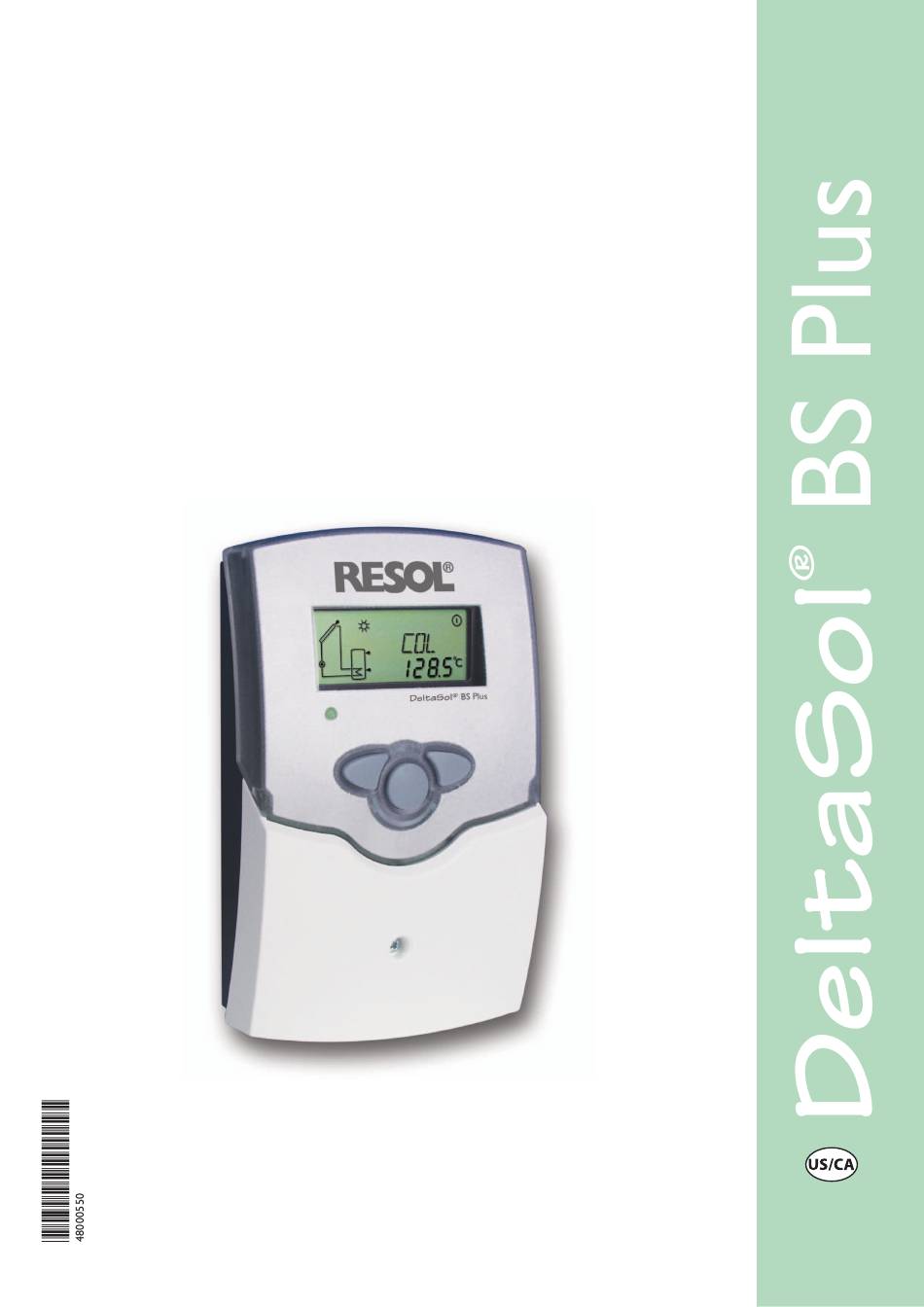

  • Page 1 ® RESOL D e lt a S o l BS Plus Mounting Connection Operation Troubleshooting Application examples Manual Thank you for buying this RESOL product. Read this manual carefully to get the best perfomance from this unit. Please keep this manual carefully.

  • Page 2: Table Of Contents

    BS Plus D e lt a S o l ® Contents Safety advice ................2 System monitoring display ..........10 Technical data and overview of functions ......3 2.2.1 Channel display ..............10 Installation .............4 2.2.2 Tool bar .................. 10 Mounting .................. 4 2.2.3 System screen ...............

  • Page 3: Technical Data And Overview Of Functions

    Housing: Operation: by 3 pushbuttons in the Outputs: 2 electromechanical relays plastic, PC-ABS and PMMA front of the housing Bus: RESOL VBus ® Protection type: IP 20 / DIN 40050 Functions: Differential temperature Power supply: 115 V~ controller with optional add-on system Ambient temp.: 32 ...

  • Page 4: Installation

    115 V~ (50 ... 60 Hz). Flexible cables must be attached to the housing with the enclosed strain relief DE - 45527 Hattingen DeltaSol BS Plus 115 V~ and the corresponding screws. The controller is equipped with 2 semiconductor relays, to...

  • Page 5: Data Communication/ Bus

    BS Plus D e lt a S o l ® 1.2.1 Data communication/ Bus The controller comes with a RESOL VBus for data DE - 45527 Hattingen ® DeltaSol BS Plus 115 V~ transfer with and energy supply to external modules. The connection is carried out at the terminals marked „VBus“...

  • Page 6: Solar System And Heat Exchange

    BS Plus D e lt a S o l ® 1.2.3 Terminal allocation - system 2 Solar system and heat exchange with an existing tank with 1 tank, 4 sensors and 2 pumps. Arr 2 Tank 1 Tank 2 Symbol Specification Collector sensor Tank sensor bottom...

  • Page 7: Solar System And Vertical Tank Charging

    BS Plus D e lt a S o l ® Solar system and vertical tank charging with 1 tank, 3 1.2.5 Terminal allocation - system 4 sensors, 1 solar pump and 3-way-valve. Sensor S4 / TRF can optionally be used for heat quantity balancing. Arr 4 Symbol Specification...

  • Page 8: 2-Tank-Solar System Pump Logic

    BS Plus D e lt a S o l ® 1.2.6 Terminal allocation - system 6 2-tank solar system with pump logic with 2 tanks, 3 sensors and 2 solar pumps. Arr 6 Tank 1 Tank 2 Symbol Specification Collector sensor Tank sensor 1 Tank sensor 2 Measuring sensor...

  • Page 9: Solar System Afterheating By Solid Fuel Boiler

    BS Plus D e lt a S o l ® 1.2.8 Terminal allocation - system 8 Solar system with solid fuel boiler after-heating with 1 tank, 4 sensors, 1 solar pump and 1 pump for after- heating. Arr 8 Symbol Specification Collector sensor Tank sensor bottom...

  • Page 10: Operation And Function

    BS Plus D e lt a S o l ® Operation and function 2.1 Pushbuttons for adjustment The controller is operated by 3 pushbuttons below the display. The forward-key (1) is used for scrolling forward through the indication menu or to increase the adjustment values.

  • Page 11: System Screen

    BS Plus D e lt a S o l ® 2.2.3 System screen The system screen (active system scheme) shows the schemes selected on the controller. It consists of several system component symbols, which are - depending on the current status of the system - either flashing, permanently shown or hidden.

  • Page 12: Commissioning

    BS Plus D e lt a S o l ® 3. Commissioning When the controller is commissioned for the first time, the arrangement has to be selected first 1. Switch on power supply. During the initialization phase, the operating control lamp flashes red and green. After initial- ization, the controller is in the automatic mode with typical operating control lamp settings.

  • Page 13: Control Parameters And Display Channels

    BS Plus D e lt a S o l ® Control parameters and display channels 4.1 Overview of channels Legend:  Corresponding channel is only available if the option heat quantity measurement is activated (OHQM). Corresponding channel is available.  Corresponding channel is only available if the option heat Corresponding channel is available if the appropriate option quantity measurement is deactivated (OHQM).
  • Page 14 BS Plus D e lt a S o l ® Channel Description Page Option collector cooling collector 1 OCX1 Option collector cooling collector 1 Maximum temperature collector 1 CMX1 Maximum temperature collector 1 Option minimum limitation collector 1 OCN1 Option minimum limitation collector 1 Minimun temperature collector 1 CMN1 Minimun temperature collector 1...
  • Page 15 BS Plus D e lt a S o l ® 4.1.1 Indication of collector temperatures Shows the current collector temperature. COL, COL1, COL2: Collector temperature • COL : collector temperature (1-collector system) display range: -40 ... +480°F • COL1 : collector temperature 1 •...

  • Page 16: Display Channels

    BS Plus D e lt a S o l ® 4.1.6 Operating hours counter h P / h P1 / h P2: The operating hours counter accumulates the solar opera- Operating hours counter ting hours of the respective relay (h P / h P1 / h P2). Full Display channel hours are displayed.
  • Page 17 BS Plus D e lt a S o l ® 4.1.8 ∆T -regulation DT O / DT1O / DT2O / First the controller works as a standard differential controller. DT3O: If the switch-on difference (DT O / DT1O / DT2O) is Switch on temperature diff.
  • Page 18 BS Plus D e lt a S o l ® 4.1.11 Collector temperature limitation If the adjusted collector emergency shutdown temperature Emergency shutdown of the collector (EM / EM1 / EM2) is exceeded, the controller switches off the solar pump (R1 / R2) in order to protect the system EM / EM1 / EM2: against overheating (collector emergency shutdown).
  • Page 19 BS Plus D e lt a S o l ® 4.1.15 Tank sequence control Corresponding adjustment values: Factory setting Adjustment range priority [PRIO] (1 / Arr 5,6) (2 / Arr 4) break-time [tST] 2 min. 1-30 min. loading runtime [tRUN] 15 min.
  • Page 20 BS Plus D e lt a S o l ® 4.1.18 Thermostat function (Arr = 3) The thermostat function works independently from the Afterheating Use of surplus energy solar operation and can be used for using surplus energy or for after-heating. •...

  • Page 21: Troubleshooting

    ® 5. Troubleshooting fuse In the case of an error, a message is shown on the display of the controller: DE - 45527 Hattingen DeltaSol BS Plus 115 V~ Warning symbol CU 72060171 01 2 (1) A 115 UL 60730-1A:2002 CSA E60730.1:2002...

  • Page 22: Various

    BS Plus D e lt a S o l ® 5.1Various: Pump is overheated, but no heat transfer from the colle- Pump starts for a short moment, switches-off, switches-on ctor to the tank, flow and return have the same tempera- again, etc.
  • Page 23 BS Plus D e lt a S o l ® Tanks cool down at night Control the non-return Further pumps which are valve in warm water cir- connected to the solar culation - o.k. tank must also be che- cked. Collector circuit pump runs in the night? Clean or replace it...

  • Page 24: Accessories

    As faults can never be excluded, please note: Your own calculations and plans, under con sider- the approval of RESOL - Elektronische Regelungen GmbH. ation of the current standards should only be basis for your This especially applies for copies, translations, micro- projects.
