3. Install Outside Trim Plate Assembly

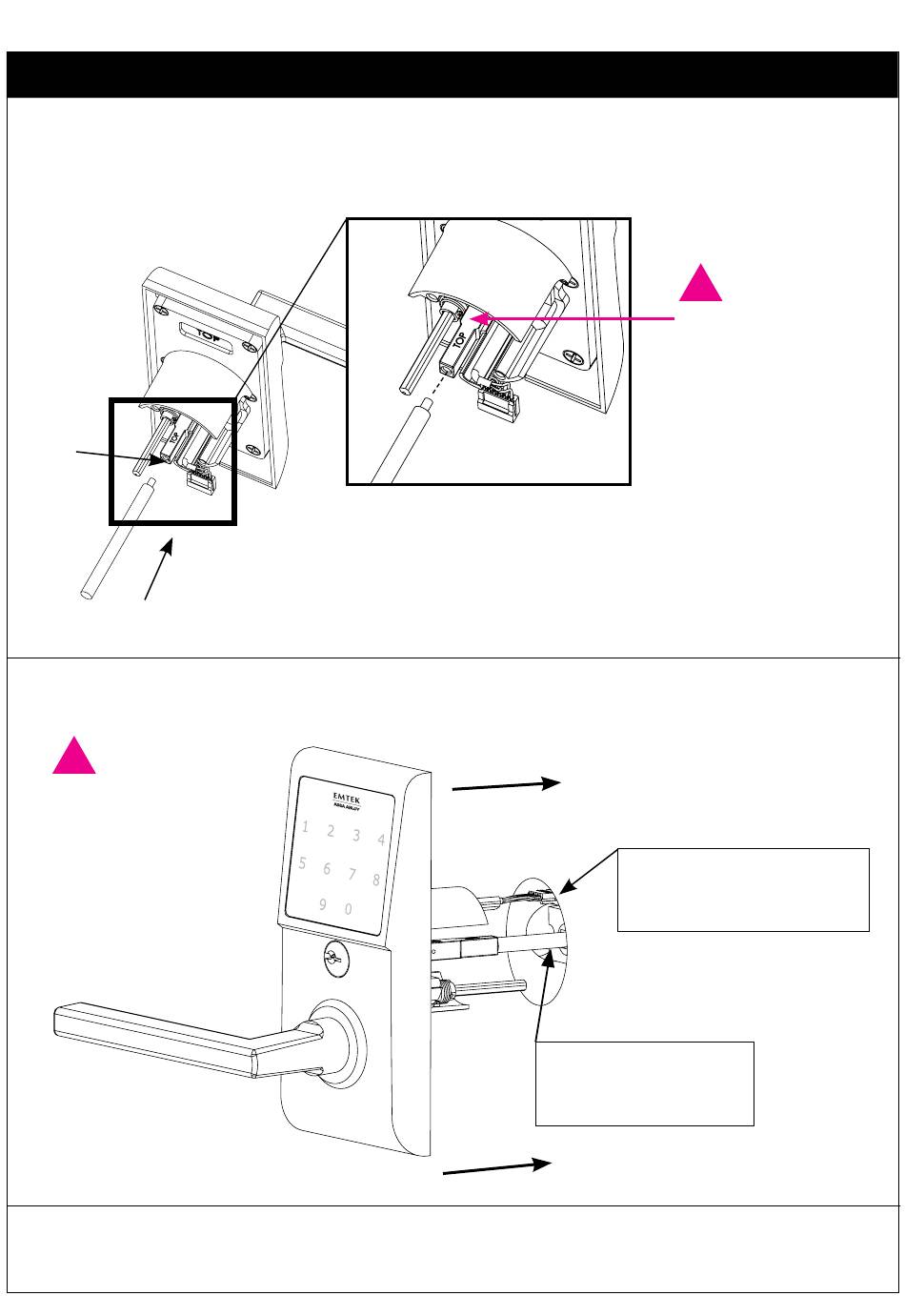

Step 1: While holding Outside Trim Plate Assembly, Press the Plastic Extender (A) into
end of Spindle Shaft (B). The Shaft is properly aligned when the marking 'TOP' can be
seen from an overhead view.
B
A
Step 2: Position the Outside Trim Plate Assembly through the bore hole.
!
ONCE POSITIONED,
OUTSIDE TRIM PLATE
ASSEMBLY REQUIRES
SUPPORT.
Step 3: With the Outside Trim Plate Assembly flush to the door, REMOVE the Plastic
Extender.
!
THIS SIDE ON TOP.
Feed wire harness
through the bore hole.
Fit Plastic Extender
through latch.
5
