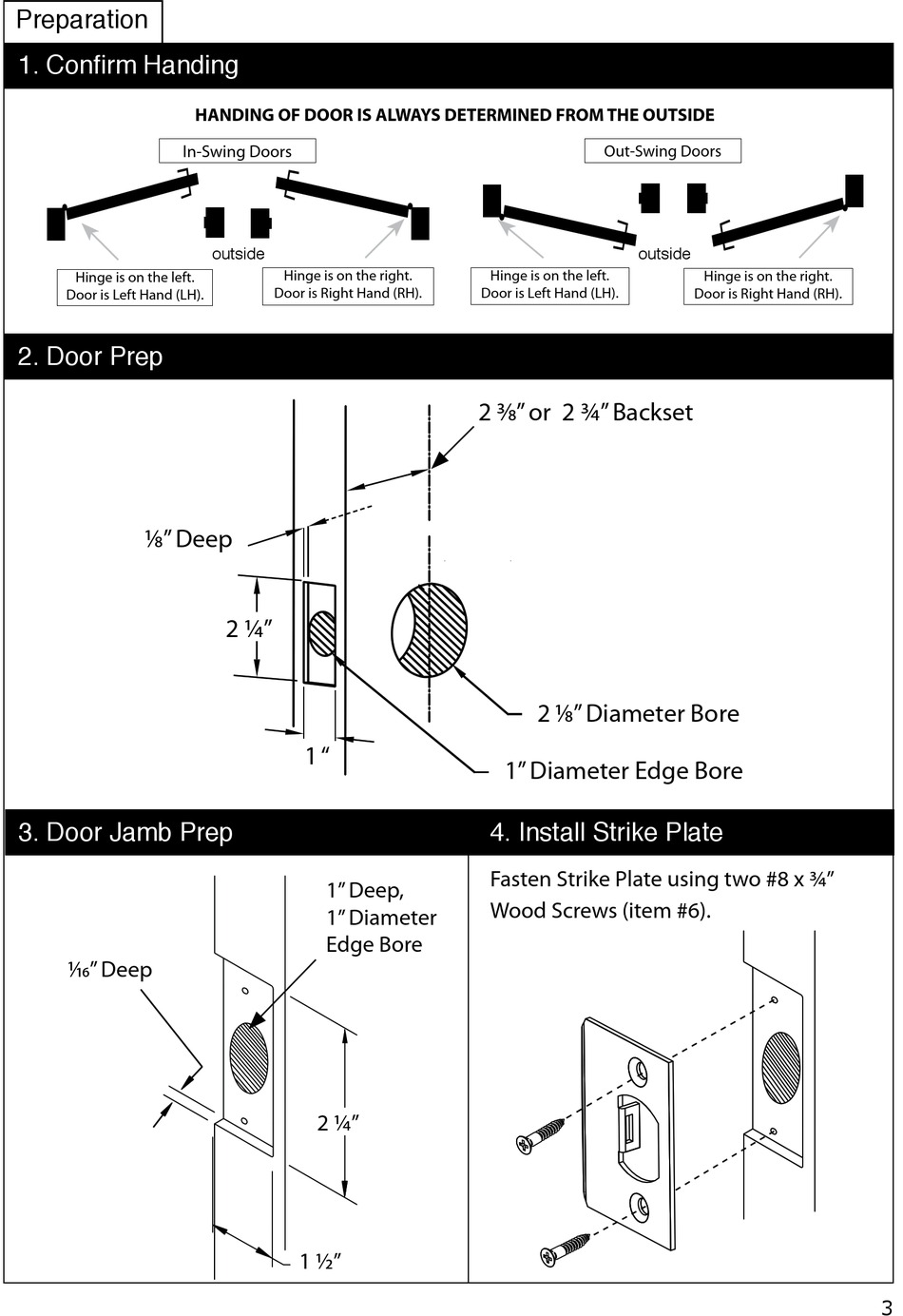

Preparation

1. Confirm Handing

In-Swing Doors
Hinge is on the left.
Door is Left Hand (LH).

2. Door Prep

1/8" Deep
3. Remove Screws from Inside Trim Plate

3. Door Jamb Prep

1/16" Deep
HANDING OF DOOR IS ALWAYS DETERMINED FROM THE OUTSIDE
outside
Hinge is on the right.
Door is Right Hand (RH).
2 1/4"
1 "
1" Deep,
1" Diameter
Edge Bore
2 1/4" 2-3/4"
1 1/2"
1-1/8"
Out-Swing Doors
outside
Hinge is on the left.
Door is Left Hand (LH).
2 3/8" or 2 3/4" Backset
2 1/8" Diameter Bore
1" Diameter Edge Bore
4. Install Strike Plate
Fasten Strike Plate using two #8 x 3/4"
Wood Screws (item #6).
Hinge is on the right.
Door is Right Hand (RH).
3
