How to Install

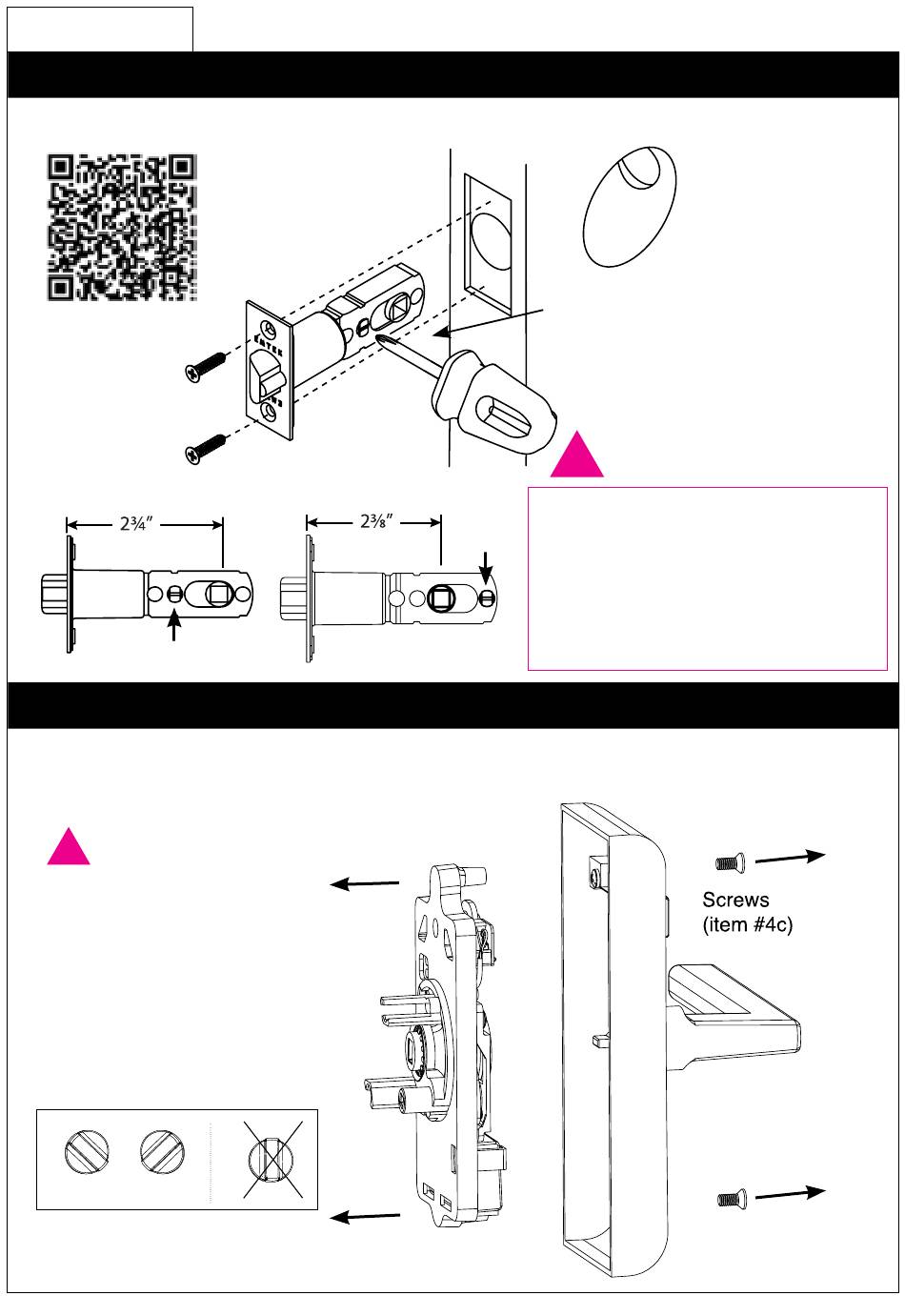

1. Install Adjustable Latch

Fasten Adjustable Latch using two #8 x 3/4" Wood Screws (item #6).
Scan QR code for
installation video
Plastic Latch Pin

2. Remove Screws from Inside Trim Plate

Use a Phillips head screwdriver to remove screws (item #4c) shown below and
detach Inside Trim Plate from the Inside Chassis.
!
REMOVE INSIDE
CHASSIS FROM
TRIM PLATE BEFORE
INSTALLING THE
OUTSIDE TRIM.
THUMBTURN MUST
BE IN NEUTRAL
POSITION.
LH RH
See Page 3 for Handing
Information.
4
To remove Pin:
Push Plastic Latch Pin (item #9)
through latch with screwdriver.
!
Plastic
The Adjustable Latch is factory
Latch
shipped with a 23/4" backset
Pin
position. Remove pin and slide
spindle hub forward for a 23/8"
backset, then reinsert the pin in
the hole at the back of the latch
as shown.
