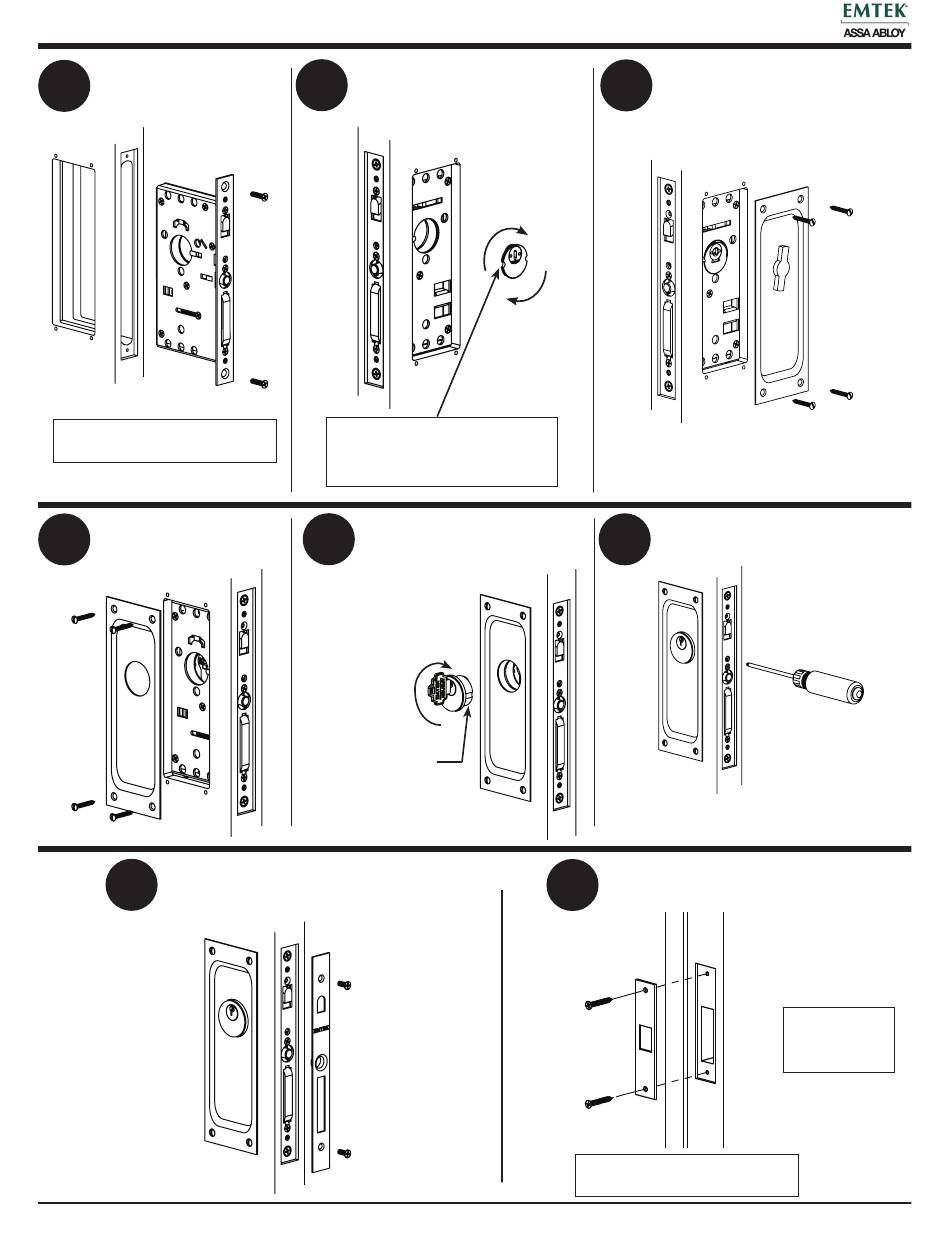

Installation Guide - Keyed Pocket Door Mortise Lock,
1
Install Lock Body
See template for door prep
specifications
4
Mount Outside Plate
7
Install Trim Plate
2
Install Drive Bar Cylinder
Note: Notch on cylinder must be
in the 9 o' clock position when
fully screwed into lock body.
5
Thread Key Cylinder
Install Key Cylinder by
threading it clockwise
onto lock body plate
Key Cylinder notch
must be at the 3 o'clock
position when fully
screwed in lock body.
Classic Trim
3
Mount Inside Plate
Inside
6
Tighten Drive Bar Cylinder
Tighten locking screw to engage
notch on cylinder
8
Install Door Jamb
See template for door jamb
prep specifications
IN4-POCKETMORTISEKYD REV. D
Drill two 7/64"
pilot holes
