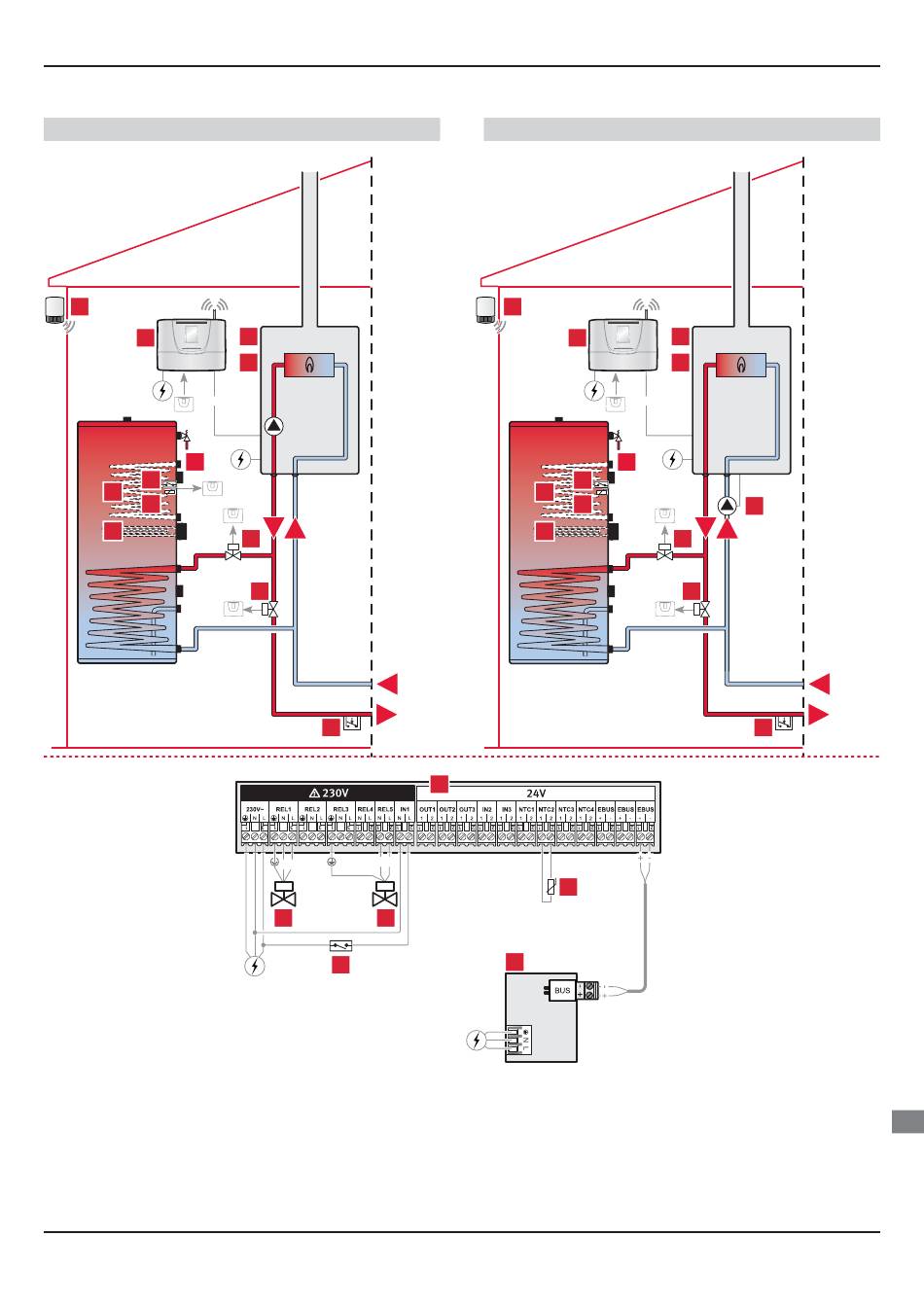

Example of installation with diagram 8 : eBUS boiler, one heating zone

EBus Boiler
4
2
EBUS
1
1.2
X
1.1
X
Key
1 DHW Cylinder available as option,
driven by NTC (1.1) or thermostat (1.2)
1.1 Temperature sensor 2K7 at 25°C
1.2 Thermostat
2 Systempro control unit
3 boiler
3.1 EBus boiler
3.2 EBus open vent boiler
4 Wireless outdoor sensor
5 2 port valve need with option "DHW cylinder"
6 Heating circuit 2 port valve (necessary for monozone heating)
7 Overheating safety (not supplied)
