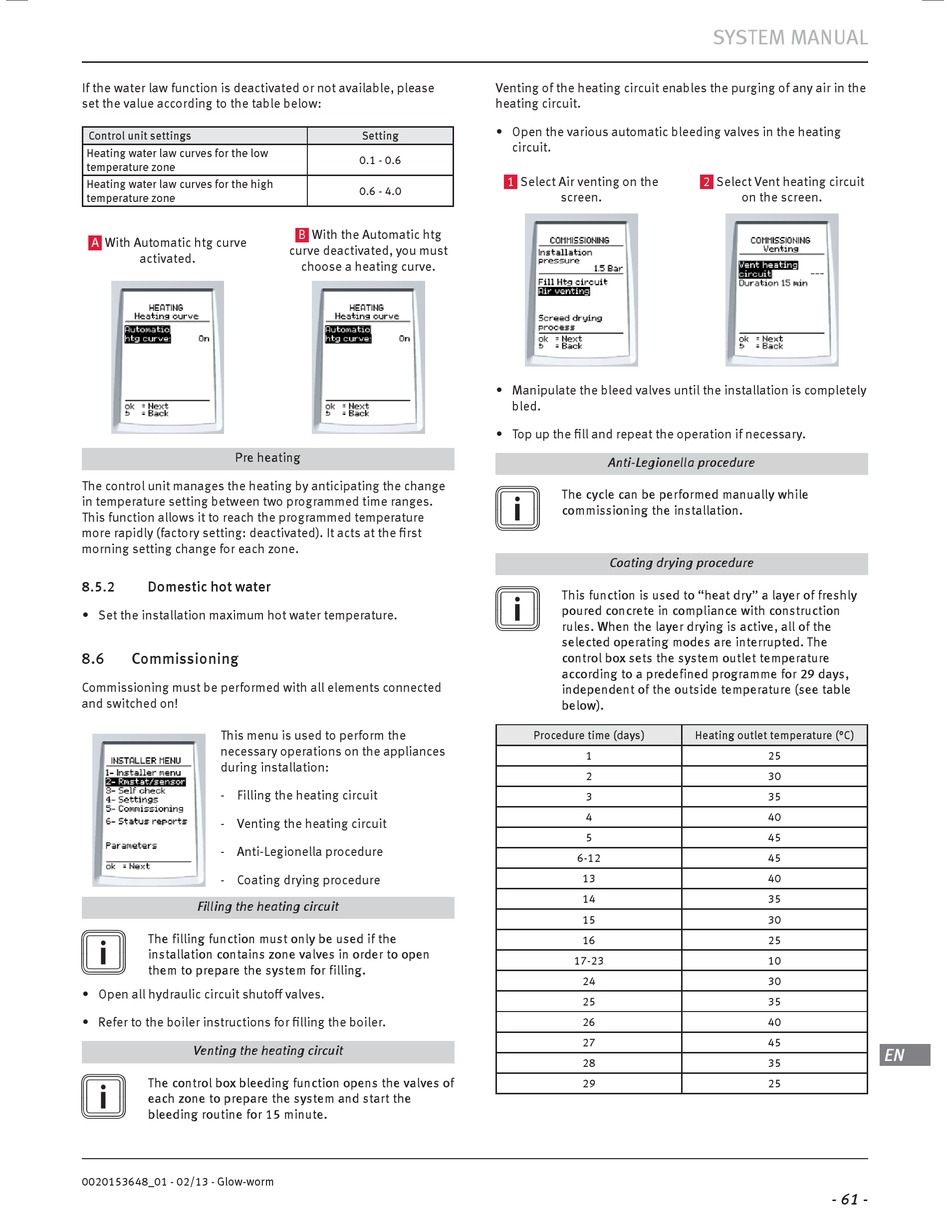

If the water law function is deactivated or not available, please
set the value according to the table below:
Control unit settings
Heating water law curves for the low
temperature zone
Heating water law curves for the high
temperature zone
A
With Automatic htg curve
activated.
Pre heating
The control unit manages the heating by anticipating the change
in temperature setting between two programmed time ranges.
This function allows it to reach the programmed temperature
more rapidly (factory setting: deactivated). It acts at the fi rst
morning setting change for each zone.
8.5.2
Domestic hot water
∙ Set the installation maximum hot water temperature.
8.6
Commissioning
Commissioning must be performed with all elements connected
and switched on!
This menu is used to perform the
necessary operations on the appliances
during installation:
- Filling the heating circuit
- Venting the heating circuit
- Anti-Legionella procedure
- Coating drying procedure
Filling the heating circuit
The filling function must only be used if the
i
installation contains zone valves in order to open
them to prepare the system for filling.
∙ Open all hydraulic circuit shutoff valves.
∙ Refer to the boiler instructions for fi lling the boiler.
Venting the heating circuit
The control box bleeding function opens the valves of
i
each zone to prepare the system and start the
bleeding routine for 15 minute.
0020153648_01 - 02/13 - Glow-worm
Setting
0.1 - 0.6
0.6 - 4.0
B
With the Automatic htg
curve deactivated, you must
choose a heating curve.
Venting of the heating circuit enables the purging of any air in the
heating circuit.
∙ Open the various automatic bleeding valves in the heating
circuit.
1
Select Air venting on the
screen.
∙ Manipulate the bleed valves until the installation is completely
bled.
∙ Top up the fi ll and repeat the operation if necessary.
Anti-Legionella procedure
The cycle can be performed manually while
i
commissioning the installation.
Coating drying procedure
This function is used to "heat dry" a layer of freshly
i
poured concrete in compliance with construction
rules. When the layer drying is active, all of the
selected operating modes are interrupted. The
control box sets the system outlet temperature
according to a predefined programme for 29 days,
independent of the outside temperature (see table
below).
Procedure time (days)
1
2
3
4
5
6-12
13
14
15
16
17-23
24
25
26
27
28
29
SYSTEM MANUAL
2
Select Vent heating circuit
on the screen.
Heating outlet temperature (°C)
25
30
35
40
45
45
40
35
30
25
10
30
35
40
45
35
25
- 61 -
EN
