Site Supervisor Controller
Quick Setup Guide
The Site Supervisor is a system that combines energy management with the ability to monitor
various facility systems and provide alerts when there are issues that need attention. This
system provides HVAC control, Refrigeration System Monitoring and Control, as well as
Lighting Control. In addition, the Site Supervisor can monitor and report energy consumption
and take action to reduce the energy demand during peak periods. This can have a direct
impact on utility bills by reducing total energy costs. Site Supervisor ensures that the HVAC and
lighting systems are on and off at the appropriate times. This ability to monitor store conditions
can potentially minimize energy consumption.
For a copy of the full Site Supervisor Guide (P/N 026-1800), vist the Site Supervisor page on the
Emerson website: http://climate.emerson.com/en-us/products/controls-monitoring-
systems/facility-controls-electronics/facility-and-system-controls/site-supervisor-
facility-control to download or contact Emerson Electronics and Solutions Customer Service at
770-425-2724.
Ethernet Connection
1.
ETH1 is designed to be used for directly connecting to laptop, PC, or optional
touchscreen with a CAT5 network cable.
2.
The default IP for ETH1 is 192.168.1.250.
3.
The optional Site Supervisor Display touchscreen default IP is 192.168.1.200 and will
connect automatically to the Site Supervisor when plugged into ETH1. It is recommended
that you do not change these defaults.
4.
ETH0 should be reserved for the secure network connections: store or corporate
networks. Ask your network administrator for the correct network IP address for ETH0.
5.
ETH0 and ETH1 are physically separated for added security. Directly connecting to ETH1
will not access the secure network connection on ETH0.
Document Part # 026-4144 Rev 8
©2018 Emerson Climate Technologies Retail Solutions, Inc. This document may be photocopied for personal use.
Visit our website at http://www.emerson.com for the latest technical documentation and updates.

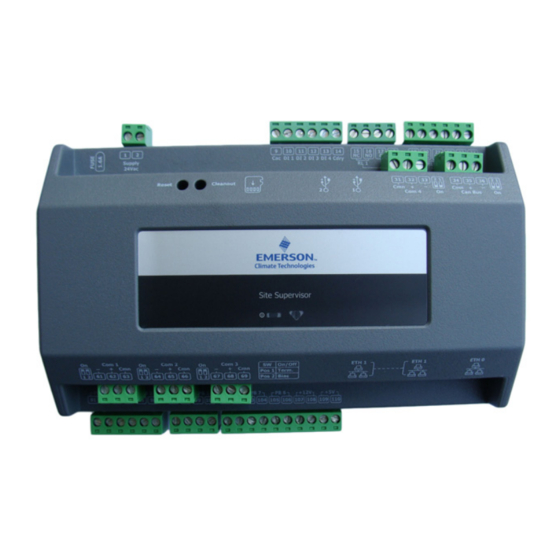

Fi
gure 1 - Site Supervisor
Figure 2 - Site Supervisor ETH 1 Ports
Figure 3 - Site Supervisor ETH 0 Port
Page 1 of 10

Advertisement

Table of Contents
loading

Related Manuals for Emerson Site Supervisor

Summary of Contents for Emerson Site Supervisor

  • Page 1 This ability to monitor store conditions can potentially minimize energy consumption. For a copy of the full Site Supervisor Guide (P/N 026-1800), vist the Site Supervisor page on the Emerson website: http://climate.emerson.com/en-us/products/controls-monitoring-...
  • Page 2 Figure 5 - Highlight Internet Protocol Version 4 (TCP/IPv4) Document Part # 026-4144 Rev 8 Page 2 of 10 ©2018 Emerson Climate Technologies Retail Solutions, Inc. This document may be photocopied for personal use. Visit our website at http://www.emerson.com for the latest technical documentation and updates.
  • Page 3 Figure 7 - Login Screen at Controller Startup and Update Password Document Part # 026-4144 Rev 8 Page 3 of 10 ©2018 Emerson Climate Technologies Retail Solutions, Inc. This document may be photocopied for personal use. Visit our website at http://www.emerson.com for the latest technical documentation and updates.

  • Page 4: How To Change The Ip Address

    Create a “network.txt” with your desired settings (Figure 7): Figure 9 - Network.txt Notepad Save to the root folder of a thumb drive. Insert the thumb drive into the USB port of Site Supervisor. Power cycle the Site Supervisor. The new IP Address will be saved.

  • Page 5: Setup Wizard

    Note that if setpoints have been pre-loaded in the unit, the Setup Wizard will not auto-start after logging in. If your unit has been received directly from the Emerson factory, the Setup Wizard will open and take you through the following setup screens:...
  • Page 6 Figure 12 - Network Settings Document Part # 026-4144 Rev 8 Page 6 of 10 ©2018 Emerson Climate Technologies Retail Solutions, Inc. This document may be photocopied for personal use. Visit our website at http://www.emerson.com for the latest technical documentation and updates.

  • Page 7: Basic Navigation

    Basic Navigation For every Site Supervisor screen, the Main Menu, Home, Back Arrow, Control Inventory, and Schedules/Events icons appear at the first row of top of the screen. A screen title also appears at the top left of the screen.

  • Page 8: Housing Dimensions And Mounting

    Figure 15 - Mounting Dimensions The Site Supervisor can be mounted to standard 35mm DIN Rail. Snap the orange tabs on the back of the unit to the down position to fasten. If not using the DIN Rail mounting option, fasten to the mounting surface using the openings in the mounting tabs. Pull the four orange mounting tabs out until they lock, which will expose the mounting holes.

  • Page 9: Wiring Diagram

    Figure 16 - Site Supervisor Wiring Diagram Document Part # 026-4144 Rev 8 Page 9 of 10 ©2018 Emerson Climate Technologies Retail Solutions, Inc. This document may be photocopied for personal use. Visit our website at http://www.emerson.com for the latest technical documentation and updates.
  • Page 10 The contents of this publication are presented for informational purposes only and they are not to be construed as warranties or guarantees, express or implied, regarding the products or services described herein or their use or applicability. Emerson Climate Technologies Retail Solutions, Inc. and/or its affiliates (collectively “Emerson”), reserves the right to modify the designs or specifications of such products at any time without notice. Emerson does not assume responsibility for the selection, use or maintenance of any product.
