Instruction Manual
D103100X012
January 2022
Type SR8 Sanitary Backpressure Regulator
!
Failure to follow these instructions or
to properly install and maintain this
equipment could result in an explosion,
fire and/or chemical contamination
causing property damage and personal
injury or death.
Fisher™ backpressure regulators must
be installed, operated and maintained
in accordance with federal, state and
local codes, rules and regulations and
Emerson Process Management Regulator
Technologies, Inc. instructions.
If a leak develops or if the outlet
continually vents liquid, service to the
unit may be required. Failure to correct
trouble could result in a hazardous
condition. Only a qualified person must
install or service the unit.
Installation, operation and maintenance
procedures performed by unqualified
personnel may result in improper
adjustment and unsafe operation. Either
condition may result in equipment
damage or personal injury. Use qualified
personnel when installing, operating
and maintaining the Type SR8 Sanitary
backpressure regulator.
Introduction
Type SR8 self-contained backpressure regulators
are suitable for pressure control of steam, liquid
or gaseous service. Typical set points range from
2 to 125 psi / 0.2 to 8.6 bar. The regulator is designed
to meet sanitary application and material requirements.
WARNING
W8967

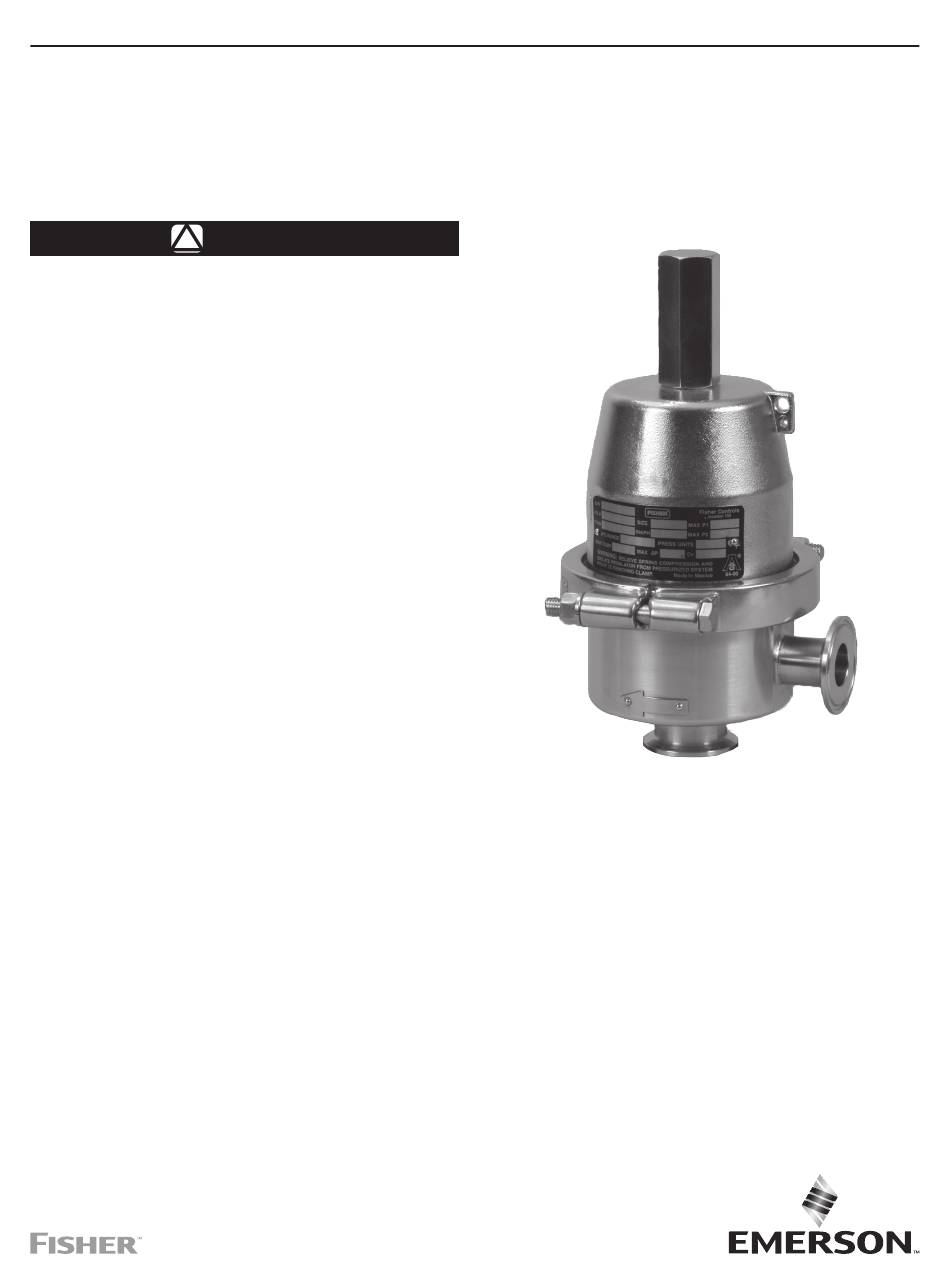

Figure 1. Type SR8
Scope of the Manual
This manual provides installation, startup,
maintenance and parts ordering information for the
Type SR8 Sanitary Backpressure Regulator.
Type SR8
