About This Manual - Tandberg Data DLT7000 Reference Manual

GB
Tandberg DLT7000 Front Panel
These control points on the DLT7000 front panel are for operating the drive (Figure 1):
2.6
6.0
10.0/
Density
15.0
Indicators
20.0
(Yellow)
35.0
Compress
Density
Override
Density
Select
Select
Push
Button
Operation Buttons / Handle
FUNCTION LOCATION
Density Select Lower Left
Unload Lower Right
Cartridge Insert/ Centre
Release Handle
Introduction

About This Manual

Use this manual as a quick reference when operating the Tandberg
DLT7000 tape drive in your system. For additional information, see the
Tandberg DLT7000 Tape Backup System Installation Guide.
Cartridge Door
Cartridge insert / release handle (down)

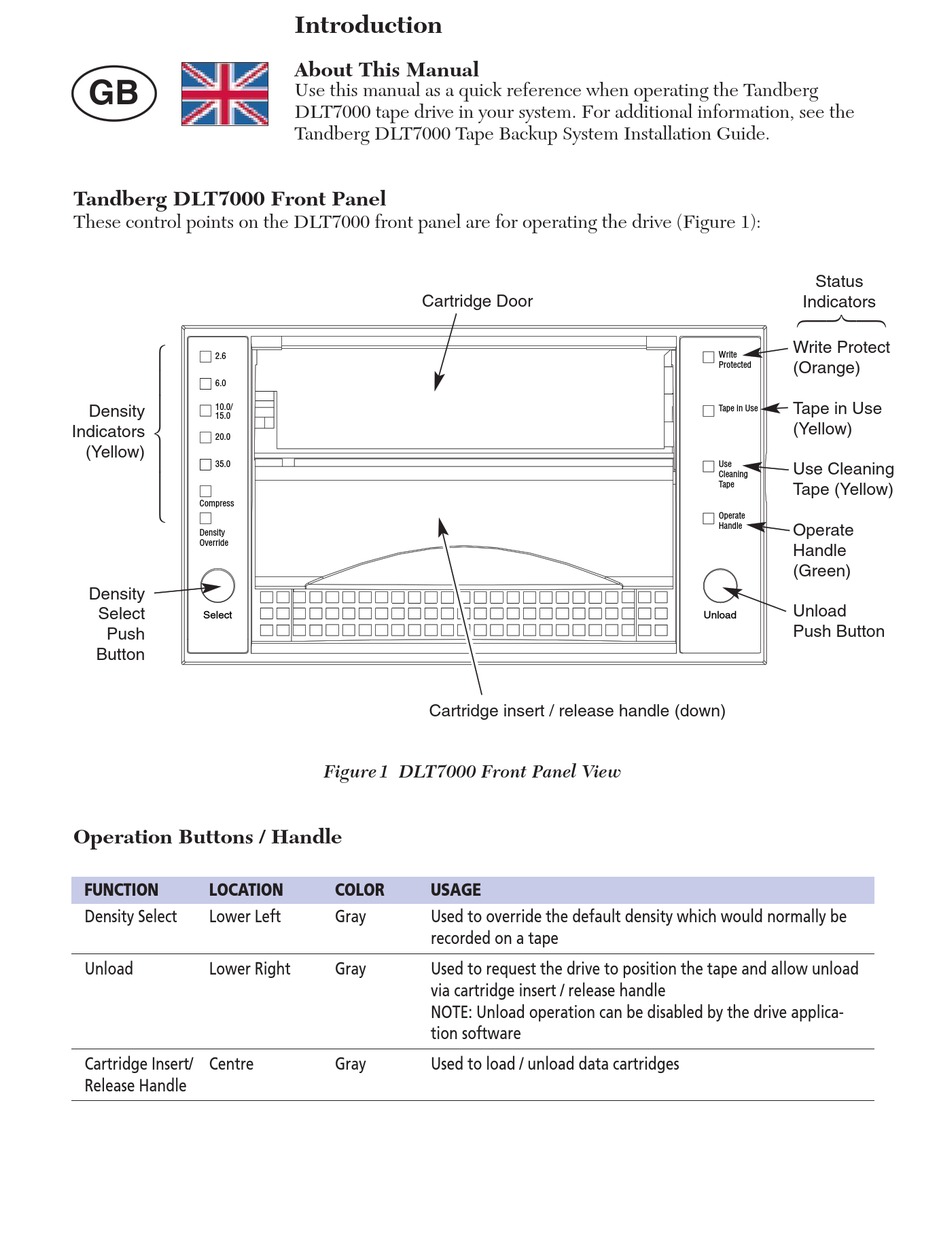

Figure 1 DLT7000 Front Panel View
COLOR USAGE
Gray Used to override the default density which would normally be
recorded on a tape
Gray Used to request the drive to position the tape and allow unload
via cartridge insert / release handle
NOTE: Unload operation can be disabled by the drive applica-
tion software
Gray Used to load / unload data cartridges
Status
Indicators
1 2 3
Write Protect
Write
Protected (Orange)
Tape in Use
Tape in Use
(Yellow)
Use
Use Cleaning
Cleaning
Tape
Tape (Yellow)
Operate
Handle
Operate
Handle
(Green)
Unload
Unload
Push Button
