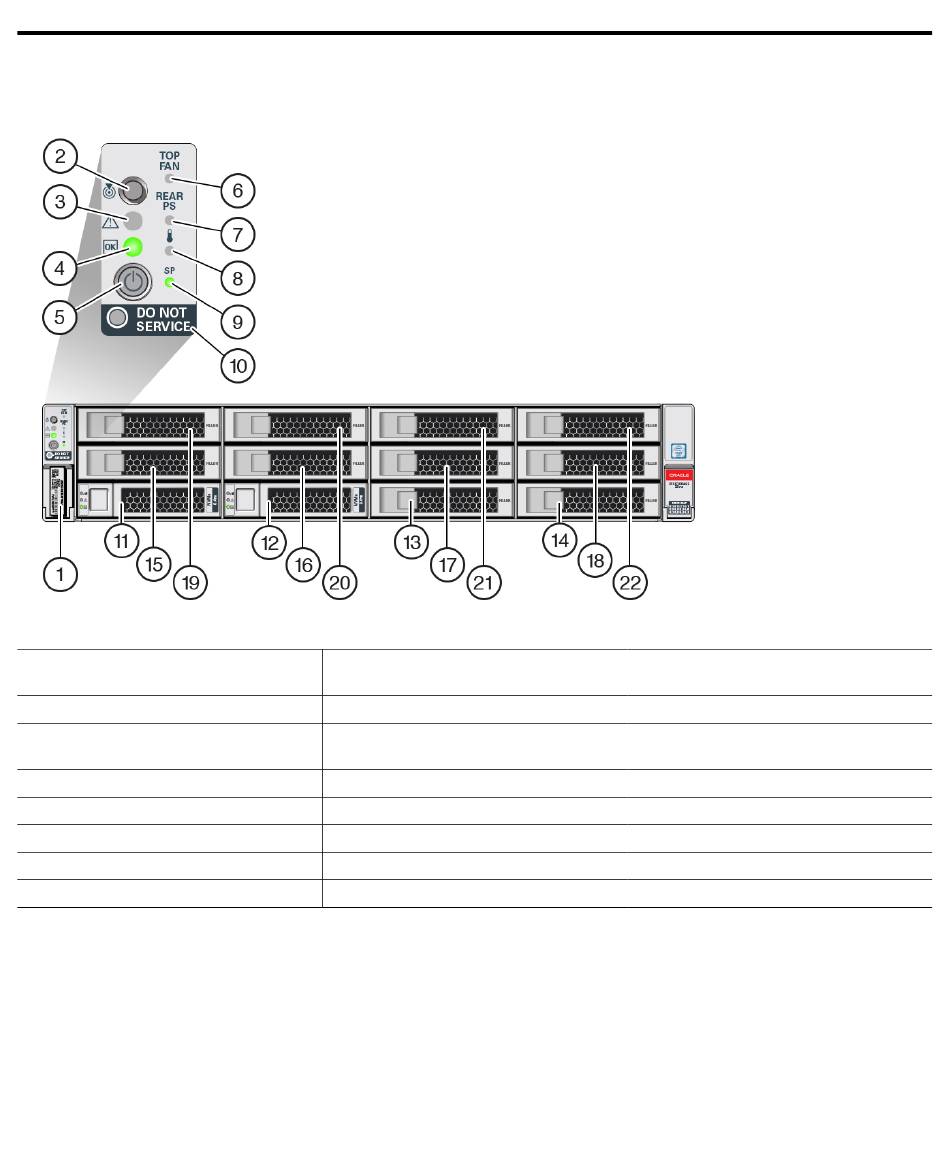

Front Panel Components

1 RFID tag
4 System status LED: Power/OK (green)
7 Power Supply (PS) service action required
(amber)
10 Do Not Service indicator
13 Filler panel
16 Filler panel
19 Filler panel
22 Filler panel
2 System status LED: Locator (white)
5 Power button
8 Over-temperature warning (amber)
11 System disk 0
14 Filler panel
17 Filler panel
20 Filler panel
3 System status LED: Service Action
Required (amber)
6 Fan service action required (amber)
9 Service Processor (SP) OK (green)
12 System disk 1
15 Filler panel
18 Filler panel
21 Filler panel
