Visonic DUO 220 Installation Instructions

DUO 220 / DUO 220 AM
Dual Technology Microwave/PIR Intrusion Detectors
1. INTRODUCTION
The DUO 220 (MW/PIR) and DUO 220AM (MW/PIR/anti-
masking) are state-of-the-art, microcomputer controlled dual-
technology intrusion detectors. The PIR and MW technologies,
when combined in a single detector, complement each other to
assure the most reliable detection and immunity to false alarms.
The superiority of the DUO 220 series over other dual detectors
has been achieved by the advent of the True Motion
Recognition™ algorithm (patented). This advanced motion
analysis method provides the DUO 220 with the ability to
distinguish between the true motion of a human body and any
other disturbances which invariably cause false alarms.
Another unique feature of the DUO 220 is the MW Motion
Simulator circuit (patents applied for), that simulates the effect
created by a human body moving in the MW field. The simulation
routine is carried out periodically for self-testing, supervision and
assurance that the MW detector operates properly.
In addition, the pyroelectric sensor and its circuitry are tested at
regular intervals by application of a short-duration heat pulse. If they
do not react properly, a trouble alert is initiated.
2. SPECIFICATIONS
GENERAL
Input Voltage: 9 to 16 VDC
Current Drain: About 26 mA @ 12 VDC
Masking Detection Delay (DUO-220 AM): About 60 seconds
PIR SECTION
Lens Data: 34 beams, 90° field of view
Max. Coverage: 12 x 12 m (40 x 40 ft)
Vertical Adjustment: +2° to –12°, with a vertical adjustment scale
Detector: Low noise dual-element pyroelectric sensor
Trip Indication: Green LED flashes for up to 5 seconds
True Motion Verification: Selectable, 1 or 2 motion events
MW SECTION
Oscillator: Microstrip DRO-stabilized type
Frequency (GHz): 2.45
Detection Range: Adjustable from 25% to 100% (3 m to 12 m)
Trip Indication: Green LED illuminates for up to 5 seconds
ALARM, TAMPER & TROUBLE DATA
Alarm Indication: Red LED illuminates for 2-3 seconds if both
detectors trip
Relay Contacts: Normally closed, 0.1 A resistive / 30 VDC; 18Ω
resistor in series with contacts
Alarm Duration: 2-3 seconds (red LED lights and output relay
contacts open)
Tamper Switch Contacts: N.C., 50 mA resistive /30 VDC
3. INSTALLATION
3.1 General Guidelines
A few important rules must be observed before selecting a
mounting location.
•
Microwave radiation passes through glass and non-metallic
walls. Be sure to adjust the MW range so that it does not
exceed the room limits, or else a rotating ceiling fan in the next
room, or moving traffic along the outer side of the wall will
cause the MW detector to alarm.
•
Large reflecting objects (especially metals) within the coverage
area can distort the microwave detector's coverage pattern.
DE1823
Installation Instructions
To complement the detection pattern provided by the front lens,
the DUO 220 is fitted with a down looking lens at the bottom part
of the front cover. The purpose of this lens is to prevent access to
the detector by sneaking below it.

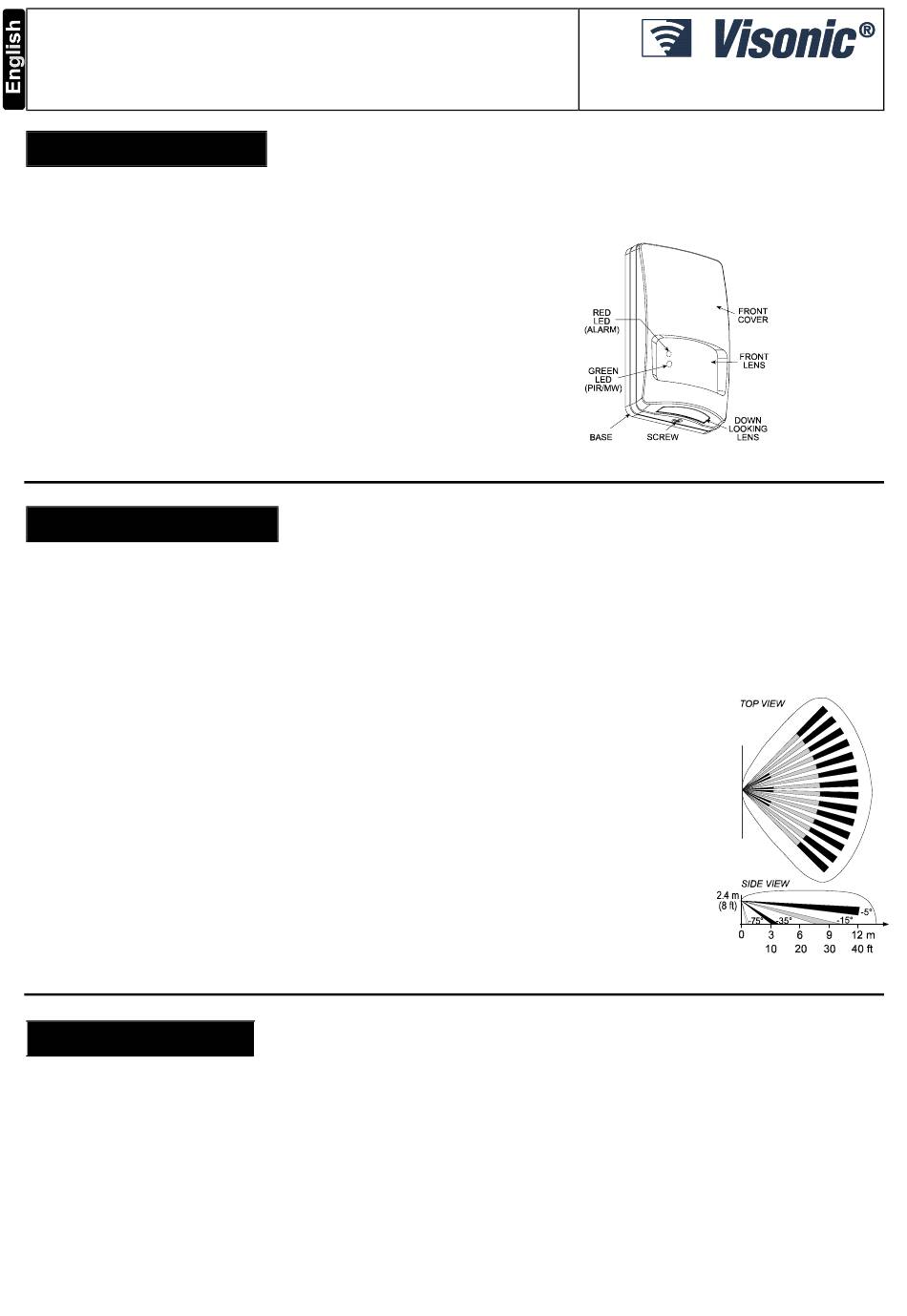

Figure 1. DUO 220 General View
Trouble Output: Open collector, 100 mA max.
Trouble/Masking Indication: LEDs flash alternately and TRB
output pulls LOW
PHYSICAL CHARACTERISTICS
Dimensions (H x W x D): 104 x 60 x 35 mm (2.4 x 4.1 x 1.38 in.)
Weight: 86 g (3 oz)
MOUNTING
Direct: Surface or corner (without brackets), up to 2.4 m (8 ft)
ACCESSORIES (see Fig. 4)
BR-1: Surface mounted
bracket, adjustable 30° down and
45° left/45° right.
BR-2: BR-1 with corner adapter (kit)
BR-3: BR-1 with ceiling adapter (kit)
ENVIRONMENTAL CONDITIONS
Operating Temperature:
–10°C to 50°C (14°F to 122°F)
Storage Temperature:
–20°C to 60°C (4°F to 140°F)
RFI Protection: >30 V/m (20 MHz
to 1000 MHz)
PATENTS: U.S. Patents 5,237,330
and 5,693,943; Des. 346,567
Compliance with Standards: EN
50131-1 Grade 2 Class II
•
Although the DUO 220 is extremely immune to false alarms, it
is recommended to avoid installation in a room with very strong
air turbulence or close to high-power electrical cables.
•
If two DUO 220 units are installed in the same room or on
opposite sides of a shared wall, they should not face each
other and must be mounted at least 2 meters apart.
•
For best performance at high ambient temperatures, aim the
unit towards the coolest place in the protected area.
•
Always mount the unit on a firm and stable surface at a height
that renders optimum coverage of the protected area.
swivel
Figure 2. PIR and MW
Coverage Pattern
1
