Visonic DISCOVERY QUAD MCW Installation Instructions

DISCOVERY QUAD MCW
Wireless PowerCode Quad PIR Detector

1. FEATURES

 Employs a real quad element low-noise pyroelectric sensor
 Includes a fully supervised PowerCode transmitter
 Patented sophisticated motion analysis algorithm - True Motion
Recognition (TMR™)
 Two-position vertical adjustment for coverage pattern
 Integral swivel bracket for wall or ceiling installation
 Programmable motion event counter - ON or OFF (default)
 Front and back tamper switches for improved tamper protection
 Full stabilization achieved 30 seconds after power up
 After detection, the detector disables itself to save battery
power. It reverts to the ready state if there is no subsequent
detection throughout the following 2-minute period

2. SPECIFICATIONS

OPTICAL
Detector Type: Quad element low-noise pyroelectric sensor.
Detection Pattern: 90° wide angle lens with 19 quad zones in 3
detection layers. Max. coverage is 15 x 15 m (50 x 50 ft).
Adjustment: 2-position vertical adjustment scale: FAR and NEAR.

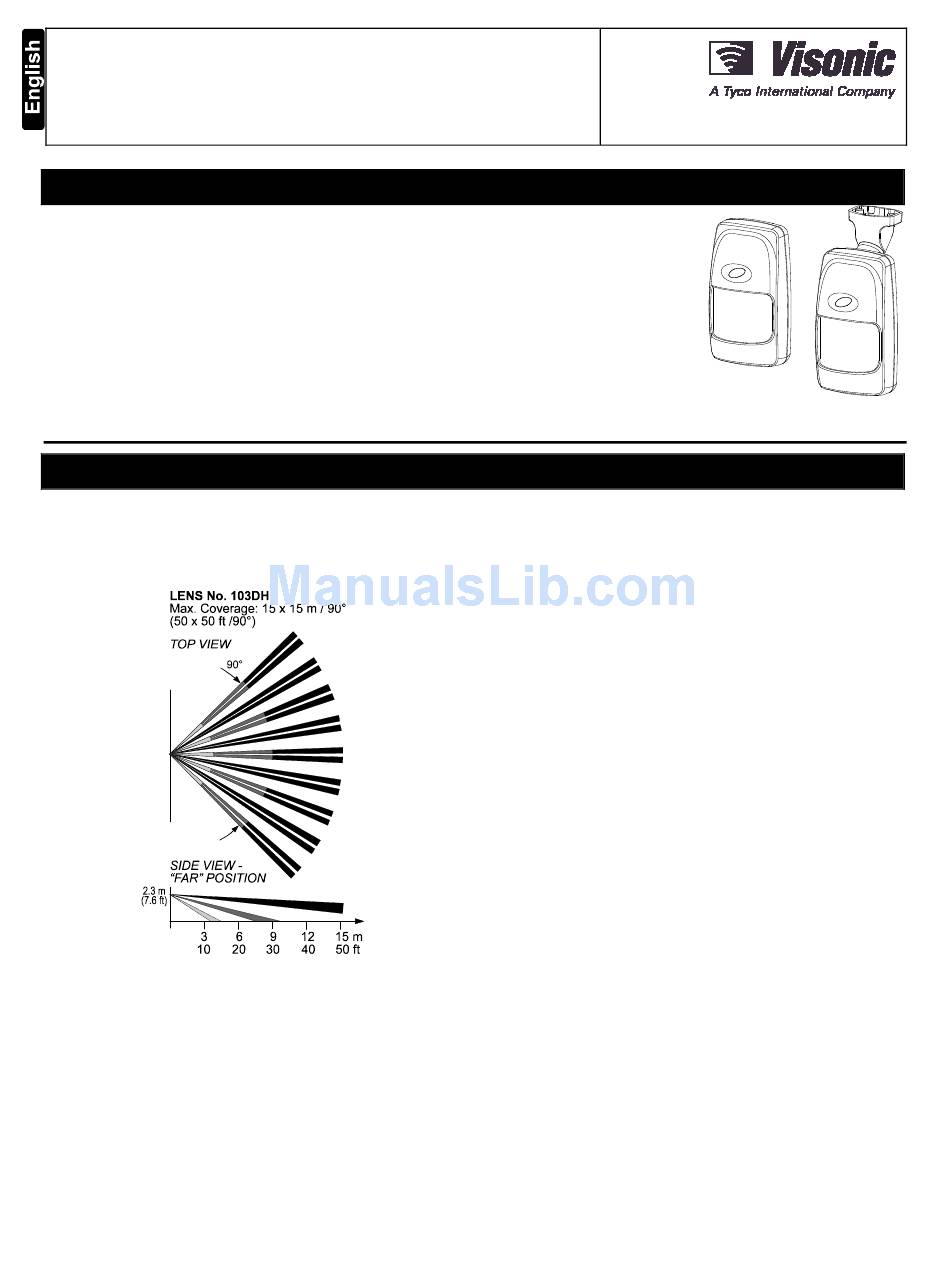

Figure 2. Coverage Pattern
ELECTRICAL
Internal Battery: 3 V Lithium battery, Panasonic CR-2 or
equivalent
Nominal Battery Capacity: 750 mAh
Standby Current Drain: 0.015 mA
Transmit Current Drain: 20 mA (including LED)
Battery Life Expectancy: 3 years (for typical use)
Battery Supervision: Automatic reporting of battery status with
each alarm and with periodic supervision message.
FUNCTIONAL
True Motion Event Verification: 2 position selector - 1 (OFF) or
2 (ON) motion events.
Alarm Period: 3 seconds.
DE3633 DISCOVERY QUAD MCW Installation Instructions
Installation Instructions
Automatic termination of
walk-test after 15 minutes
Low current consumption
Microprocessor-controlled
temperature compensation
Sealed chamber protects the
optical system
White light protection
Elegantly styled, sturdy case
Keyhole-shaped slot for easy
removal of PCB
Visual Indications:
LED lights for about 3 seconds upon transmission of alarm &
tamper messages and upon each motion detection in the walk
test mode.
LED flashes during the power-up stabilization period, or after
restoring (pressing) the tamper switch.
LED does not light upon transmission of supervision messages.
Rearm Timer: Rearms the detector 2 minutes after the last alarm.
Timer disabled in the walk test mode.
WIRELESS
Frequency (MHz): 315, 433.92, 868.95, 869.2625 or other
frequencies according to local requirements.
Transmission Sequence: 3 data bursts at variable intervals
within 3 seconds.
Encoding: 24-bit ID, over 16 million possible combinations.
Total Message Length: 36 bits.
Tamper Alert: Reported when a tamper event occurs and in any
subsequent message, until the tamper switch is restored.
Supervision Message: Once per 15 minutes, 60 minutes or
according to local standards.
MOUNTING
Height:
With bracket : Up to 3.6 m (12 ft)
Without bracket: 2 - 2.6 m (6.5 - 8.5 ft)
Installation Options:
With bracket: Surface or ceiling
Without bracket: Surface or corner
Bracket Adjustment: 20° downward, 20° left and right.
ENVIRONMENTAL
RFI Protection: >30 V/m up to 1000 MHz.
Operating Temperatures: -10°C to 50°C (14°F to 122°F).
Storage Temperatures: -20°C to 60°C (-4°F to 140°F).
Compliance with Standards: Designed to comply with FCC Part
15 and Directive 1999/5/EC of the European Parliament.
PHYSICAL
Dimensions (H x W x D): 117 x 65 x 47 mm.
(4-5/8 x 2-9/16 x 1-7/8 in.).
Weight: 92 g (3.25 oz) without bracket, 107 g (3.75 oz) with bracket.
Color: White
PATENTS: U.S. Patent No. 5,693,943
Figure 1. External View
