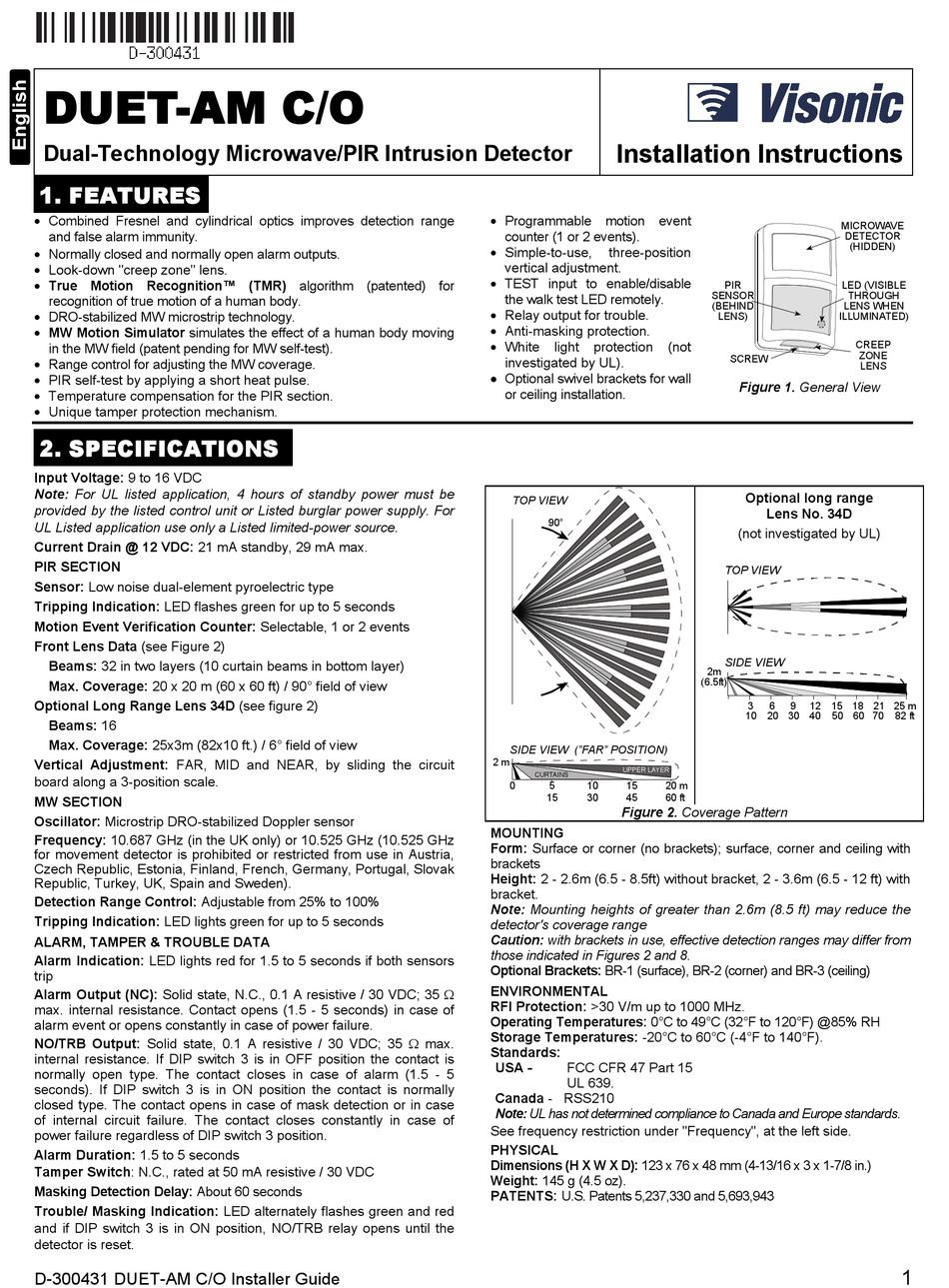

Visonic DUET-AM C/O Installer's Manual

DUET-AM C/O
Dual-Technology Microwave/PIR Intrusion Detector
1. FEATURES
 Combined Fresnel and cylindrical optics improves detection range
and false alarm immunity.
 Normally closed and normally open alarm outputs.
 Look-down "creep zone" lens.
 True Motion Recognition™ (TMR) algorithm (patented) for
recognition of true motion of a human body.
 DRO-stabilized MW microstrip technology.
 MW Motion Simulator simulates the effect of a human body moving
in the MW field (patent pending for MW self-test).
 Range control for adjusting the MW coverage.
 PIR self-test by applying a short heat pulse.
 Temperature compensation for the PIR section.
 Unique tamper protection mechanism.
2. SPECIFICATIONS
Input Voltage: 9 to 16 VDC
Note: For UL listed application, 4 hours of standby power must be
provided by the listed control unit or Listed burglar power supply. For
UL Listed application use only a Listed limited-power source.
Current Drain @ 12 VDC: 21 mA standby, 29 mA max.
PIR SECTION
Sensor: Low noise dual-element pyroelectric type
Tripping Indication: LED flashes green for up to 5 seconds
Motion Event Verification Counter: Selectable, 1 or 2 events
Front Lens Data (see Figure 2)
Beams: 32 in two layers (10 curtain beams in bottom layer)
Max. Coverage: 20 x 20 m (60 x 60 ft) / 90° field of view
Optional Long Range Lens 34D (see figure 2)
Beams: 16
Max. Coverage: 25x3m (82x10 ft.) / 6° field of view
Vertical Adjustment: FAR, MID and NEAR, by sliding the circuit
board along a 3-position scale.
MW SECTION
Oscillator: Microstrip DRO-stabilized Doppler sensor
Frequency: 10.687 GHz (in the UK only) or 10.525 GHz (10.525 GHz
for movement detector is prohibited or restricted from use in Austria,
Czech Republic, Estonia, Finland, French, Germany, Portugal, Slovak
Republic, Turkey, UK, Spain and Sweden).
Detection Range Control: Adjustable from 25% to 100%
Tripping Indication: LED lights green for up to 5 seconds
ALARM, TAMPER & TROUBLE DATA
Alarm Indication: LED lights red for 1.5 to 5 seconds if both sensors
trip
Alarm Output (NC): Solid state, N.C., 0.1 A resistive / 30 VDC; 35 
max. internal resistance. Contact opens (1.5 - 5 seconds) in case of
alarm event or opens constantly in case of power failure.
NO/TRB Output: Solid state, 0.1 A resistive / 30 VDC; 35  max.
internal resistance. If DIP switch 3 is in OFF position the contact is
normally open type. The contact closes in case of alarm (1.5 - 5
seconds). If DIP switch 3 is in ON position the contact is normally
closed type. The contact opens in case of mask detection or in case
of internal circuit failure. The contact closes constantly in case of
power failure regardless of DIP switch 3 position.
Alarm Duration: 1.5 to 5 seconds
Tamper Switch: N.C., rated at 50 mA resistive / 30 VDC
Masking Detection Delay: About 60 seconds
Trouble/ Masking Indication: LED alternately flashes green and red
and if DIP switch 3 is in ON position, NO/TRB relay opens until the
detector is reset.
D-300431 DUET-AM C/O Installer Guide
Installation Instructions
 Programmable motion event
counter (1 or 2 events).
 Simple-to-use,
three-position
vertical adjustment.
 TEST input to enable/disable
the walk test LED remotely.
 Relay output for trouble.
 Anti-masking protection.
 White
light protection (not
investigated by UL).

Optional swivel brackets for wall
or ceiling installation.
TOP VIEW
90°
SIDE VIEW ("FAR" POSITION)
2 m
UPPER LAYER
CURTAINS
0 5 10 15 20 m
15 30 45 60 ft
Figure 2. Coverage Pattern
MOUNTING
Form: Surface or corner (no brackets); surface, corner and ceiling with
brackets
Height: 2 - 2.6m (6.5 - 8.5ft) without bracket, 2 - 3.6m (6.5 - 12 ft) with
bracket.
Note: Mounting heights of greater than 2.6m (8.5 ft) may reduce the
detector's coverage range
Caution: with brackets in use, effective detection ranges may differ from
those indicated in Figures 2 and 8.
Optional Brackets: BR-1 (surface), BR-2 (corner) and BR-3 (ceiling)
ENVIRONMENTAL
RFI Protection: >30 V/m up to 1000 MHz.
Operating Temperatures: 0°C to 49°C (32°F to 120°F) @85% RH
Storage Temperatures: -20°C to 60°C (-4°F to 140°F).
Standards:
USA - FCC CFR 47 Part 15
UL 639.
Canada - RSS210
Note: UL has not determined compliance to Canada and Europe standards.
See frequency restriction under "Frequency", at the left side.
PHYSICAL
Dimensions (H X W X D): 123 x 76 x 48 mm (4-13/16 x 3 x 1-7/8 in.)
Weight: 145 g (4.5 oz).
PATENTS: U.S. Patents 5,237,330 and 5,693,943
MICROWAVE
DETECTOR
(HIDDEN)
PIR LED (VISIBLE
SENSOR THROUGH
(BEHIND LENS WHEN
LENS) ILLUMINATED)
CREEP
ZONE
SCREW
LENS
Figure 1. General View
Optional long range
Lens No. 34D
(not investigated by UL)
TOP VIEW
SIDE VIEW
2m
(6.5ft)
3 6 9 12 15 18 21
10 20 30 40 50 60 70
25 m
82 ft
