Wireless Nd1 Router User Guide

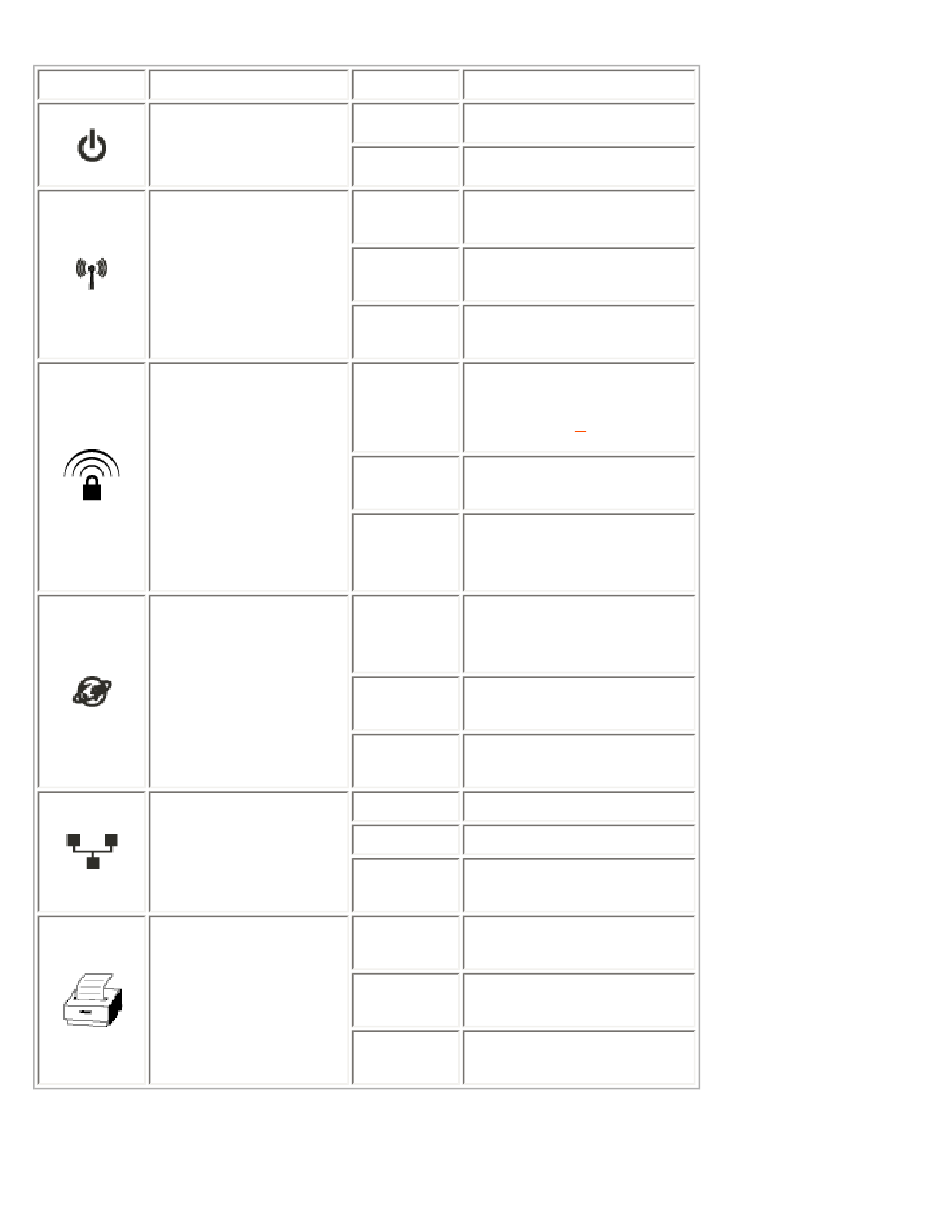

Symbol Name
Power
WLAN
SecureEasySetup
WAN
LAN
1 to 4
Printer
file:///G|/CSO/Documentation/Documentation%20-%20Dra...64%20Mach-1%20Router/User%20Guide/English/index.html (3 of 5)9/14/2006 2:44:12 PM
State Condition
Off Not receiving power.
Solid Receiving power.
Wireless connection
Off
is disabled.
Wireless connection
Solid
is enabled.
Sending and
Flashing
receiving data.
SecureEasySetup
mode is not ready on
Off
the router.
SecureEasySetup
Solid
mode is ready.
Communicating with
Blinking SecureEasySetup
devices.
No Internet
Off connection is
established.
Sending and
Flashing
receiving data.
Internet Connection
Solid
is established.
Off No LAN connection.
Solid LAN link is achieved.
Sending and
Flashing
receiving data.
No printer connection
Off
is detected.
Printer connection is
Solid
detected.
Sending data to
Flashing
printer.
