Wayne EEAUP250 Operating Instructions And Parts Manual

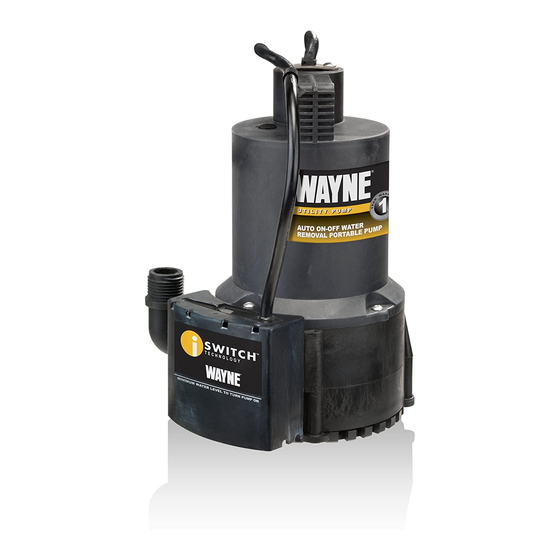

Auto on-off water removal portable pump
Hide thumbs Also See for EEAUP250:
Table of Contents

Advertisement

Quick Links

Operating Instructions and Parts Manual
SPECIFICATIONS
POWER SUPPLY REQUIREMENTS
MOTOR
HORSEPOWER
CIRCUIT REQUIREMENT
LIQUID TEMPERATURE RANGE
© 2018, WAYNE/Scott Fetzer Company.
Auto On-Off Water Removal Portable Pump
Please read and save these instructions. Read carefully before attempting to assemble, install,
operate or maintain the product described. Protect yourself and others by observing all safety
information. Failure to comply with instructions could result in personal injury and/or property
damage! Retain instructions for future reference.
120 V, 60 Hz, Permanent
Single Phase
1/4 HP
15 A (minimum)
40° F- 120° F
PERFORMANCE
Model
HP
Discharge
EEAUP250
1/4
Gal/hr
CONSTRUCTION
MOTOR HOUSING
MOTOR SHAFT
IMPELLER
VOLUTE
PUMP DISCHARGE
0 ft.
5 ft.
10 ft.
3100
2350
1600
www.waynepumps.com
EEAUP250
Thermoplastic
Thermoplastic
Thermoplastic
Stainless Steel
1-1/4 in. NPT or 3/4 in. Hose Threads
15 ft.
20 ft.
900
250
620005-001 B 08/18

Advertisement

Table of Contents
loading

Related Manuals for Wayne EEAUP250

Summary of Contents for Wayne EEAUP250

  • Page 1 40° F- 120° F PUMP DISCHARGE 1-1/4 in. NPT or 3/4 in. Hose Threads PERFORMANCE Model Discharge 0 ft. 5 ft. 10 ft. 15 ft. 20 ft. EEAUP250 Gal/hr 3100 2350 1600 © 2018, WAYNE/Scott Fetzer Company. www.waynepumps.com 620005-001 B 08/18...

  • Page 2: General Safety Information

    Operating Instructions and Parts Manual EEAUP250 DESCRIPTION GENERAL SAFETY INFORMATION This portable, submersible Multi-Use pump is designed for CALIFORNIA PROPOSITION 65 automatic use in water. The units are equipped with a 9 ft. 3-prong grounding type power cord. The provided discharge adapter can be used for convenient attachment to a garden hose.

  • Page 3: Application And Operation

    Operating Instructions and Parts Manual Risk of electric shock! Do NOT handle pump Use polarized grounding type plugs only. with wet hands or when standing in water or on a damp surface. Failure Polarized plugs have one blade slightly wider than the other and can only be inserted one way into the outlet.

  • Page 4: Maintenance

    Operating Instructions and Parts Manual EEAUP250 APPLICATION AND OPERATION MAINTENANCE 6. Plug the pump into a 120 volt GFCI protected outlet. The Pump starts automatically. Always disconnect pump will start pumping automatically when the water reaches electric supply before attempting to install, service, relocate, or perform a depth of 1-3/4 inches.

  • Page 5: Troubleshooting

    Operating Instructions and Parts Manual TROUBLESHOOTING 4. To verify discharge hose is free from a blockage. a. Connect hose to another water source such as a faucet. Minimal service is required for this pump. The motor housing of If water flows through hose, return to step 3a. If water is the pump is completely sealed and requires no internal service.

  • Page 6: Troubleshooting Chart

    Operating Instructions and Parts Manual EEAUP250 Troubleshooting Chart Electrocution Hazard! Pump starts automatically. Disconnect the power before attempting any repairs. Failure to follow will result in serious injury or death. Risque d'électrocution! La pompe démarre automatiquement. Couper le courant avant d’entreprendre une quelconque réparation.

  • Page 7: Limited Warranty

    LIMITED WARRANTY For one year for EEAUP250 model from the date of purchase, from an authorized dealer, Wayne Water Systems will repair or replace, at its option for the original purchaser, any part or parts of its Multi-Use Pumps or Water Pumps (“Product”) found upon examination by Wayne Water Systems to be defective in materials or workmanship.
  • Page 8 NOTES www.waynepumps.com...
