SuperPower & UltraPower
User Guide
0459

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Naida UltraPower and is the answer not in the manual?

Questions and answers

Related Manuals for Phonak Naida UltraPower

Summary of Contents for Phonak Naida UltraPower

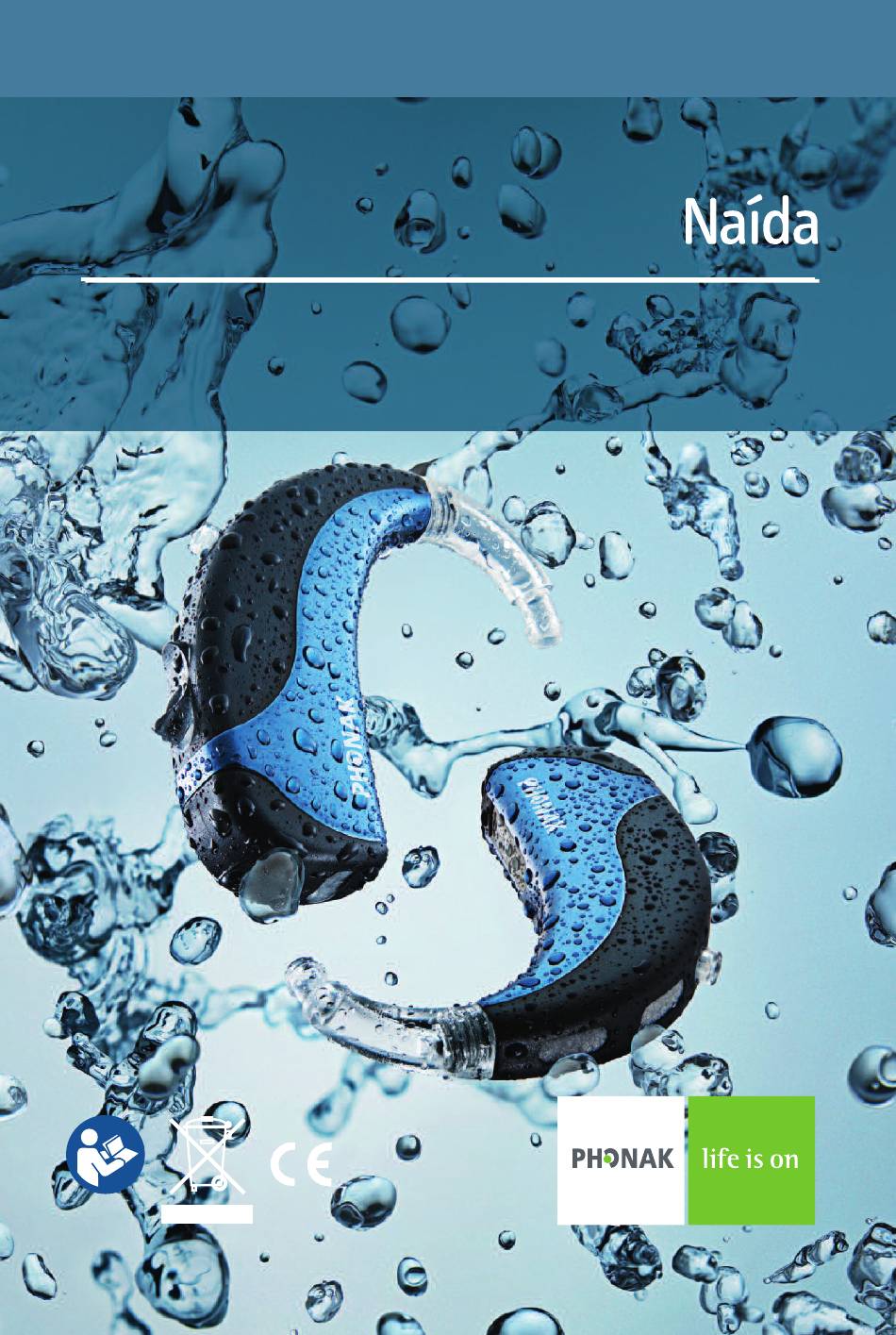

  • Page 1 SuperPower & UltraPower User Guide 0459...

  • Page 2: Table Of Contents

    Contents Welcome Description Naída SuperPower & UltraPower hearing system with earmold Naída SuperPower & UltraPower are water resistant! Short introduction Inserting the battery Switching ON/OFF Controlling the volume Selecting a hearing program Preparation Replacing the battery Tamperproof battery compartment Low battery warning Identifying left and right hearing systems Inserting Naída hearing system with earmold into your ear...
  • Page 3 Operation Switching ON/OFF FM system Delayed activation Controlling the volume Selecting a hearing program ZoomControl Telecoil (optional) EasyPhone Wireless accessories (optional) myPilot iCom iView FM communication (optional) Design-integrated FM receivers ML10i, ML11i Universal FM receivers MLxi, MicroMLxS Attaching & removing audio shoe AS10, AS11 47 EasyFM Manual selection of a FM program Dynamic FM transmitters...
  • Page 4 Contents Maintenance Naída is water resistant! Wind and Weather Protector Important points Warning Service and Warranty Phonak distributors worldwide...

  • Page 5: Welcome

    Ask your hearing care professional if you have any questions. Naída hearing systems are quality products developed by the Swiss company Phonak, a world leader in hearing technology, innovation and reliability. With proper care and usage, your Naída hearing system will support your hearing and communication needs for many years.

  • Page 6: Description

    Description...

  • Page 7: Naída Superpower & Ultrapower Hearing System With Earmold

    Naída SuperPower & UltraPower hearing systems with earmold Microphone inputs with Wind and Weather Protector (water resistant) for microphones Program switch (TacTronic) Programming cover Volume control Battery compartment with ON/OFF switch (for children: Junior models with battery lock) Hook/sound output Individual earmold Wind and Weather Protector (water resistant) for battery compartment...
  • Page 8 Description Naída hearing systems, including the design-integrated FM receivers, are resistant to water, sweat and dirt under the conditions listed below: ½ Battery compartment and programming cover are fully closed ½ All three Wind and Weather Protectors are mounted correctly ½...

  • Page 9: Short Introduction

    Short introduction Inserting the battery Details see page 12 Switching ON/OFF Details see page 24...

  • Page 10: Controlling The Volume

    Short introduction Controlling the volume Details see page 26 Volume up Volume down Selecting a hearing program Details see page 28...

  • Page 11: Preparation

    Preparation Replacing the battery Use size 13 batteries for all Naída SP (SuperPower) and size 675 batteries for all Naída UP (UltraPower) models. Using the nail grip, open the battery compartment completely and remove the old battery Remove the protective foil from the new battery.

  • Page 12: Tamperproof Battery Compartment

    Preparation Insert the new battery with the “+” sign (flat side of the battery) in line with the “+” marked on the battery cover . Push the battery door upwards to close it Tamperproof battery compartment For the Junior models (product names extended with Jr) the battery is locked inside the battery compartment for safety reasons.
  • Page 13 The battery can only be inserted when the latch is in upwards position . Move the latch over the inserted battery so that it lies against it. Lock the battery by pushing towards the hearing instrument with your finger . Before you close the battery compartment, check that the latch is locked in position and the battery cannot be removed.
  • Page 14 Preparation Handle the battery compartment with care and do not use excessive force. If there is any resistance when shutting the compartment, ensure that the battery is inserted correctly. If the battery is installed backwards, the instrument will not work. Please open the battery compartment and insert the battery correctly.

  • Page 15: Low Battery Warning

    Low battery warning An acoustic signal gives you an early warning that the battery is approaching exhaustion. You have usually at least 30 minutes to replace the battery. With very high quality batteries, this reserve may be higher. The hearing system will repeat the low battery warning approximately every 30 minutes.

  • Page 16: Identifying Left And Right Hearing Systems

    Preparation Identifying left and right hearing systems It is important to use the correct hearing system for each ear. Your hearing care professional can mark the hearing systems for you. The color code on the lower part of the battery compartment will identify the left and right hearing systems.
  • Page 17 If you have a design-integrated FM solution mounted on your hearing systems, the color code is situated on the FM system. To identify the left and right hearing systems, refer to the drawing below. blue = left red = right...

  • Page 18: Inserting Naída Hearing System With Earmold Into Your Ear

    Preparation Inserting Naída hearing systems with earmold into your ear Using the hand on the same side you wear your hearing system, grasp the earmold between the thumb and index finger. Raise your hand to your ear, making sure the canal portion of the earmold faces your ear.
  • Page 19 Place the canal portion of the earmold inside your ear canal. If it is difficult to get it into place, stretch your ear by pulling it gently backwards and upwards with your other hand. When the canal portion is in place, twist the earmold backwards so that it fits into the concha and the helix portion is under the fold.
  • Page 20 Preparation Check the placement of the earmold by tracing the contour of the ear with your finger. To remove your hearing system, grasp the earmold, not the tubing, and pull it out of your ear gently but firmly.

  • Page 21: Secure 'N Stay - An Optional Retention

    Secure ‘n Stay - an optional retention Secure ‘n Stay is an optional retention that can be easily mounted on the hearing instrument...
  • Page 22 Preparation Secure ‘n Stay supports the retention of the hearing instrument behind the ear and gives extra comfort during sport activities, when playing, etc. Ask your hearing care professional for more information. It can also be used with an FM system attached to your hearing instrument.
  • Page 23 Note: Before using Secure 'n Stay, carefully read the in- structions enclosed in the package. Secure 'n Stay is designed to be used in all situations where the Naída hearing system is recommended to be worn. Use only the appropriate Secure 'n Stay size for your Naída hearing system: Secure 'n Stay SP: Naída SP (SuperPower) models Secure 'n Stay UP: Naída UP (UltraPower) models...

  • Page 24: Switching On/Off

    Operation Switching ON/OFF Switching OFF Using the nail grip, slightly open the battery cover until it snaps to its OFF position. Keep in mind that Naída hearing systems are water resistant (sealed) and need a slightly stronger force to the OFF position. Switching ON Close the battery compartment.

  • Page 25: Fm System

    FM system Switching ON/OFF of a design-integrated FM or a universal FM receiver with an audio shoe (see page 41 or 46 resp.) can easily be done as described above. Keep in mind that the design-integrated FM systems are water resistant (sealed) and need a second press on the receiver/battery compartment to close properly (2x “click”...

  • Page 26: Controlling The Volume

    Operation Controlling the volume The volume of your Naída hearing system can be adjusted above or below the preset volume. Volume up Volume down...
  • Page 27 Note: ½ A beep confirms each action on the volume control. A double beep indicates that you have reached the limit of your volume control range. ½ The volume control switch can be replaced with a locked version, specially designed for small children.

  • Page 28: Selecting A Hearing Program

    Operation Selecting a hearing program Automatic program selection The program selection in Naída* is fully automatic. Naída recognizes different hearing environments and automatically selects the most appropriate hearing program. Additional program selection Upon request, your hearing care professional can pro- gram for you additional individual hearing programs dedicated to specific hearing situation or FM (wireless communication) use.
  • Page 29 Program switch (TacTronic) The program switch allows manual toggling between the “Automatic Mode” (except Naída I), “Mute Mode” and individual hearing programs. A short melody confirms the selection of the “Automatic Mode”. QuickSync - controlling two hearing instruments QuickSync, an automatic synchronization for volume adjustments and program selection is integrated in Naída V and IX models.

  • Page 30: Zoomcontrol

    Operation ZoomControl This special hearing program, which is available in Naída IX only, allows you to choose from four directions in which to focus your hearing systems (front, back, left or right). This special program can be accessed via the myPilot command center and/or the program switch.

  • Page 31: Easyphone

    EasyPhone The EasyPhone function enables your Naída* hearing system to automatically select your telephone program when the telephone handset is held close to your ear. An acoustic signal confirms the switching. It automatically returns to the previous hearing program when the telephone handset is removed from your ear. Some telephones produce a magnetic field strong enough to activate your EasyPhone function.
  • Page 32 Operation If you hold the telephone receiver in your right hand when making telephone calls, position the magnet in the upper right half of the receiver. If you hold the telephone receiver in your left hand when making telephone calls, position the magnet in the upper left half of the receiver.
  • Page 33 Use of EasyPhone Use the telephone in a normal manner. An acoustic signal indicates the activation of the EasyPhone program. At the beginning, you may need to move the handset slightly to find the optimum position for a reliable switching and comfortable hearing. If necessary, move the magnet to another position on the handset to increase your comfort of use.

  • Page 34: Wireless Accessories (Optional)

    Wireless accessories (optional) myPilot The myPilot command center is an optional accessory for all Naída* systems. It allows a convenient, user friendly and discrete control of all the functions of your hearing system and offers additional benefits. ½ Volume control ½...
  • Page 35 myPilot is available in two stylish colors: high-tech gray or white.
  • Page 36 Wireless accessories (optional) For optimum results, position your myPilot as shown in the drawing. Operating range max. 50 cm (20”) Do not use your myPilot in locations where it is forbidden to use electronic devices.

  • Page 37: Icom

    iCom iCom is an optional accessory available for all Naída* systems. With the push of a single button, iCom connects your hearing system with the technology around you (mobile phones, audio equipment, FM, etc.). Bluetooth connections iCom offers a simple way to connect your mobile phone via Bluetooth to your hearing system.
  • Page 38 Wireless accessories (optional) FM compatibility iCom also offers FM accessibility when a universal Phonak FM receiver is connected. EasyAudio and EasyBluetooth Your hearing systems* contain two special audio programs: EasyAudio and EasyBluetooth. These programs are automatically selected in your hearing systems when an audio or Bluetooth signal is received from iCom.

  • Page 39: Iview

    iView iView, the status viewer, is an optional accessory* for parents with small children and also for teachers or caregivers. Just by the press of a button, iView shows the status of the hearing instrument's battery, the current hearing program and volume settings, displayed on a large screen.

  • Page 40: Fm Communication (Optional)

    FM communication (optional) Your Naída hearing system is equipped with Direct Audio Input (DAI). It allows you to fully benefit from the high-end FM systems from Phonak. FM systems greatly improve communication when noise, distance or reverberation is a problem. A wireless FM communication system consists of a transmitter and a receiver.

  • Page 41: Design-Integrated Fm Receivers Ml10I, Ml11I

    FM communication (optional) FM solutions for Naída Phonak offers two FM solutions for your Naída hearing system: 1. Design-integrated FM receiver (see below) 2. Universal FM receiver (see page 46) 1. Design-integrated FM receivers ML10i and ML11i Perfectly integrated in the Naída design...
  • Page 42 FM communication (optional)
  • Page 43 Naída SuperPower & UltraPower hearing systems with design-integrated FM receiver (ML10i, ML11i) Microphone inputs with Wind and Weather Protector (water resistant) for microphones Program switch (TacTronic) Programming cover Volume control Battery compartment with ON/OFF switch (for children - Junior models, with battery lock) Hook / sound output Individual earmold Wind and Weather Protector (water resistant) for...
  • Page 44 FM communication (optional) Naída with the design-integrated FM solution is water resistant Thanks to the water resistant casing of Naída, you will now have a new degree of freedom in your daily life. The robust and dependable design of Naída will allow you to benefit from amplification in more situations than before: during rigorous labor, throughout strenuous exercise, while active outdoors, or even when caught in...
  • Page 45 Do not wear your hearing system while showering, or washing your hair. Do not wear your hearing systems while in the water. They are not designed for any kind of swimming or diving activities. Naída hearing systems are not designed for immersion in water or other liquids.

  • Page 46: Universal Fm Receivers Mlxi, Micromlxs

    For ON/OFF function of the hearing system, see page 24. Note: To have FM immediately active when required, Phonak recommends to leave the MLxi attached when not in use. If required, MLxi can easily be switched off by pressing the button. MicroMLxS: Together with the audio shoe interface.*...
  • Page 47 24. Note: ½ To have FM immediately active when required, Phonak recommends to leave the MicroMLxS attached when not in use. If required, MicroMLxS can easily be switched off by setting the switch to the OFF position “...
  • Page 48 FM communication (optional) Then push the hearing system down until it snaps in “click” To remove the audio shoe, place the hearing system on a firm surface, hold the audio shoe firmly and slide the locking system...
  • Page 49 When not in use, the receiver automatically switches to a low power stand-by mode. Note: To have FM immediately active when required, Phonak recommends to leave the MLxi attached when not in use. If required MLxi can easily be switched off by pressing the button.

  • Page 50: Easyfm

    FM communication (optional) EasyFM The EasyFM* function automatically selects your FM program when an FM receiver is connected to your hearing system in mode “A” (automatic) and an FM signal is detected. An acoustic signal confirms the switching. The hearing system switches back to “A” when the FM signal is turned off.

  • Page 51: Dynamic Fm Transmitters

    FM communication (optional) Dynamic FM transmitters Phonak offers Dynamic FM transmitters for all customers and needs: inspiro The transmitter for teachers and suitable for use in school SmartLink+ For teenagers and adults who want nothing less than the very best...

  • Page 52: Naída Is Water Resistant

    Maintenance Naída is water resistant! Thanks to the water resistant casing of Naída, you will now have a new degree of freedom in your daily life. The robust and dependable design of Naída will allow you to benefit from amplification in more situations than before: during rigorous labor, throughout strenuous exercise, while active outdoors, or even when unexpectedly caught in the rain.
  • Page 53 Do not wear your hearing system while showe- ring, or washing your hair. Do not wear your hearing system while in the water. They are not designed for any kind of swimming or diving activities. Naída hearing systems are not designed for immersion in water or other liquids.

  • Page 54: Wind And Weather Protector

    Maintenance Wind and Weather Protector Important: The three Wind and Weather Protectors are exclusive to Phonak hearing systems, designed to protect the high-tech microphones and battery air inlet from dust, humidity or water. The life span of the Wind and Weather Protectors should be up to several months, depending on the environment (humidity, dust, perspiration, etc.).
  • Page 55 Your hearing system should never be used without the Wind and Weather Protectors. If not mounted properly, the hearing system is not water resistant (see page 52). The following care and maintenance tips will help extend the life span and ensure the efficiency of your protectors: Never wipe or clean the Wind and Weather Protector –...
  • Page 56 Maintenance Important: Consult your hearing care professional about changing the Wind and Weather Protector if you experience any of the following: ½ The hearing system sounds quieter than usual ½ There is a reduction in sound quality ½ Understanding in noise becomes more difficult ½...

  • Page 57: Important Points

    Important points 1) Always use new batteries as replacements. You can return empty batteries to your hearing care professional. 2) When your hearing system is not in use, leave the battery compartment open in a clean place, preferable the protective case, to allow any moisture to evaporate.
  • Page 58 Avoid strong jolts and vibration. 7) Daily cleaning and the use of a drying system is highly recommended. C&C Line from Phonak is a complete set of cleaning products. Your hearing care professional will be glad to advise you.
  • Page 59 If your hearing system fails to operate after you have correctly inserted new batteries, contact your hearing care professional for advice. For coding reasons, please remember to bring your accessories (e.g. myPilot, iCom and iView), if you use any, together with your hearing system for service enquiries.

  • Page 60: Warning

    Hearing systems in directional microphone mode reduce mainly background sounds. Warning signals coming from behind and vehicles’ horns approaching from behind are partially or completely suppressed. Changes or modifications made to this equipment not expressly approved by Phonak are not allowed.

  • Page 61: Service And Warranty

    Damage caused by third parties or non-authorized service centers renders the Phonak warranty null and void. This warranty does not include any services performed by a hearing care professional in their office. This warranty...
  • Page 62 2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications made to this equipment not expressly approved by Phonak may void the FCC authorization to operate this equipment. Notice 2 This Class B digital apparatus complies with Canadian...
  • Page 63 Notice 3 This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

  • Page 64: Phonak Distributors Worldwide

    France Phonak France SA, 69500 Bron Germany Phonak GmbH, 70736 Fellbach-Oeffingen EC Representative India Phonak India Pvt. Ltd., 100 034 New Delhi Italy Phonak Italia S.r.l., 20159 Milano Japan Phonak Japan Co., Ltd., Tokyo 101-0044 Jordan Phonak Middle East, 11181 Amman Mexico Phonak Mexicana, S.A.
  • Page 65 Poland Phonak Polska Sp. z o.o., 00-567 Warszawa Portugal Phonak Ibérica S.A., 03008 Alicante, Spain Russian Federation Phonak CIS Ltd., Moscow, 115114 Spain Phonak Ibérica S.A., 03008 Alicante Sweden Phonak AB, 117 43 Stockholm Switzerland Phonak AG, Phonak Schweiz, 8712 Stäfa Turkey Phonak Turkey A.S., 34357 Istanbul...
  • Page 66 The CE symbol is a confirmation by Phonak AG that Naída products and XXXX accessories meet the requirements of directive 93/42/EEC on medical devices and the R&TTE Directive 1999/5/EC on Radio and Telecommunication Terminal Equipment. The numbers after the CE symbol are the numbers of consulted certified bodies under the above mentioned directives.
  • Page 67 Transportation and Temperature should not exceed limits of storage conditions –20°/60° Celsius at a relative air humidity of 65% for extended periods during transportation and storage. Air pressure between 500 and 1100 hPa is not detrimental to the instrument. Australia & New Zealand Brazil China Japan...
  • Page 68 www.phonak.com...
