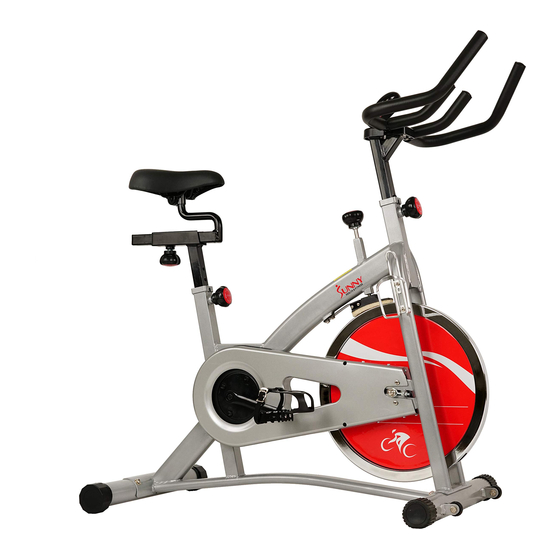

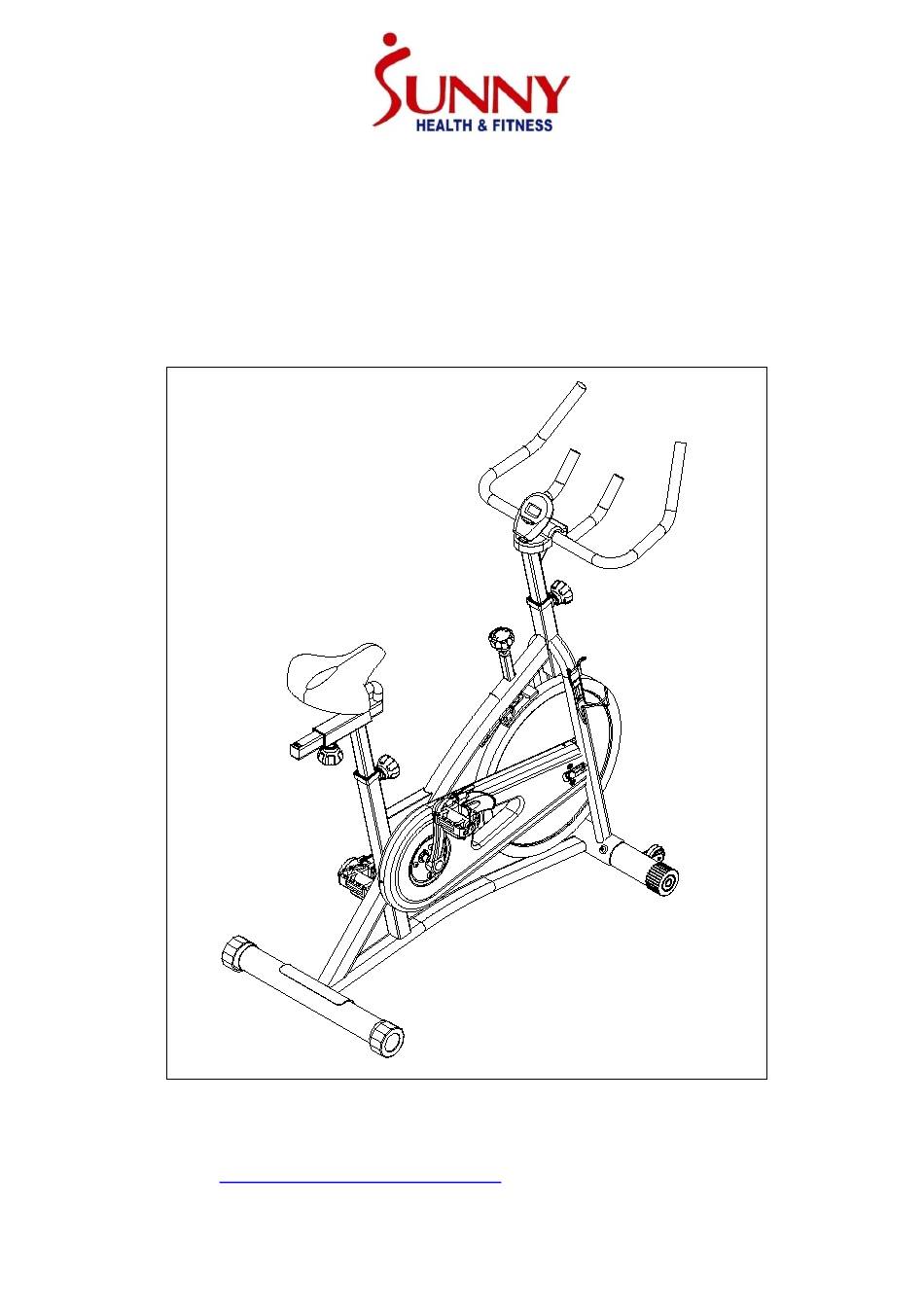

- Page 1 BELT DRIVE INDOOR CYCLING BIKE SF-B1421B USER MANUAL IMPORTANT! Please retain owner’s manual for maintenance and adjustment instructions. Your satisfaction is very important to us, PLEASE DO NOT RETURN UNTIL YOU HAVE CONTACTED US: support@sunnyhealthfitness.com or 1- 877 - 90SUNNY (877-907-8669).
-
Page 2: Important Safety Information
IMPORTANT SAFETY INFORMATION We thank you for choosing our product. To ensure your safety and health, please use this equipment correctly. It is important to read this entire manual before assembling and using the equipment. Safe and effective use can only be achieved if the equipment is assembled, maintained and used properly. It is your responsibility to ensure that all users of the equipment are informed of all warnings and precautions. -
Page 3: Exploded Drawing
EXPLODED DRAWING 1 7 24... - Page 4 EXPLODED DRAWING 2...
-
Page 5: Parts List
PARTS LIST Description Spec. Description Spec. Computer M6*H5*S10 Φ23*3*480 M6*50*Φ12*5 Foam Grip Adjusting Screw Φ25*16 Φ18*Φ12.2*6 End Cap Spacer Φ23*3*190 Foam Grip M12*1*H6*S19 Φ22*16 Handlebar End Cap Handlebar Φ30*Φ10*6 125*80*42 Washer Cover d8*Φ16*1.5 Washer Bearing 6001-2RS ST4.8*13*Φ8 Screw M8*16*S6 Screw Spring Washer Flywheel Cover Φ10*4 3500±200... -
Page 6: Hardware Package
Description Spec. Qty. Description Spec. Qty. M10*1.25*H7.5 Belt 5PK510 *S14 72L/ Left & Right Outer Chain Crank Cover Middle Axle Φ50*Φ32*33 ST4.8*16*Φ10 Screw Cover C Clip Blanking Plate Bearing 6203-2RS Screw ST4.2*16*Φ8 85L/ d17*Φ22*0.3 Wave Washer Pedal Φ17*176 Middle Axle Left Nylon Nut 9/16*20*H8*S19 Φ204*20*5PK... - Page 7 ASSEMBLY INSTRUCTIONS STEP 1: #8 M8*16*S6 4PCS #27 d8*Φ20*2*R30 4PCS Attach the Front and Rear Stabilizers (No. 26 & #13 M16*1.5*18*Φ58 2PCS No. 29) to the Main Frame (No. 31) using 4 Screws (No. 8) and 4 Arc Washers (No. 27). Tighten and secure with Allen Wrench (No.
- Page 8 STEP 3: Loosen and pull out the Adjustment Knob (No. 13). Insert Handlebar Post (No. 11) into the sleeve located on the front of the Main Frame (No. 31). Adjust the Handlebar Post (No. 11) to the desired position, re-insert and tighten the Adjustment Knob (No.
- Page 9 ADJUSTMENTS & USAGE GUIDE ADJUSTING THE HEIGHT Loosen and pull out the [seat height] Adjustment Knob (No. 13) to adjust the height of the saddle. You may also slide the seat forward or backwards by loosening and pulling out the [seat] Adjustment Knob (No. 13) on the Seat Slider (No.
-
Page 10: Exercise Computer
EXERCISE COMPUTER SPECIFICATIONS: TIME------------------------------------------- 00:00-99:59 MIN:SEC SPEED---------------------------------------- 0.0-999.9 ML/H DISTANCE----------------------------------- 0.00-99.99 MI CALORIES----------------------------------- 0.0-999.9 KCAL FUNCTION KEY: MODE: Press MODE repeatedly to select the desired display value (Time, Speed, Distance, Calories, Scan). CLEAR: To reset a single value press CLEAR once. To reset all values Press and hold CLEAR for 3 seconds. -
Page 11: Maintenance Instructions
MAINTENANCE INSTRUCTIONS This is general information for daily, weekly and monthly maintenance to be performed on your bike. DAILY MAINTENANCE MONTHLY MAINTENANCE After each exercise session, wipe down all 1. Check if all hardware is secure, such as: the equipment: seat, frame, handlebars. Pay water bottle holder, flywheel nuts, belt/chain special attention to the seat post, handlebar guard bolts, brake caliper lock nuts and brake...
