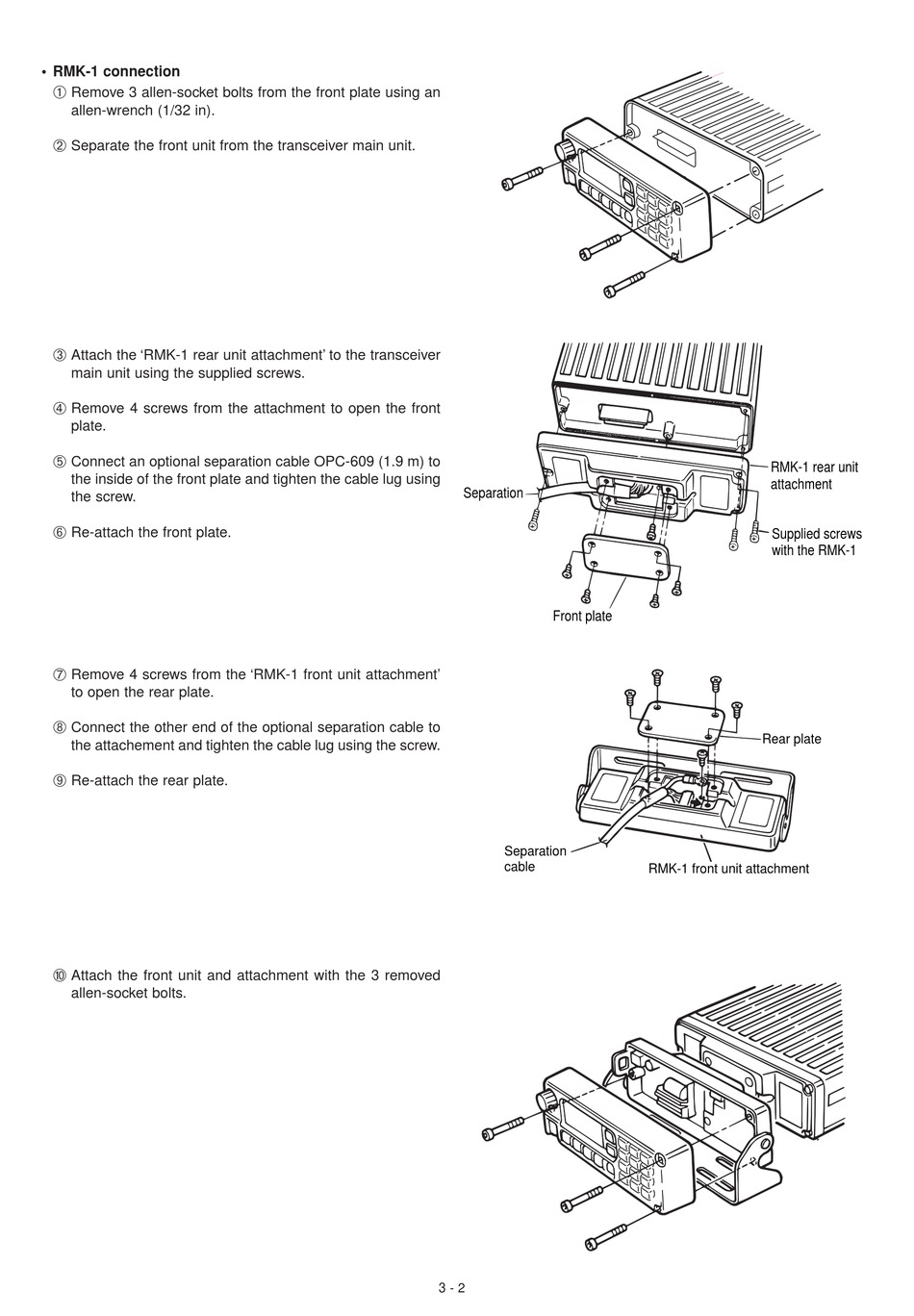

• RMK-1 connection
¡ Remove 3 allen-socket bolts from the front plate using an
allen-wrench (1/32 in).
™ Separate the front unit from the transceiver main unit.
£ Attach the 'RMK-1 rear unit attachment' to the transceiver
main unit using the supplied screws.
¢ Remove 4 screws from the attachment to open the front
plate.
∞ Connect an optional separation cable OPC-609 (1.9 m) to
the inside of the front plate and tighten the cable lug using
the screw.
§ Re-attach the front plate.
¶ Remove 4 screws from the 'RMK-1 front unit attachment'
to open the rear plate.
• Connect the other end of the optional separation cable to
the attachement and tighten the cable lug using the screw.
ª Re-attach the rear plate.
º Attach the front unit and attachment with the 3 removed
allen-socket bolts.
Separation
Front plate
Separation
cable
3 - 2
RMK-1 rear unit
attachment
Supplied screws
with the RMK-1
Rear plate
RMK-1 front unit attachment
