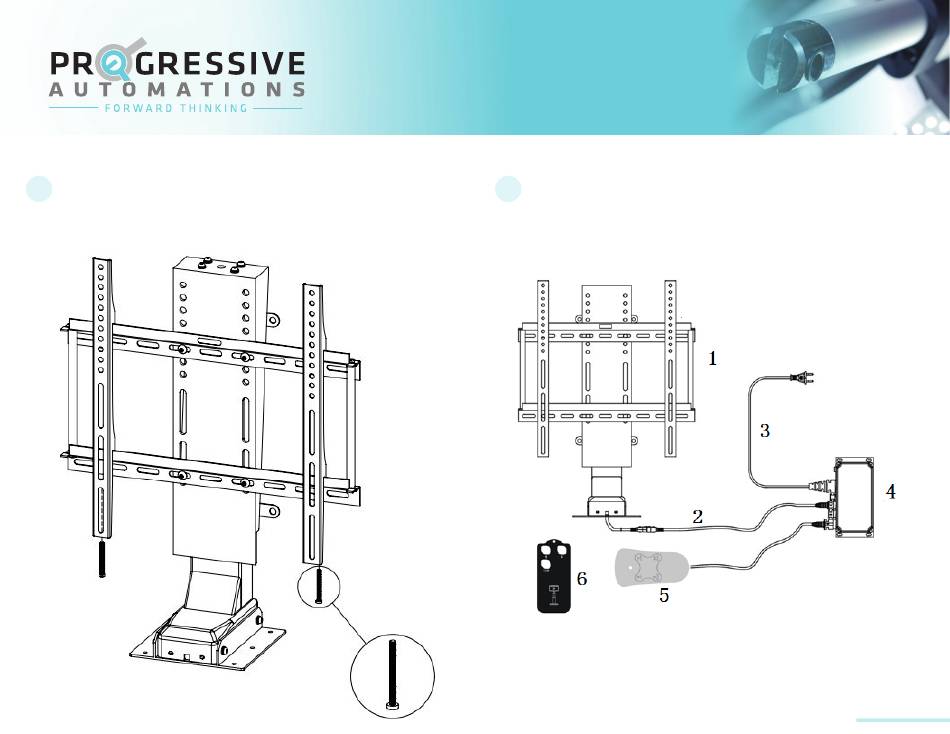

secure another 2 parts of the tV mounting bracket onto the
5
backside of the tV set with 4 screws included with tV set. and then
hang the tV set onto the tV mounting bracket as following.
use 2 m5x50 screws to tighten on the bottom.
tv Lift (tY-01)
AsseMBLY
iNstrUCtioNs
connect the Wires as per the diagram below. now your tV
6
lift is ready for use. (press the buttons of the handset and
column will move up/down)
HOW TO ORDER
1.800.676.6123
sales@progressiveautomations.com
www.progressiveautomations.com
page 6
