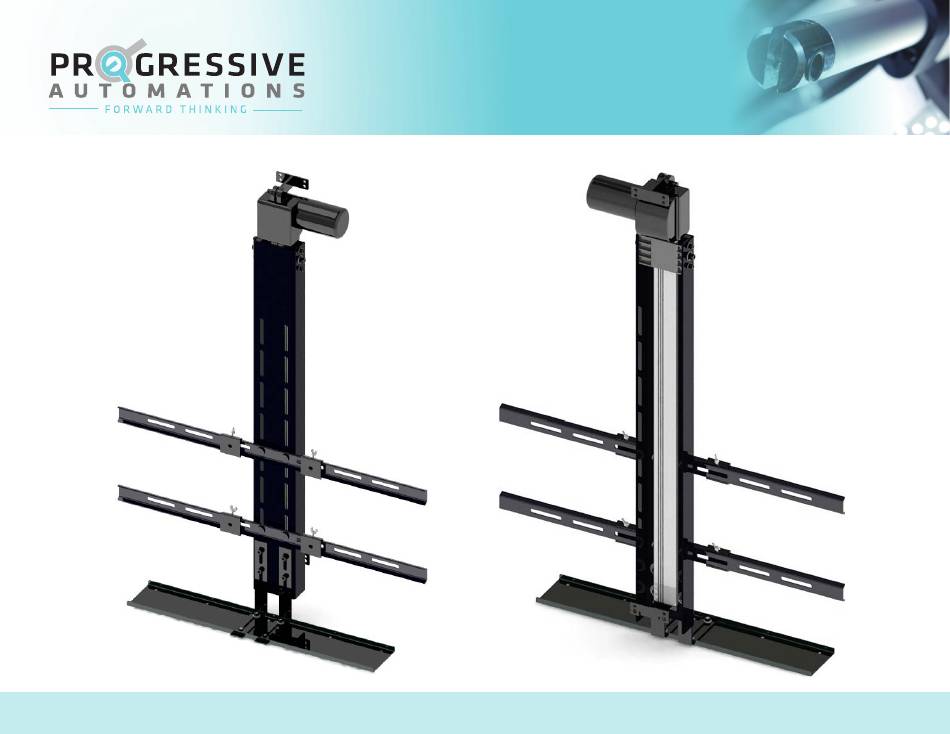

- Page 1 DROP DOWN tv Lift (TY-05) HOW TO ORDER 1.800.676.6123 PRODUCT MANUAL sales@progressiveautomations.com www.progressiveautomations.com...
- Page 2 DROP DOWN tv Lift (TY-05) HOW TO ORDER 1.800.676.6123 PRODUCT MANUAL sales@progressiveautomations.com www.progressiveautomations.com diMeNsioNs iN iNChes 12.5 + Stroke Length + Stroke Length 35.00 for 30" Stroke speCifiCAtioNs: Dynamic Load: 140 lbs 30" Stroke = 30" Tall TV Maximum Height:...
- Page 3 DROP DOWN tv Lift (TY-05) HOW TO ORDER 1.800.676.6123 PRODUCT MANUAL sales@progressiveautomations.com www.progressiveautomations.com ELECTRONICS Control Box Wireless Remotes Rocker Switch External Limit Switch hArdwAre (continued on next page) Ceiling Cover Actuator Mounting Bracket Ceiling Cover Brackets TV Support Arms 30"...
- Page 4 DROP DOWN tv Lift (TY-05) HOW TO ORDER 1.800.676.6123 PRODUCT MANUAL sales@progressiveautomations.com www.progressiveautomations.com hArdwAre Purpose Name Quantity P1 Ceiling Cover Hex Bolt M8x18 Brackets Nut M8 Flat Washer M8 Phillips Countersunk P2 Ceiling Cover Screw M5x12 Brackets Nut M5 Flat Washer M5...
- Page 5 DROP DOWN tv Lift (TY-05) HOW TO ORDER 1.800.676.6123 PRODUCT MANUAL sales@progressiveautomations.com www.progressiveautomations.com Tools needed: philips screwdriver, 5mm allen key, 6mm allen key, 8mm allen key, 8mm socket, 13mm socket Use the four M8x12 bolts, nuts and washers from bag P3 Use the four M8x12 Phillips Countersunk Screws from bag P4 to to attach TV Support Arms to the Support Column.
- Page 6 DROP DOWN tv Lift (TY-05) HOW TO ORDER 1.800.676.6123 PRODUCT MANUAL sales@progressiveautomations.com www.progressiveautomations.com use the four M5x12 screws, nuts and washers from bag P2 to Use the four M8x18 bolts, nuts and washers from bag P1 attach the Ceiling Cover to the Ceiling Cover Brackets. Tighten to mount the assembled Ceiling Cover to the Support until secure.
- Page 7 DROP DOWN tv Lift (TY-05) HOW TO ORDER 1.800.676.6123 PRODUCT MANUAL sales@progressiveautomations.com www.progressiveautomations.com Use the Actuator Mount Bracket, Clevis Pin and Cotter Pin For this step we recommend having at least two people. From from bag P6 to mount the top portion of the Track Linear bag P6, use the four M6x25 bolts and washers for the smaller Actuator to your installation.
- Page 8 DROP DOWN tv Lift (TY-05) HOW TO ORDER 1.800.676.6123 PRODUCT MANUAL sales@progressiveautomations.com www.progressiveautomations.com Your Drop Down TV Lift is now fully assembled and ready for use! Now that your Drop Down TV Lift is assembled you can attach your TV Mounting Brackets to the TV Support Arms using the four M8x12 screws.
-
Page 9: Operational Procedures
DROP DOWN tv Lift (TY-05) HOW TO ORDER 1.800.676.6123 PRODUCT MANUAL sales@progressiveautomations.com www.progressiveautomations.com OPERATIONAL PROCEDURES Programming Wireless Remotes Lift Operation Before operation please ensure that there are no To program the wireless remote for the control box, press and hold the obstructions in the path of the TV Lift.
