3

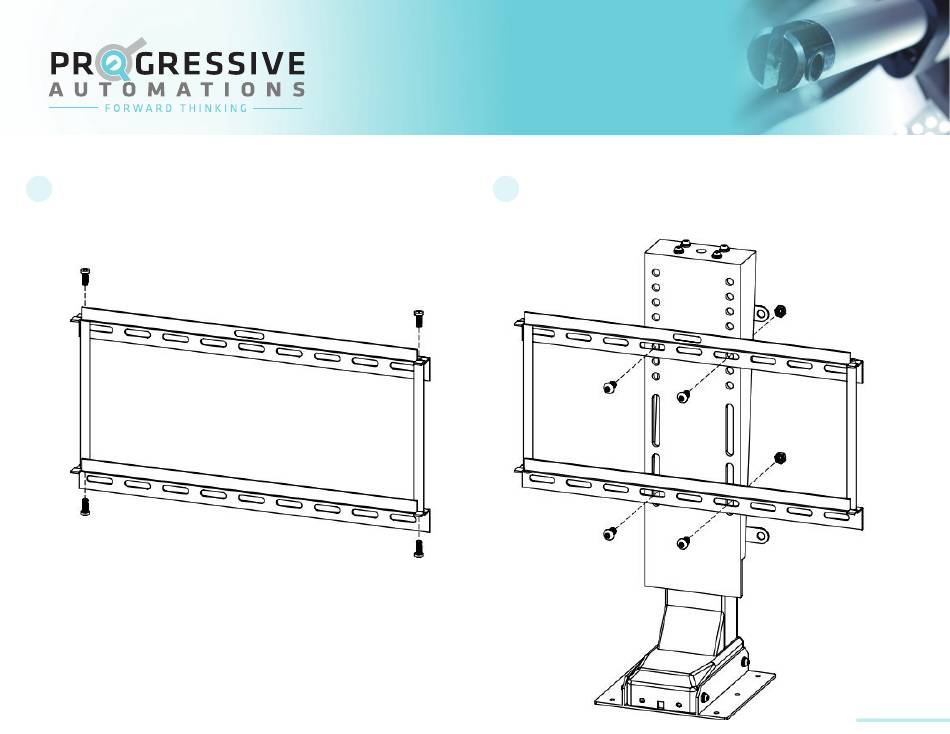

use 4 screws m6x16, to assemble the tV mounting bracket as following.
tv Lift (tY-01)
AsseMBLY
iNstrUCtioNs
use 4 Hex Bolts m8x16, each with spring washer and Washer,
4
to attach tV mounting bracket on to the mounting bracket.
tighten the 4 screws.
HOW TO ORDER
1.800.676.6123
sales@progressiveautomations.com
www.progressiveautomations.com
page 5
