Catalog PDN1000-3US
Parker Pneumatic
P1D Series

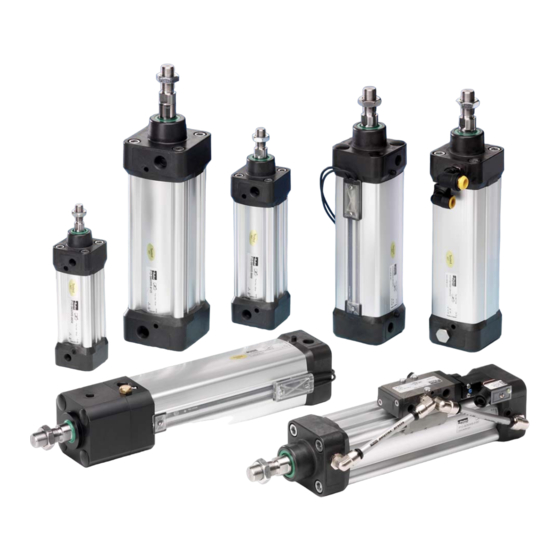

The innovative P1D is a long lasting ISO/VDMA
cylinder. The cylinders are double acting, with a
new design of air cushioning.
The P1D complies with the current ISO 6431,
ISO 15552, VDMA 24562 and AFNOR installation
dimension standards
• Available in 32 to 200mm bores
• PUR seals for long service life
• Drop-in sensors
• Corrosion resistant design
• Magnetic piston as standard
• Lubricated with food grade grease
P1D Standard - Double acting
Ø32mm - (G
)
1
/
8
Stroke (mm)
Order Code
25
P1D-S032MC-0025NNNNN
40
P1D-S032MC-0040NNNNN
50
P1D-S032MC-0050NNNNN
80
P1D-S032MC-0080NNNNN
100
P1D-S032MC-0100NNNNN
125
P1D-S032MC-0125NNNNN
160
P1D-S032MC-0160NNNNN
200
P1D-S032MC-0200NNNNN
250
P1D-S032MC-0250NNNNN
320
P1D-S032MC-0320NNNNN
400
P1D-S032MC-0400NNNNN
500
P1D-S032MC-0500NNNNN
Ø40mm - (G
)
1
/
4
25
P1D-S040MC-0025NNNNN
40
P1D-S040MC-0040NNNNN
50
P1D-S040MC-0050NNNNN
80
P1D-S040MC-0080NNNNN
P1D-S040MC-0100NNNNN
100
125
P1D-S040MC-0125NNNNN
160
P1D-S040MC-0160NNNNN
200
P1D-S040MC-0200NNNNN
250
P1D-S040MC-0250NNNNN
320
P1D-S040MC-0320NNNNN
400
P1D-S040MC-0400NNNNN
P1D-S040MC-0500NNNNN
500
Ø50mm - (G
)
1
/
4
25
P1D-S050MC-0025NNNNN
40
P1D-S050MC-0040NNNNN
50
P1D-S050MC-0050NNNNN
P1D-S050MC-0080NNNNN
80
100
P1D-S050MC-0100NNNNN
125
P1D-S050MC-0125NNNNN
160
P1D-S050MC-0160NNNNN
200
P1D-S050MC-0200NNNNN
250
P1D-S050MC-0250NNNNN
320
P1D-S050MC-0320NNNNN
400
P1D-S050MC-0400NNNNN
500
P1D-S050MC-0500NNNNN
Most popular.
Actuator Products – Tie Rod Cylinders
P1D Series
Operating information
Operating pressure:
Temperature range:
Cylinders for low pressure hydraulic operation:
ATEX approval:
Filtration requirements:
Ø63mm - (G
)
3
/
8
Stroke (mm)
Order Code
25
P1D-S063MC-0025NNNNN
40
P1D-S063MC-0040NNNNN
50
P1D-S063MC-0050NNNNN
80
P1D-S063MC-0080NNNNN
100
P1D-S063MC-0100NNNNN
125
P1D-S063MC-0125NNNNN
160
P1D-S063MC-0160NNNNN
200
P1D-S063MC-0200NNNNN
250
P1D-S063MC-0250NNNNN
320
P1D-S063MC-0320NNNNN
400
P1D-S063MC-0400NNNNN
500
P1D-S063MC-0500NNNNN
Ø80mm - (G
)
3
/
8
25
P1D-S080MC-0025NNNNN
40
P1D-S080MC-0040NNNNN
50
P1D-S080MC-0050NNNNN
80
P1D-S080MC-0080NNNNN
P1D-S080MC-0100NNNNN
100
125
P1D-S080MC-0125NNNNN
160
P1D-S080MC-0160NNNNN
200
P1D-S080MC-0200NNNNN
250
P1D-S080MC-0250NNNNN
320
P1D-S080MC-0320NNNNN
400
P1D-S080MC-0400NNNNN
P1D-S080MC-0500NNNNN
500
B65
145 PSIG (10 bar) maximum
Standard:
-4°F to 176°F (-20°C to 80°C)
High temperature: 14°F to 250°F (-10°C to 121°C)
Ø32 - 125mm
CE Ex IIGD c T4
248°F (120°C)
40 micron, dry filtered air
Ø100mm - (G
)
1
/
2
Stroke (mm)
Order Code
25
P1D-S100MC-0025NNNNN
40
P1D-S100MC-0040NNNNN
50
P1D-S100MC-0050NNNNN
80
P1D-S100MC-0080NNNNN
100
P1D-S100MC-0100NNNNN
125
P1D-S100MC-0125NNNNN
160
P1D-S100MC-0160NNNNN
200
P1D-S100MC-0200NNNNN
250
P1D-S100MC-0250NNNNN
320
P1D-S100MC-0320NNNNN
400
P1D-S100MC-0400NNNNN
500
P1D-S100MC-0500NNNNN
Ø125mm - (G
)
1
/
2
25
P1D-S125MC-0025NNNNN
40
P1D-S125MC-0040NNNNN
50
P1D-S125MC-0050NNNNN
80
P1D-S125MC-0080NNNNN
P1D-S125MC-0100NNNNN
100
125
P1D-S125MC-0125NNNNN
160
P1D-S125MC-0160NNNNN
200
P1D-S125MC-0200NNNNN
250
P1D-S125MC-0250NNNNN
320
P1D-S125MC-0320NNNNN
400
P1D-S125MC-0400NNNNN
P1D-S125MC-0500NNNNN
500
The cylinders are supplied complete with a zinc
plated steel piston rod nut.
Sensors
For sensors see page B339.
Parker Hannifin Corporation
Pneumatic Division
Richland, Michigan
www.parker.com/pneumatics
