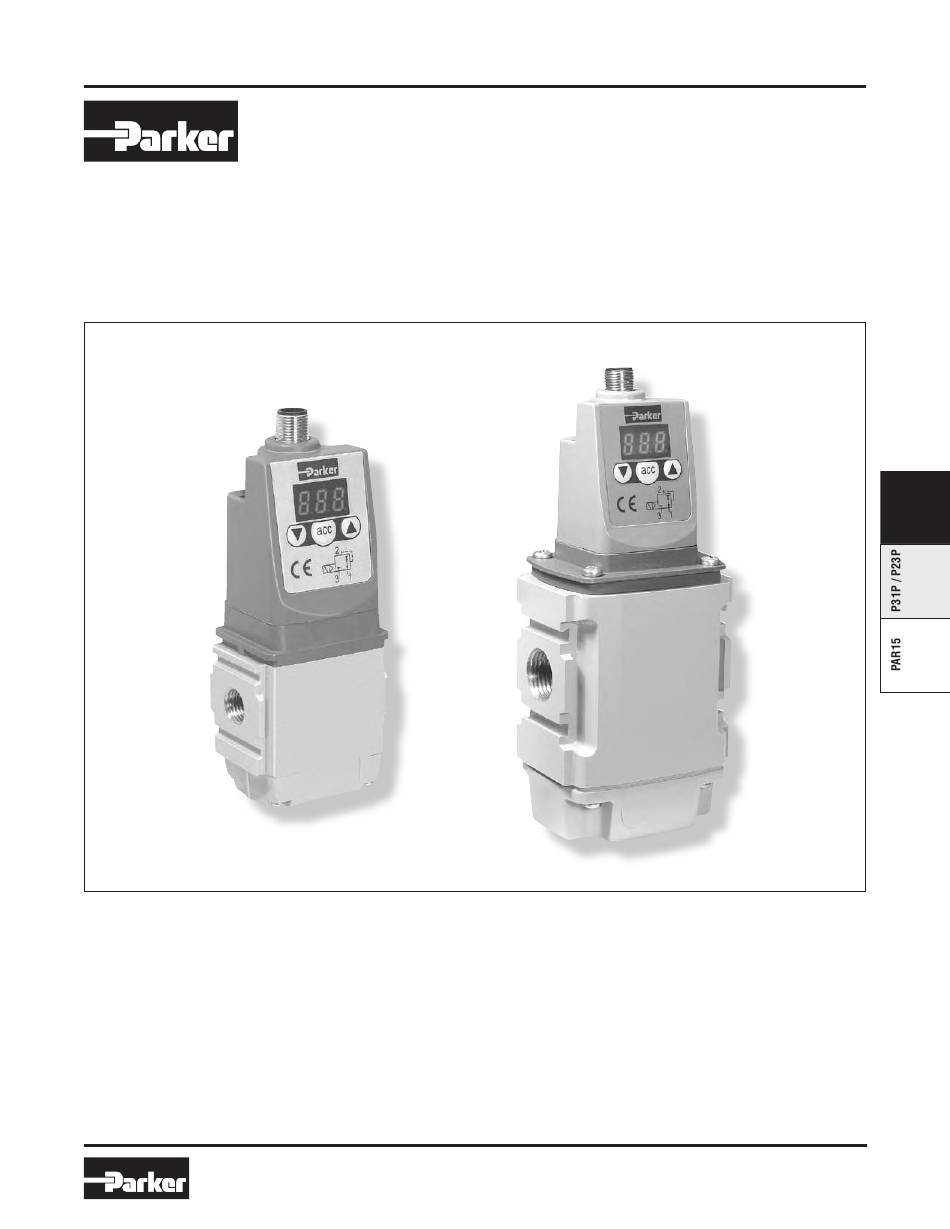

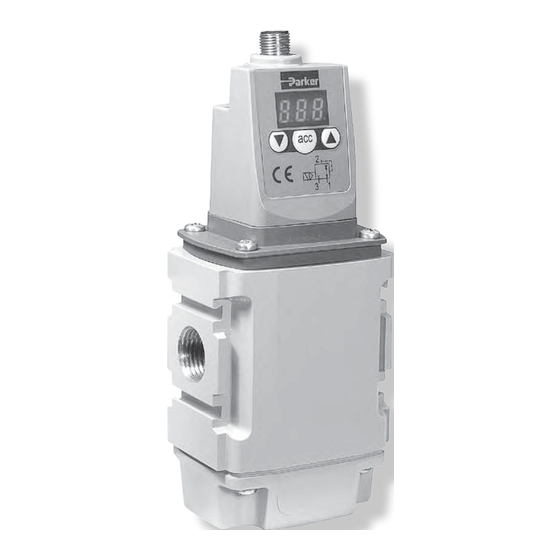

P31P / P32P Series
Electronic Proportional Regulators
P31P / P32P Series
Electronic Proportional Regulator
0 to 10 volt, 4 to 20 mA
F3
www.comoso.com
www.comoso.com
Parker Hannifin Corporation
Pneumatic Division
Richland, Michigan
www.parker.com/pneumatics
F
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Parker P31P Series
Summary of Contents for Parker P31P Series
-
Page 1: Table Of Contents
0 to 10 volt, 4 to 20 mA Proportional Regulator Applications .....F4-F5 Features & Benefits ........... F6 Ordering Information ..........F7 Technical Information..........F8-F9 Programming Information .........F10-F15 Dimensions .............. F16 Troubleshooting ............F17 Glossary ..............F18 Parker Hannifin Corporation Pneumatic Division Richland, Michigan www.parker.com/pneumatics www.comoso.com www.comoso.com... - Page 2 40 & 60 mm Body Sizes Light Weight Aluminum Bodies Flexible Mounting Options Stand-alone or Modular Mounting Outstanding Performance Foot Bracket Mounting DIN-Rail Mounting Very Fast Response Times Full Flow Exhaust Excellent Linearity High Flow Parker Hannifin Corporation Pneumatic Division Richland, Michigan www.parker.com/pneumatics www.comoso.com www.comoso.com...
- Page 3 “body-in-white” lines. The control of clamping and welding forces during panel assembly is an ideal application, also accurate control in paint dipping and spraying can be achieved. Parker Hannifin Corporation Pneumatic Division Richland, Michigan www.parker.com/pneumatics www.comoso.com...
-
Page 4: Features & Benefits
Also, no account is taken of external influences such as air consumption by the system, which can drastically alter the actual value. Typical Application in Automotive Body in White Welding Pressure Control Parker Hannifin Corporation Pneumatic Division Richland, Michigan www.parker.com/pneumatics www.comoso.com... -
Page 5: Ordering Information
• Quick, full flow exhaust • LED display indicates output pressure • No air consumption in steady state • Multiple mounting options • Protection to IP65 P31P Series P32P Series • P31P flows to 19 dm /s (40 scfm) Bottom exhaust Bottom exhaust •... -
Page 6: Technical Information
0 to 10 V 14). White Control Signal Ri = 500 W 4 to 20mA 0 V (GND) Supply Blue 24 V Alarm Output Signal Black Schematic 24 VDC Control Signal Parker Hannifin Corporation Pneumatic Division Richland, Michigan www.parker.com/pneumatics www.comoso.com www.comoso.com... - Page 7 • Regulator Body (P31P & P32P versions) ....... Aluminium • Regulator Top Housing ............Nylon • Valve Head ..............Brass & NBR Flow - dm • Remaining Seals ..............NBR Flow - (scfm) Parker Hannifin Corporation Pneumatic Division Richland, Michigan www.parker.com/pneumatics www.comoso.com www.comoso.com...
-
Page 8: Programming Information
Displays current Accepts and Accesses parameter value. saves new Description changeable Accesses 1 = V parameter Sequences to parameters. parameter no. 4. 0 = mA Edits parameter. setting. next parameter. Parker Hannifin Corporation Pneumatic Division Richland, Michigan www.parker.com/pneumatics www.comoso.com www.comoso.com... - Page 9 Accepts and saves new parameter setting and Description Accesses implements the changeable Accesses Displays current new analog signal Sequences to parameters. parameter no. 8. parameter value. Edits parameter. span. next parameter. Parker Hannifin Corporation Pneumatic Division Richland, Michigan www.parker.com/pneumatics www.comoso.com www.comoso.com...
- Page 10 Accepts and Description Accesses 1 = psig saves new changeable Accesses 0 = bar parameter Sequences to parameters. parameter no. 14. 2 = MPA Edits parameter. setting. next parameter. Parker Hannifin Corporation Pneumatic Division Richland, Michigan www.parker.com/pneumatics www.comoso.com www.comoso.com...
- Page 11 Displays current parameter value. Accepts and Description Accesses Incremental saves new changeable Accesses value is: parameter Sequences to parameters. parameter no. 19. % of F.S. Edits parameter. setting. next parameter. Parker Hannifin Corporation Pneumatic Division Richland, Michigan www.parker.com/pneumatics www.comoso.com www.comoso.com...
- Page 12 Displays current parameter value. Accepts and Description Accesses Incremental saves new changeable Accesses value is: parameter Sequences to parameters. parameter no. 12. x 10 mbar Edits parameter. setting. next parameter. Parker Hannifin Corporation Pneumatic Division Richland, Michigan www.parker.com/pneumatics www.comoso.com www.comoso.com...
- Page 13 Parameter Number 39 – Displays Current Software Version Step Press 3-6 seconds Until Display Reads Flashing Decimal Displays current Accesses parameter value. Description changeable Accesses XXX = current parameters. parameter no. 39. software version Parker Hannifin Corporation Pneumatic Division Richland, Michigan www.parker.com/pneumatics www.comoso.com www.comoso.com...
-
Page 14: Dimensions
(1.02) (2.20) (2.20) (0.47) (1.02) (2.05) (2.05) Ø 7 (0.28) Ø 7 (2.05) (1.57) 4 holes (2.05) (1.57) (0.28) 4 holes (3.31) (3.31) (3.94) Dimensions are in mm (Inches) (3.94) Parker Hannifin Corporation Pneumatic Division Richland, Michigan www.parker.com/pneumatics www.comoso.com www.comoso.com... - Page 15 Change over setpoint value to either V or mA programmed setpoint value acceptance or Reprogram the unit to the correct setpoint value via parameter 4 Any other problem Please consult factory Parker Hannifin Corporation Pneumatic Division Richland, Michigan www.parker.com/pneumatics www.comoso.com www.comoso.com...
-
Page 16: Glossary
24VDC when activated. NPN Output – Referred to as a “Sinking” open collector transistor output. The output sinks towards 0VDC when activated. Parker Hannifin Corporation Pneumatic Division Richland, Michigan www.parker.com/pneumatics www.comoso.com www.comoso.com...
