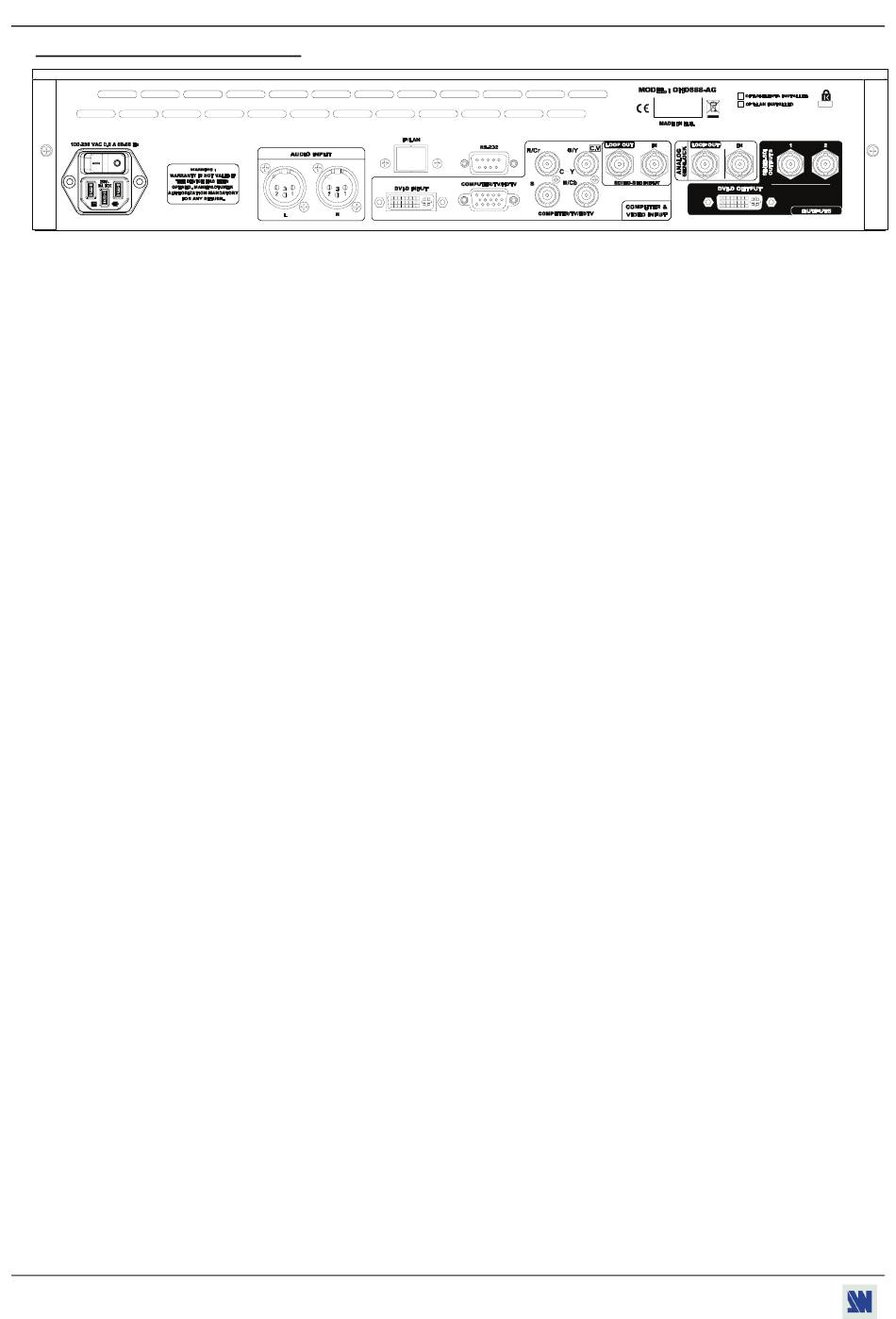

1-6. REAR PANEL DESCRIPTION

O / I:
100-250VAC 0.5A 50-60Hz: AC power inlet (IEC C14 appliance inlet).
AUDIO INPUT:
IP/LAN:
RS-232:
COMPUTER & VIDEO INPUT
DVI-D INPUT:
COMPUTER/TV/HDTV: Computer* or video source on a HD15 female connector.
RGBS/Y-Cr-Cb/Y-C/C.V: Computer* (RGBS or RGsB) source, RGBS video source, Component (SDTV or
SD/HD-SDI INPUT:
IN:
LOOP OUT:
ANALOG GENLOCK (Available on OHD888-AG model only).
INPUT:
LOOP OUT:
OUTPUTS:
DVI-D OUTPUT:
SD/HD-SDI OUTPUTS:
* Optional (OPT-OHD-DATA)
PAGE 10
AC power switch (O = OFF, I = ON).
Analog stereo audio input on 2xXLR (3-pin) female connectors (L = Left, R = Right).
Ethernet communication port on a RJ45 connector (optional).
RS-232 communication port on a DB9 female connector.
Digital computer* or TV/HDTV input on DVI-D female connector.
HDTV) source, S.VIDEO (Y/C) source or Composite Video (C.V) source on BNC
female connectors.
SD-SDI or HD-SDI source on a BNC female connector.
SD-SDI or HD-SDI loopthrough.
Analog GENLOCK input (Analog HD Black and Black burst signals).
GENLOCK output (loop-through).
Computer*or TV/HDTV (digital) output on a DVI-D female connector.
2 SD-SDI or HD-SDI outputs on BNC female connectors.
