ironLogic Z-5R Web User Manual page 5

Z-5R Web
Reader Connection Terminals Group
No Designation
1 DATA1
2 GROUND
3 DATA0
4 +12V
Reader Indication Terminals Group
№ Designation
1 BEEP
2 RED
3 GREEN
Note: Connect both readers by the same protocol! Reader indication control is common for both
readers.

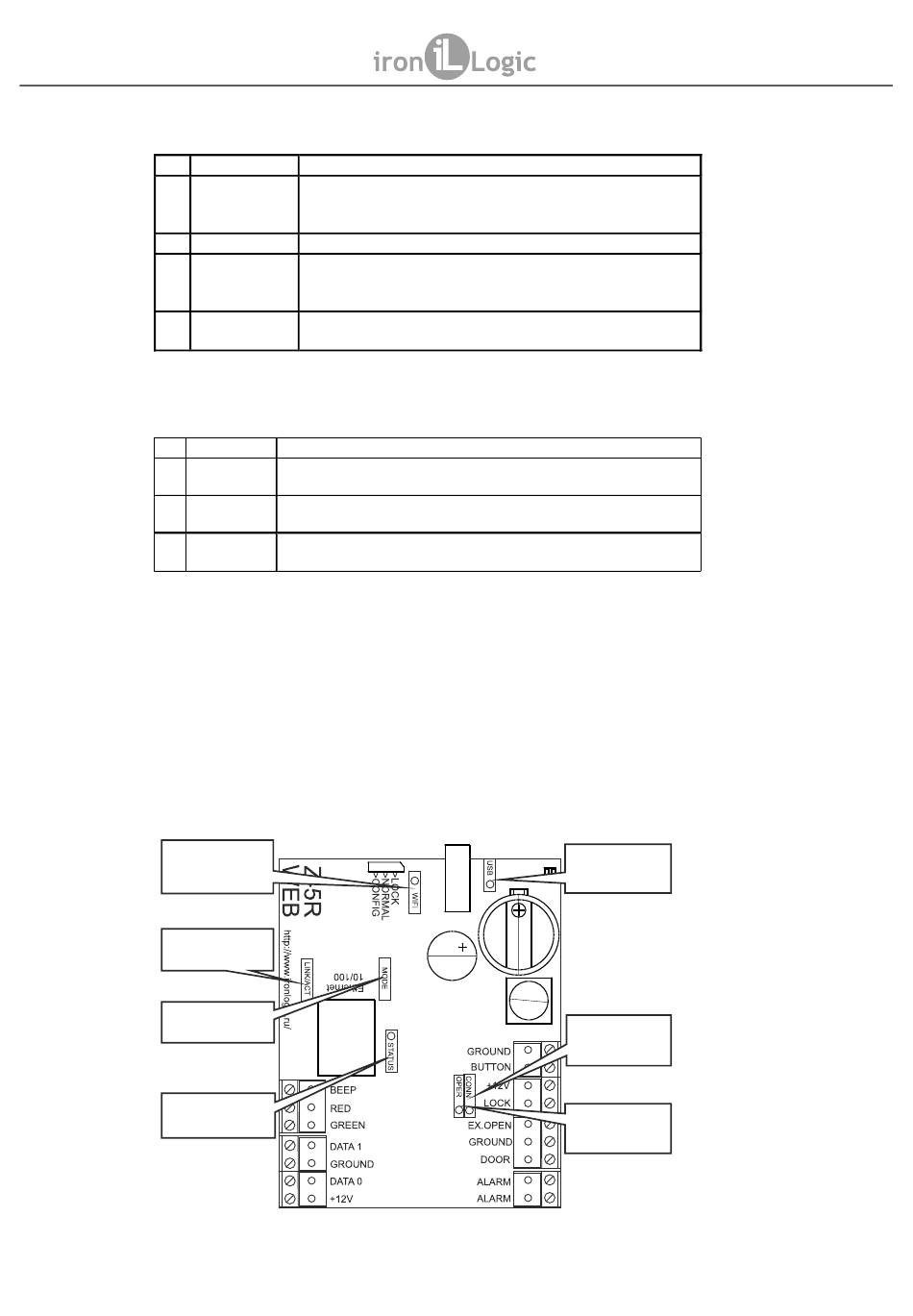

LED Indicators Layout on Controller's PCB
Indicator
WIFI
Indicator
LINK/ACT
Indicator
MODE
Indicator
STATUS
Purpose
Wiegand mode: DATA1 for reader input and DATA0
-
for reader output.
iButton™ mode: reader output signal wire (TM).
-
Reader common wire connection.
- Wiegand mode: DATA0 for reader input and DATA1
for reader output.
iButton mode: reader input signal wire (TM).
-
Power to readers. Output is protected against short-circuiting
for up to 200 mA.
Output signal for management of sound indication of readers. Low
level of a signal is active.
Output signal for control of a red LED of readers. The active is the low
level of a signal.
Output signal for control of a green LED of readers. The active is the
low level of a signal.
Purpose
Indicator
USB
Indicator
CONN
Indicator
OPER
www.ironlogic.me
page 5
