Z-5R Web

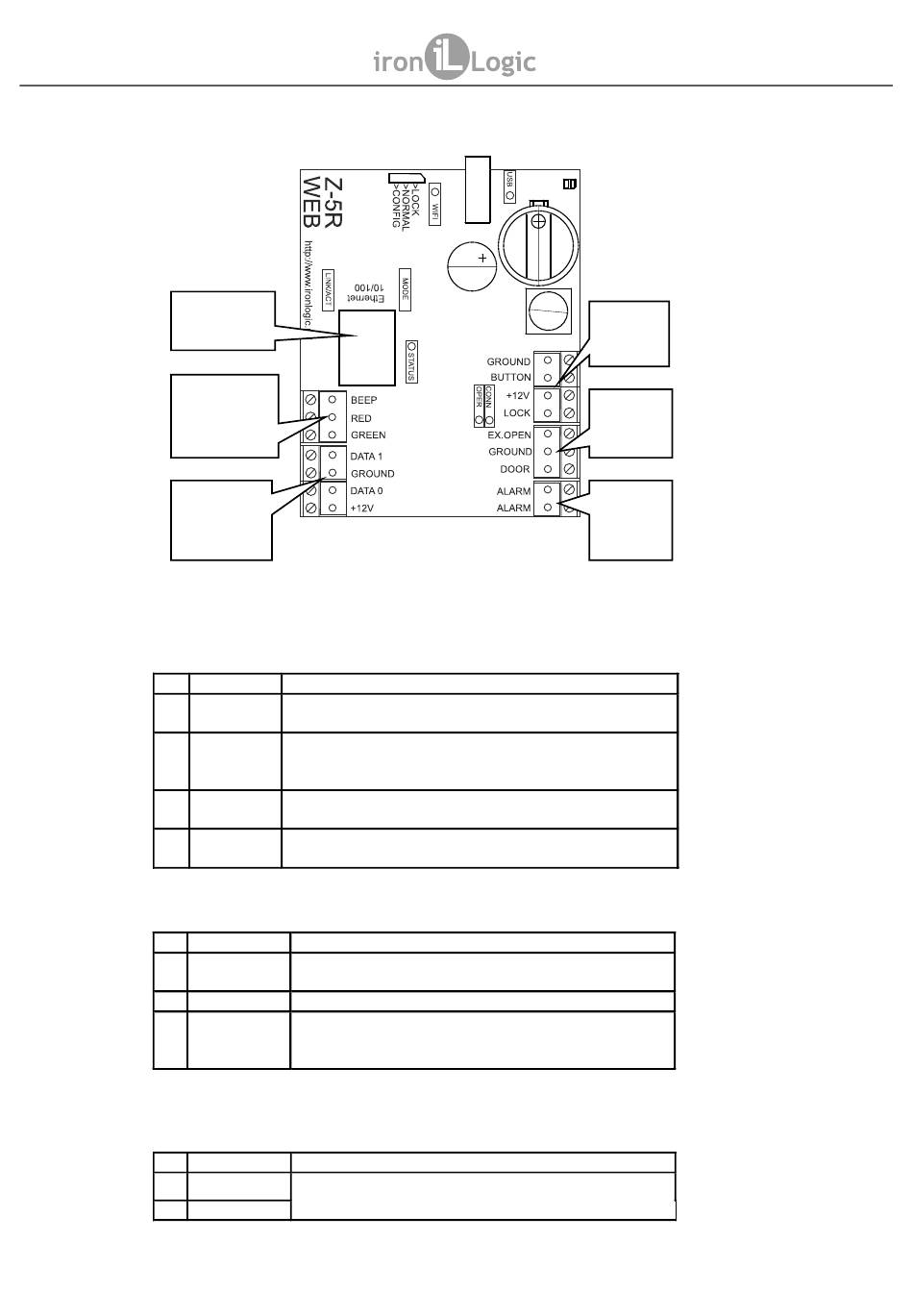

Controller Terminal Layout
socket
Ethernet
Block of plugs
of management
of indication
The block of
plugs for
connection of
readers
Terminals designation table
Power Terminals Group
No Designation
1 GROUND
2 BUTTON
3 +12V
4 LOCK
Sensors Terminals Group
No Designation
1 EX.OPEN
2 GROUND
3 DOOR
Information Terminals Group
No Designation
1 ALARM
2 ALARM
Purpose
Connection point for the (-) wire from power supply, and the
second wire from the exit button.
Input: Exit button. This terminal is multi-functional and allows
its function to be reassigned.
(+) power supply wire. Also (+) wire from the lock.
Output: Power output signal. Second (-) wire going to the lock.
The exit is the field-effect transistor drain.
Purpose
Input: Evacuation mode. Short-circuiting this signal to
GROUND switches the Controller into Evacuation mode.
Common (Ground) wire for EX.OPEN and DOOR signals.
Input: Door sensor. When the door is closed, must be short-
circuited to GROUND. This terminal is multi-functional and its
function can be reassigned.
Purpose
Output: A reed switch, connecting into security systems as a
part of the security loop.
www.ironlogic.me
Block of
power
plugs
Block of
plugs of
sensors
Block of
-
information
plugs
