Z-5R Web
To select a network, highlight it in the list and press Select button. When selected, SSID and
security type for that network are displayed in settings area. If network security is enabled, enter the
security key as well.
If no DHCP server exists on the LAN, network parameters must also be set up manually.
After setup is complete, save the parameters by pressing Save button.
5.3.3 3G Modem

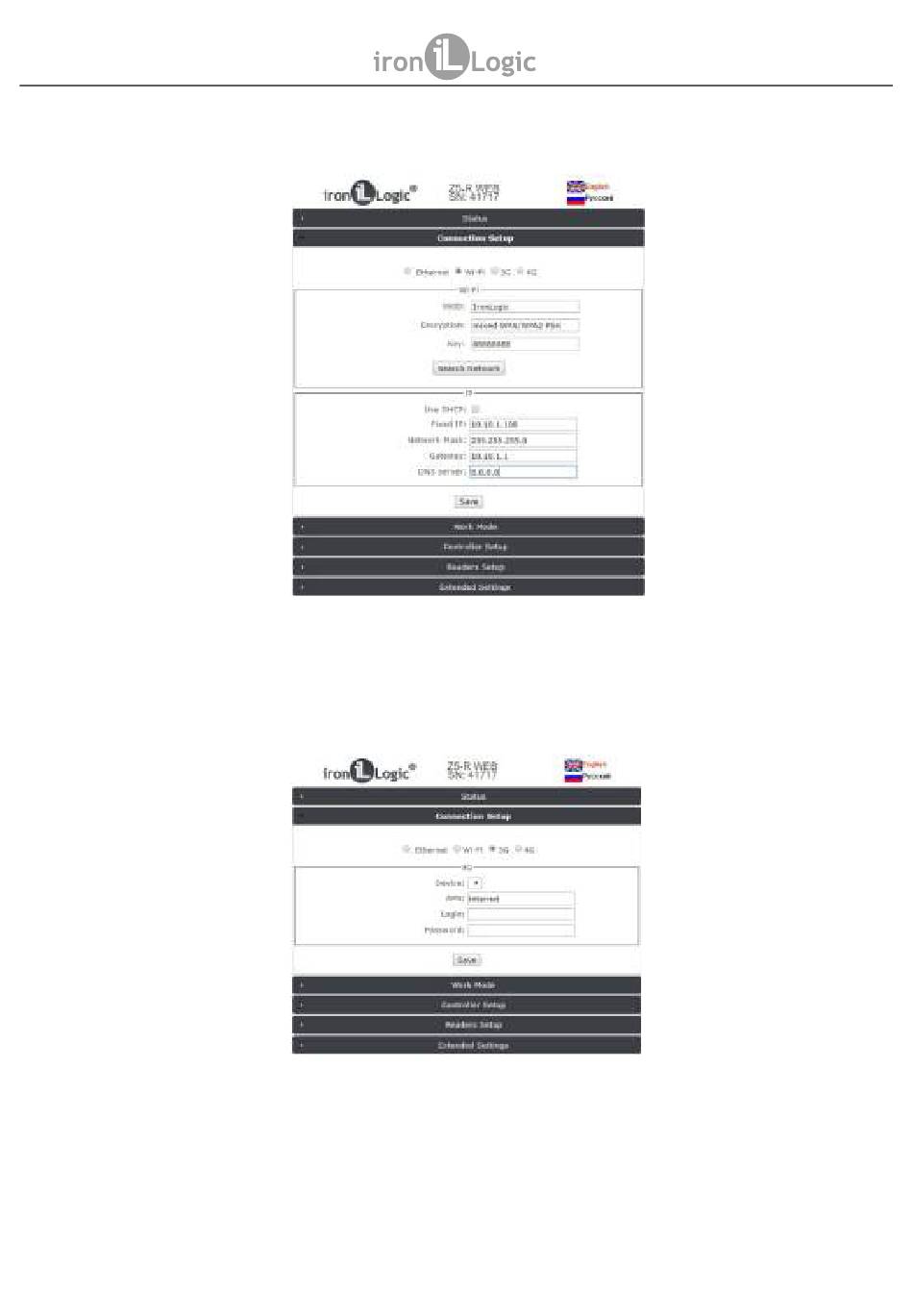

If 3G modem connection type is selected, the interface looks as follows:
Where:
Device: A drop-down list of all available modems currently connected to device USB port.
The rest of parameters must be set according to your 3G modem documentation, or obtained
from your mobile operator.
APN: Mobile operator Access Point Name.
Login: Mobile operator Access login.
Password: Mobile operator Access password.
After setup is complete, save the parameters by pressing Save button.
