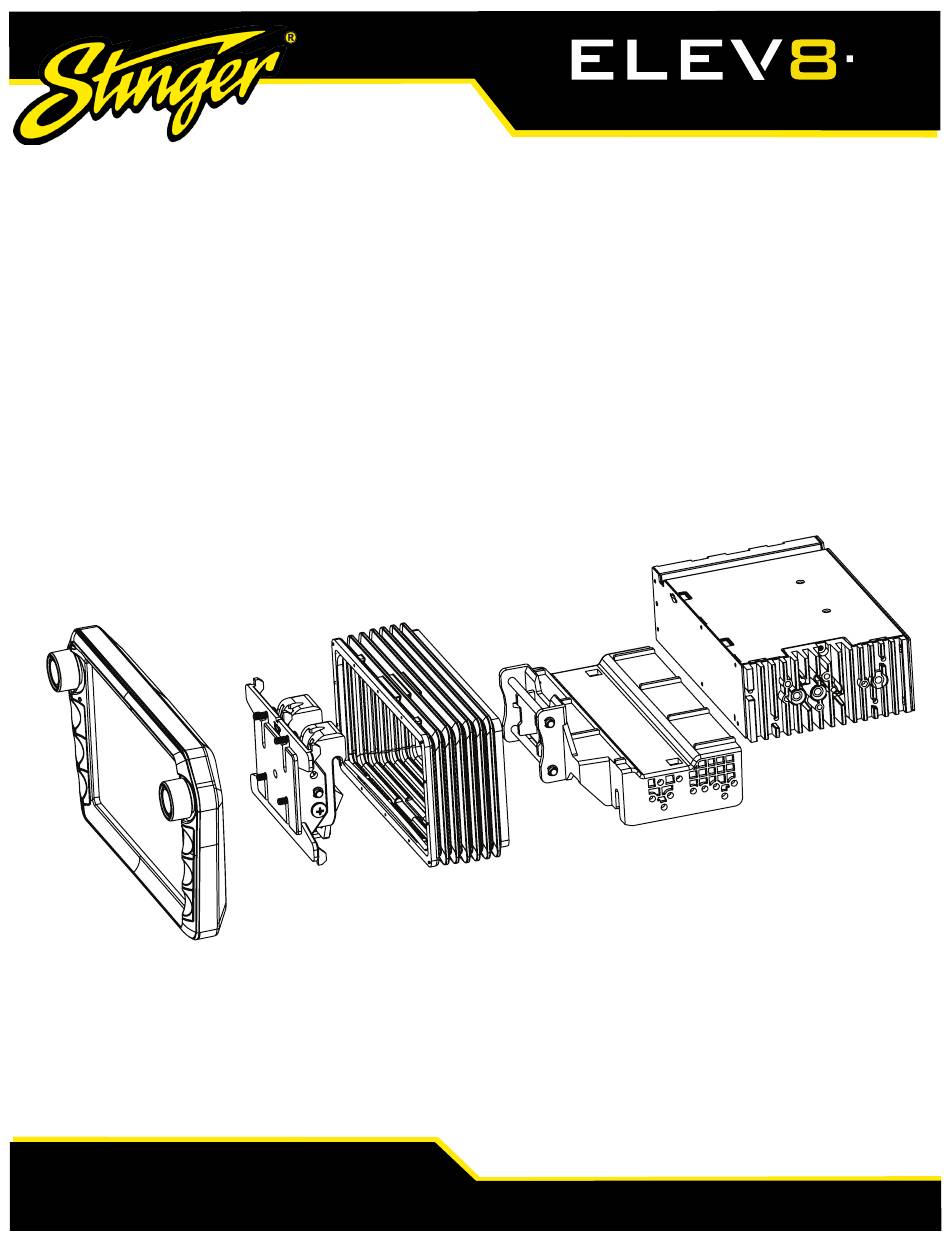

- Page 1 INSTALLATION GUIDE 8" FLOATING MULTIMEDIA DISPLAY SYSTEM MODEL NUMBER: UN1880 Copyright © 2018 StingerElectronics.com...
-
Page 2: Table Of Contents
Single DIN Dash Kit Mounting......7 its product. If you do not agree, please discontinue use and contact STINGER. This product is intended for off- Final Assembly..........8 road use and passenger use only. -
Page 3: Parts List
PARTS LIST DESCRIPTION PART NO Touch Panel Display UN1880-D Radio Module UN1880-M Mounting Brackets / Hardware Plastic Dash Mounting Bracket Display Mounting Clamp SE-1000 Metal Mounting Bracket Horizontal Display Angle Plate Rubber Boot SE-1001 M4 X 6 Screw M4 X 10 Screw M4 X 12 Screw M4 X 14 Screw SE-1002... -
Page 4: Mounting Options
MULTIPLE MOUNTING OPTIONS... M4 X 6 M4 X 10 M4 X 12 M4 X 14 M4 X 18 ELEV8 can be configured for different mounting applications: • Using a Double DIN Dash Kit (3A) • Using Double DIN Factory Radio Mounting Brackets (3B) #10 X 3/8 M5 X 10 NOTE: Depending on the... -
Page 5: Double Din Dash Kit Mounting
DOUBLE DIN DASH KIT MOUNTING Display Adjustment & Mounting: AFTERMARKET Making sure to use all 8 screws, loosely DASH KIT (NOT INCLUDED) attach the radio module and mounting bracket assembly to the side brackets of the aftermarket dash mounting kit using #10 X 3/8 screws for the bottom locations and the M5 X 10 screws for the top locations FIG. -
Page 6: Double Din Factory Bracket Mounting
DOUBLE DIN FACTORY BRACKET MOUNTING Display Adjustment & Mounting: Making sure to use all 8 screws, loosely attach the radio module and mounting FIG. A bracket assembly to the factory brackets M5 X 10 using #10 X 3/8 screws for the bottom locations and the M5 X 10 screws for the top locations (radio chassis), do not tighten. -
Page 7: Single Din Dash Kit Mounting
SINGLE DIN DASH KIT MOUNTING Display Adjustment & Mounting: AFTERMARKET Making sure to use all 4 screws, loosely DASH KIT (NOT INCLUDED) attach the plastic mounting bracket FIG. A assembly to the side brackets of the aftermarket dash mounting kit using #10 X 3/8 screws, do not tighten. -
Page 8: Final Assembly
FINAL ASSEMBLY Insert a M5 X 10 on each side of the clamp M5 X 10 assembly. Use Hole A for no vertical tilt or Hole B for 8 degrees of vertical tilt as determined in Step 3. M5 X 10 BOOT ASSEMBLY PLASTIC "TAB"... -
Page 9: Wiring & Connections
WIRING & CONNECTIONS Display Cable Power / Speaker Multi Camera LVDS Cable HDMI Input GPS Antenna USB1 CP/AA 15 Amp Fuse USB2 Radio Antenna TOSLINK AV In/Out - Rear Camera Microphone SiriusXM Tuner Green/Black Rear Left Speaker - 16 Pin Power / Speaker Harness Connect radio power and Green Rear Left Speaker +... - Page 10 WIRING & CONNECTIONS 24 Pin AV / Rear Camera Harness Audio/Video Inputs & Outputs / Rear Camera Video Input / Resistive Steering Wheel Control Inputs - To program SWC, go to SETTINGS, then select the Gear Icon, Passcode: 15500 > OK > SWC CUSTOM. Do not use if using a PAC SWI Interface. Brown / Black SWC Key 2 Analog Steering...
- Page 11 WIRING & CONNECTIONS 6 Pin SWI / IR Harness 3.5mm Input for optional Steering Wheel Control Interface (PAC Audio SWI-CP2 is recommended for full compatibility and advanced features. Visit PAC-Audio.com) Steering Wheel Control Input IR Input - Not Used 4 Pin Microphone / Camera Audio Harness Input for External Microphone (included) used for hands-free calling, CarPlay and Android Auto Optional rear camera audio input Camera Audio Input...
- Page 12 UPGRADES & OPTIONS Navigation SD Card Navigation Ready Adding optional iGo Navigation (SE-P14) is as easy as sliding a Micro SD card into the Front of radio module front of the radio module. ELEV8 and iGO are optimized for ease of use and driving safety.
