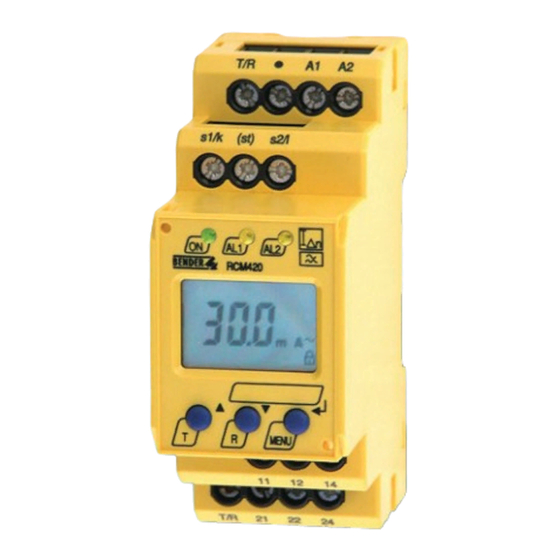

Bender RCM420 Series Technical Bulletin

Digital ground fault monitor / ground fault relay grounded and high-resistance grounded ac systems
Hide thumbs Also See for RCM420 Series:
1
2
3
4
5
6

Advertisement

Table of Contents

4
T M
RCM420 Series
Digital Ground Fault Monitor / Ground Fault Relay
Grounded and High-Resistance Grounded AC Systems
Technical Bulletin
NAE1042031 / 08.2013

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RCM420 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Bender RCM420 Series

Summary of Contents for Bender RCM420 Series

  • Page 1 RCM420 Series Digital Ground Fault Monitor / Ground Fault Relay Grounded and High-Resistance Grounded AC Systems Technical Bulletin NAE1042031 / 08.2013...
  • Page 2 BENDER Inc. • 700 Fox Chase, Coatesville PA 19320 • Ph: 800-356-4266 / 610-383-9200 • Fax: 610-383-7100 RCM420 Series Digital Ground Fault Monitor / Relay for Grounded AC Systems Description The RCM420 monitors for ground faults in grounded and high-resistance grounded AC systems, both single- and three-phase.

  • Page 3: Operating And Display Elements

    Operating and display elements Wiring diagram Load Power “ON” LED (green): Illuminates when power is received to the unit. Flashes when the current transformer connection alarm is active. Alarm LED “AL1” (yellow): Alarm 1, illuminates when the set res ponse value I has been exceeded.

  • Page 4: Technical Data

    Ground Fault Monitor RCM420 Technical data Inputs / outputs Insulation coordination acc. to IEC 60664-1 / IEC 60664-3 Rated insulation voltage 250 V Cable length for external test / reset button 0 - 32 ft (0 - 10 m) Rated impulse voltage / pollution degree 2.5 kV / III Switching elements Protective separation (reinforced insulation) between...

  • Page 5: Ordering Information

    Ordering Information Supply voltage Type Ordering No. Outputs 9.6 - 94 V 16 - 72 V (15 - 460 Hz) RCM420-D-1 B 9401 4001 2 SPDT contacts 70 - 300 V 70 - 300 V (15 - 460 Hz) RCM420-D-2 B 9401 4002 2 SPDT contacts Accessories...
