Bender LINETRAXX RCMS150 Series Manual

Residual current monitor type b with integrated measuring current transformers for earthed ac/dc systems (tn and tt systems)
Hide thumbs Also See for LINETRAXX RCMS150 Series:
Table of Contents

Advertisement

Quick Links

Download this manual

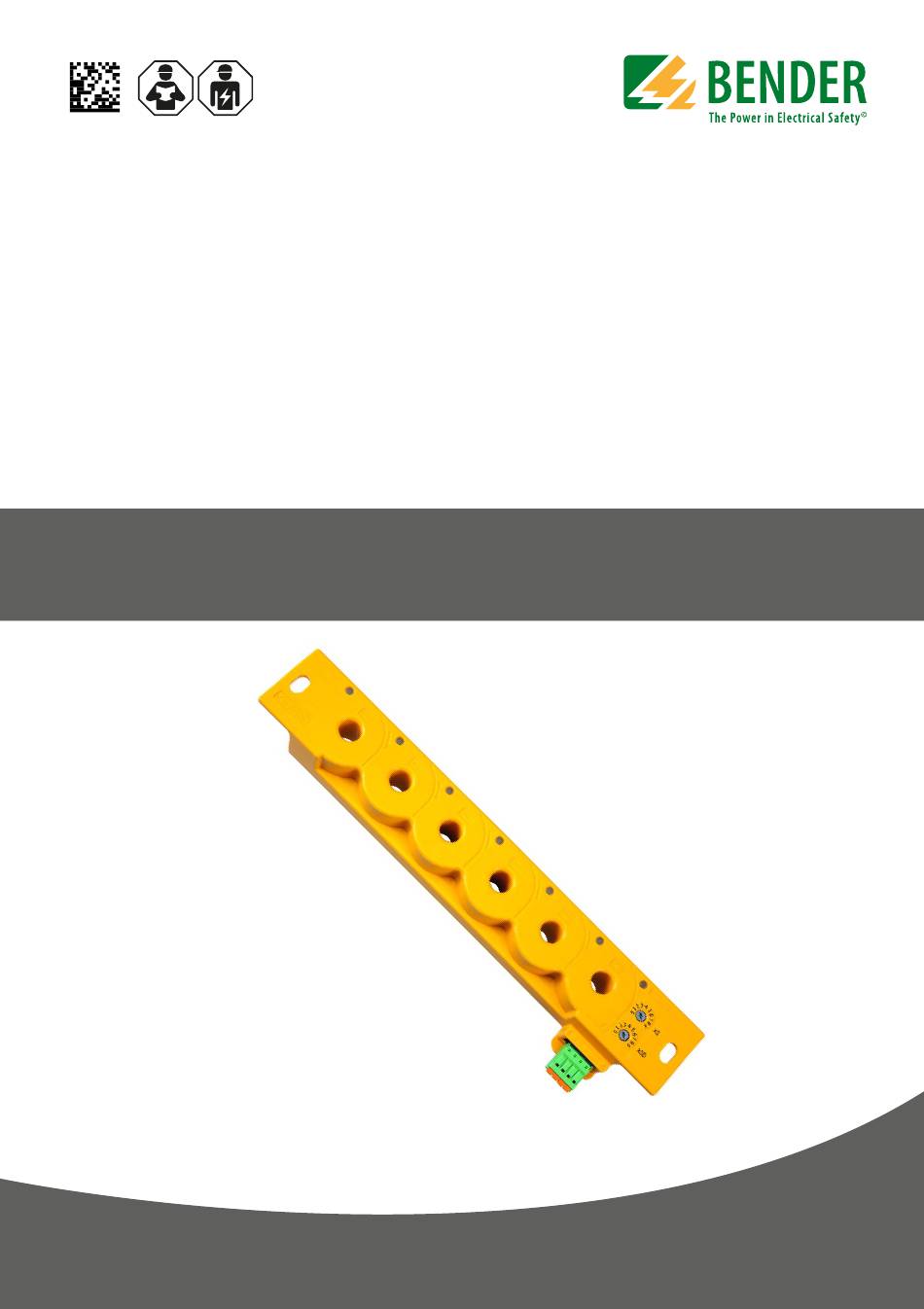

LINETRAXX® RCMS150 series
Residual current monitor type B
with integrated measuring current transformers for
earthed AC/DC systems (TN and TT systems)
EN
RCMS150_D00259_01_M_XXEN/08.2021
Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LINETRAXX RCMS150 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Bender LINETRAXX RCMS150 Series

Summary of Contents for Bender LINETRAXX RCMS150 Series

  • Page 1 LINETRAXX® RCMS150 series Residual current monitor type B with integrated measuring current transformers for earthed AC/DC systems (TN and TT systems) RCMS150_D00259_01_M_XXEN/08.2021 Manual...
  • Page 2 Bender GmbH & Co. KG Londorfer Str. 65 • 35305 Grünberg • Deutschland PO Box 1161 • 35301 Grünberg • Deutschland Tel.: +49 6401 807-0 • Fax: +49 6401 807-259 Email: info@bender.de • www.bender.de © Bender GmbH & Co. KG All rights reserved.

  • Page 3: Table Of Contents

    Table of Contents 1. Important information ................5 How to use this manual ................... 5 Technical support: service and support ............ 6 1.2.1 First level support ....................6 1.2.2 Repair service ...................... 6 1.2.3 Field service ......................6 Training courses ....................7 Delivery conditions ...................
  • Page 4 Table of Contents Wiring diagram ....................16 Commissioning ....................18 5. Display via web server ................. 20 Example of a system design ................ 20 Starting the web browser ................20 User interface web browser ................. 20 Web application: Menu overviews ............21 6.

  • Page 5: Important Information

    This manual has been compiled with great care. It might nevertheless contain errors and mistakes. Bender cannot accept any liability for injury to persons or damage to property resulting from errors or mistakes in this manual. RCMS150_D00259_01_M_XXEN/08.2021...

  • Page 6: Technical Support: Service And Support

    Delivery of replacement devices in the event of faulty or incorrectly delivered   Bender devices Extended guarantee for Bender devices, which includes an in-house repair service   or replacement devices at no extra cost Telephone: +49 6401 807-780** (technical issues)

  • Page 7: Training Courses

    ZVEI (Zentralverband Elektrotechnik- und Elektronikindustrie e. V.) (German Electri- cal and Electronic Manufacturer's Association) also applies. Sale and delivery conditions can be obtained from Bender in printed or electronic for- mat. 1.5 Inspection, transport and storage Inspect the dispatch and equipment packaging for damage, and compare the contents of the package with the delivery documents.

  • Page 8: Warranty And Liability

    13 August 2005 must be taken back by the manufacturer and disposed of properly. For more information on the disposal of Bender devices, refer to our homepage at www.bender.de > Service & support.

  • Page 9: Safety Instructions

    2.1 General safety instructions Part of the device documentation in addition to this manual is the enclosed "Safety in- structions for Bender products". 2.2 Work activities on electrical installations Only qualified personnel are permitted to carry out the work necessary to install, commission and run a device or system.

  • Page 10: Intended Use

    Safety instructions 2.3 Intended use The RCMS150… devices are suitable for measuring residual currents up to I = 500 mA Δ in a frequency range of DC…2 kHz. The monitored circuit is rated for a voltage of 300 V and a load current of 32 A. If cables with double or reinforced insulation are routed through the measuring current transformers, higher voltages may occur.

  • Page 11: Product Description

    RCMS150-01 (RS-485 interface with Modbus RTU protocol)   – Compatible with other Modbus RTU-capable device series from Bender, such as the RCMB300 series and RCMB13…-01 in a system setup – Address range 1…99, can be adjusted directly on the device via detent poten- tiometers –...

  • Page 12: Approvals And Certifications

    Product description If one of the four set response values I is exceeded, the assigned response delay ΔN… starts. If the response value continues to be exceeded, the corresponding alarm on… message (prewarning or main alarm) is indicated on the gateway after the response de- lay t has elapsed.

  • Page 13: Mounting, Connection And Commissioning

    Mounting, connection and commissioning 4. Mounting, connection and commissioning Only qualified personnel are permitted to carry out the work necessary to install, commission and run a device or system. Risk of electrocution due to electric shock! Touching live parts of the system carries the risk of: An electric shock DANGER ...

  • Page 14: Type Of Mounting

    Mounting, connection and commissioning 4.1.2 Type of mounting The devices of the RCMS150 series are intended for screw mounting. As an alternative, they can also be mounted on a DIN rail using the optionally available fastening set. 4.1.3 Dimension diagram A B + - Fig.

  • Page 15: Display And Operating Elements

    Mounting, connection and commissioning 4.2.1 Display and operating elements ON/COM Fig. 4.2: Display and operating elements Display and operating elements legend Slot for screw mounting Alarm LEDs for channels K1…6 (yellow) Line feed-through of the measuring current transformers for the channels K1…6 ON LED: Power on LED (green) Detent potentiometer: Setting the unit place of the bus address (BMS bus or Modbus RTU)

  • Page 16: Wiring Diagram

    Mounting, connection and commissioning Meaning of the LEDs Meaning lights Normal operation indicator RCMS150: Device error or BMS bus address set flashes quickly incorrectly flashes slowly RCMS150-01: Device error (green) flashes very RCMS150-01: Identify device (via Modbus RTU) quickly Flash code Interface address output (see page 19) Main alarm (response value I exceeded)
  • Page 17 Mounting, connection and commissioning ON/COM x 10 A B + Fig. 4.3: Wiring diagram RCMS150… Detail: terminal RS-485 interface (BMS bus or Modbus RTU) Supply voltage U DC 24 V +24V GND Terminating resistor 120 Ω (required for both the first and the last bus device) Fig.

  • Page 18: Commissioning

    Mounting, connection and commissioning 4.4 Commissioning 1. Mount the RCMS150… 2. Set the bus address When assigning the bus addresses make sure that each address is only assigned once on the bus! Address setting RCMS150 (BMS bus) Factory setting bus address Setting range BMS bus 2…90 Move the detent potentiometers to the corresponding...
  • Page 19 Mounting, connection and commissioning 4. Route outgoing circuits to be monitored through the current transformers Risk of short circuit! Only insulated conductors with an insulation that is suitable for at least the monitored voltage may be routed through the measuring current CAUTION transformer.

  • Page 20: Display Via Web Server

    Display via web server 5. Display via web server The measured values (measuring channels) of the individual measuring current trans- formers of the RCMS150… can be displayed in the web browser. 5.1 Example of a system design RCMS150 COM465IP 120 Ω (DIP switch COM465IP) 120 Ω...

  • Page 21: Web Application: Menu Overviews

    Display via web server 5.4 Web application: Menu overviews Menu overview RCMS150 (BMS bus) Description Current measured values and alarm states of Overview the 12 measuring channels (1…6: RMS; 7…12: DC) Generate e-mails to report device failure. Set recipients via the gateway for each Configure e-mail channel.
  • Page 22 Display via web server Menu overview RCMS150-01 (Modbus RTU) Description Current measured values/alarm states, Overview of the 12 measuring channels software Alarms/ meas- Graphical representation K1…6, each I and I Δ RMS Δ DC ured val- Device Alarm text device/device failure Description Measuring Alarm texts of the measuring channels...
  • Page 23 Display via web server Menu overview RCMS150-01 (Modbus RTU) Description Run response test. A current is Test Channel 1…6 induced in the measuring current transformers via a test winding. Reset Channel 1…6 Clear fault memory Commu- Control A test alarm is set at the selected nication Measuring channel 1…12 measuring channel on the interface.

  • Page 24: Overview Modbus Registers (Rcms150-01 Only)

    Overview Modbus registers (RCMS150-01 only) 6. Overview Modbus registers (RCMS150-01 only) This chapter provides a complete description of the Modbus registers to facilitate ac- cess to information. RCMS150-01 supports the following Modbus functions: 1. Register for reading values (Read Holding Register; function code 0x03) 2.

  • Page 25: Overview Of The Register Ranges

    Device name String UTF8 RCMS150-01\0* 00018 Article number String UTF8 B94053026\0* 00034 Serial number String UTF8 — 00050 Manufacturer name String UTF8 Bender\0* Manufacturer Internet 00066 String UTF8 www.bender.de\0* address Version number multi- 00082 Device version UINT16 plied by 100.
  • Page 26 Overview Modbus registers (RCMS150-01 only) Register Property Description Format Comment/Factory settings* MU1 Application 00091 UINT16 489* D number 00092 MU1 Application Version UINT16 — MU1 Application 00093 INT16 Build number MU1 Bootloader 00094 UINT16 D number 00095 MU1 Bootloader Version UINT16 MU1 Bootloader 00096...

  • Page 27: Measured Values

    Overview Modbus registers (RCMS150-01 only) 6.3 Measured values Register Property Description Format Comment/unit 01000 Residual current measured value (K1 RMS) Float32 01002 Residual current measured value (K1 DC) Float32 01004 Status K1 UINT32 01006 Residual current measured value (K2 RMS) Float32 01008 Residual current measured value (K2 DC) Float32...
  • Page 28 Overview Modbus registers (RCMS150-01 only) Register Property Description Format Comment/unit Residual current measured value min 01038 Float32 (K1 RMS) Residual current measured value min 01040 Float32 (K1 DC) 01042 Status K1 min UINT32 Residual current measured value min 01044 Float32 (K2 RMS) Residual current measured value min 01046...
  • Page 29 Overview Modbus registers (RCMS150-01 only) Register Property Description Format Comment/unit Residual current measured value average 01076 Float32 (K1 RMS) Residual current measured value average 01078 Float32 (K1 DC) 01080 Reserved Residual current measured value average 01082 Float32 (K2 RMS) Residual current measured value average 01084 Float32 (K2 DC)
  • Page 30 Overview Modbus registers (RCMS150-01 only) Register Property Description Format Comment/unit Residual current measured value max 01114 Float32 (K1 RMS) Residual current measured value max 01116 Float32 (K1 DC) 01118 Status K1 max UINT32 Residual current measured value max 01120 Float32 (K2 RMS) Residual current measured value max 01122...
  • Page 31 Overview Modbus registers (RCMS150-01 only) Status K1…6 Bit number Description DC prewarning DC main alarm RMS prewarning RMS main alarm Manual self test Device error 6…31 Reserved Tab. 6.3: Status K1…6 Error codes Register 01036 Error Error Description Action code Check if ambient temperature is within the per- missible range.

  • Page 32: Interface Parameters

    Overview Modbus registers (RCMS150-01 only) Error Error Description Action code Parameters outside permissible limits or error while saving. Switch the device off and on again. Reset the cor- Affected channel: responding channel to factory settings: via the μC parameter 9.10 Gateway >...

  • Page 33: Parameters

    Overview Modbus registers (RCMS150-01 only) 6.5 Parameters Factory Register Property Description Format Unit Setting range Step size setting 32100 Reserved Response value 32102 Float32 % 10…25 % 0.1 % 15 % Hysteresis 32104 Float32 0 s …10 min 10 ms 32106 Float32 0.5 s…10 min...
  • Page 34 Overview Modbus registers (RCMS150-01 only) Factory Register Property Description Format Unit Setting range Step size setting Response value 32128 Float32 % 10…25 % 0.1 % 15 % hysteresis 32130 Float32 0 s…10 min 10 ms 32132 Float32 0.5 s…10 min 10 ms 0.5 s start-up...
  • Page 35 Overview Modbus registers (RCMS150-01 only) Factory Register Property Description Format Unit Setting range Step size setting 32178 Reserved Response value hys- 32180 Float32 % 10…25 % 0.1 % 15 % teresis 32182 Float32 0 s…10 min 10 ms 32184 Float32 0.5 s…10 min 10 ms 0.5 s...
  • Page 36 Overview Modbus registers (RCMS150-01 only) Factory Register Property Description Format Unit Setting range Step size setting Response value hys- 32206 Float32 % 10…25 % 0.1 % 15 % teresis 32208 Float32 0 s…10 min 10 ms 32210 Float32 0.5 s…10 min 10 ms 0.5 s start-up...
  • Page 37 Overview Modbus registers (RCMS150-01 only) Factory Register Property Description Format Unit Setting range Step size setting 32256 Copy parameters UINT32 — Unix 0… 2) 3) 32258 UINT32 Time time 0xFFFFFFFF 2) 4) 32260 Float32 -12 … +14 0.25 Time zone 0 = off 1 = on 2) 5)

  • Page 38: Control Commands

    Overview Modbus registers (RCMS150-01 only) 6.6 Control commands Factory Register Property Description Format Setting range Comment setting Allow register write 0 = Deny 59000 UINT16 access 1 = Allow 59001 UINT16 Read 0 = No test per- 59002 UINT16 formed yet 59003 UINT16 1 = Test running...
  • Page 39 Overview Modbus registers (RCMS150-01 only) Factory Register Property Description Format Setting range Comment setting 59023 UINT16 — 59024 UINT16 — 59025 UINT16 — Offset meas- 1 = Perform offset urement measurement 59026 UINT16 — 59027 UINT16 — 59028 UINT16 — 59029…59999 Reserved Tab.

  • Page 40: Glossary

    Glossary 7. Glossary Terms Explanation In the overview: measuring channel number 1…12 1…6: RMS of channels K1…6 7…12: DC of channels K1…6 RCMS150…has 6 measuring current transformers (= chan- nels). 2 measuring channels (RMS and DC) are available for Channel each channel, which makes 12 measuring channels in total: 1…6: residual current AC/DC sensitive (RMS) 7…12: residual current DC...
  • Page 41 Glossary Terms Explanation In the event of a main alarm, a message is sent via the bus and the respective LED lights up on the RCMS. Is triggered Exceeding the set response value during residual cur- Main alarm   rent measurement Fault of measuring current transformer ...
  • Page 42 Glossary Terms Explanation Delay on release t Starts when the condition that triggers the message (for pre- warning or main alarm) no longer exists. The RCMS150… t(off ) only stops signalling if the condition that triggers the mes- sage no longer exists after the delay on release has elapsed. Setting range: 0…10 minutes.

  • Page 43: Technical Data

    Technical data 8. Technical data ( )* = factory settings 8.1 Tabular data Insulation coordination according to IEC 60664-1 The data are valid for the monitored primary circuit to the output circuit Primary circuit................Primary conductors routed through the current transformer Output circuit ................................(+, -, A, B) Rated insulation voltage..............................300 V Overvoltage category.................................
  • Page 44 Technical data Response tolerance Δn1/2 DC, 10…500 Hz ............................-20…0 % 500 Hz…2 kHz ..........................-20…+100 % Hysteresis ..............................10…25 % (15 %)* Time response Start-up delay ..........................0.5…600 s (0.5 s)* start-up Response delay ............................0…600 s (1 s)* on1 RMS/DC ............................
  • Page 45 Technical data Classification of mechanical conditions acc. to IEC 60721 Stationary use (IEC 60721-3-3)..........................3M11 Transport (IEC 60721-3-2) ...........................2M4 Long-term storage (IEC 60721-3-1) .........................1M12 Connection Connection type ........................dual plug-in push-wire terminal Connection properties rigid/flexible/conductor sizes................. 0.2…1.5 mm² / AWG 24…16 Multi-conductor connection (2 conductors with the same cross section) rigid ............................0.2…1.5 mm²...

  • Page 46: Factory Settings Of The Modbus Interface

    Technical data 8.2 Factory settings of the Modbus interface For an overview of the factory-set parameters, see table 6.6. 8.3 Standards, approvals, certifications B94053025 only UL508 in preparation CSA in preparation LR in preparation 8.4 Ordering information Supply voltage Type Protocol Art.

  • Page 47: Document Revision History

    Technical data Accessories RCMS RCMS Description Type Art. No. 150-01 COM465IP B95061065 CP907-I (flush-mounted Condition monitor with inte- B95061031 enclosure) grated gateway CP907-I (control cabinet B95061032 door mounting) RS-485 repeater DI-1DL B95012047 — RCMS460-D-1 B94053001 Residual current monitoring — RCMS460-D-2 B94053002 system (In this case, no condi- tion monitor/gateway is neces-...
