2

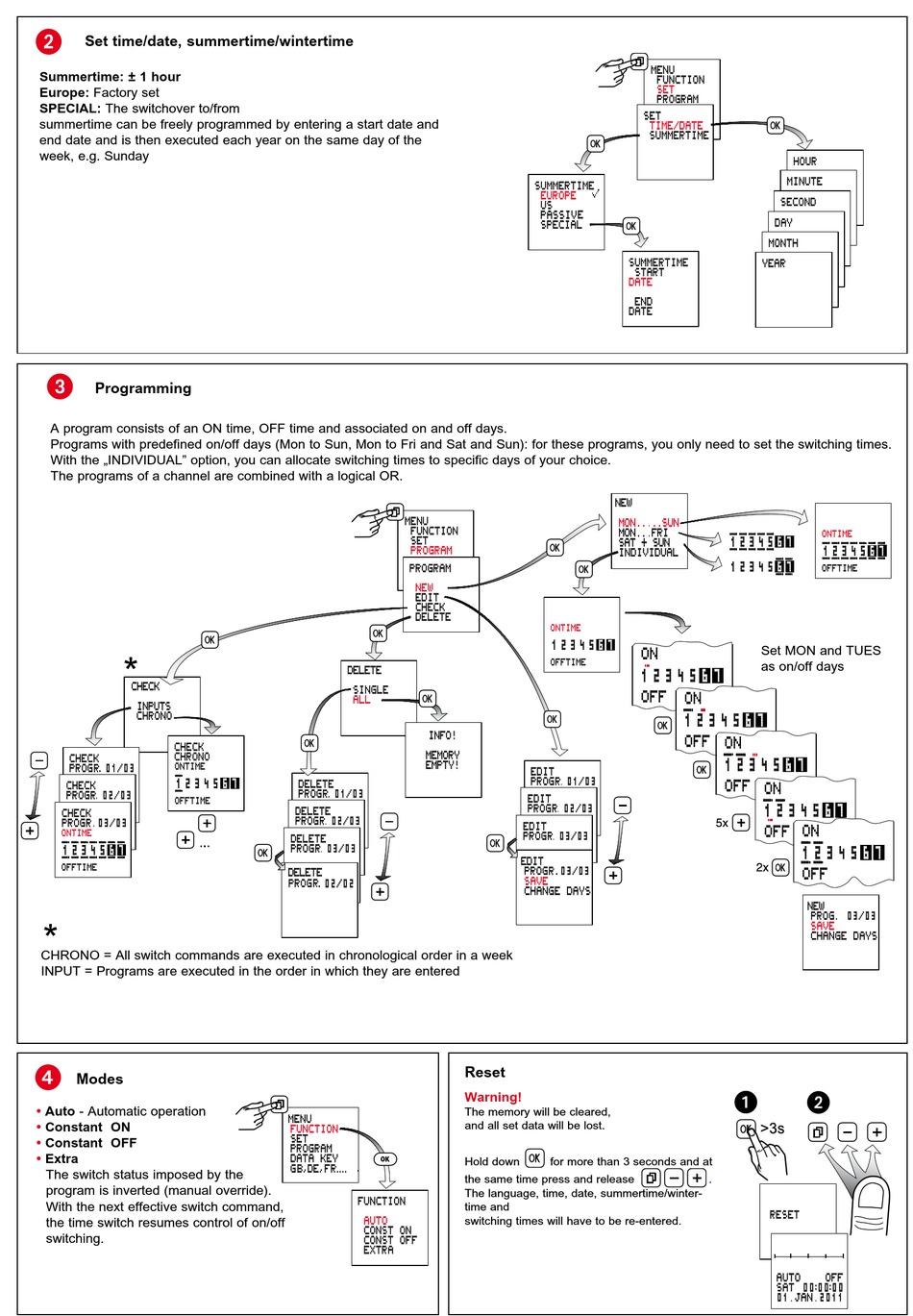

Set time/date, summertime/wintertime
Summertime: ± 1 hour
Europe: Factory set
SPECIAL: The switchover to/from
summertime can be freely programmed by entering a start date and
end date and is then executed each year on the same day of the
week, e.g. Sunday
3
Programming
A program consists of an ON time, OFF time and associated on and off days.
Programs with predefined on/off days (Mon to Sun, Mon to Fri and Sat and Sun): for these programs, you only need to set the switching times.
With the „INDIVIDUAL" option, you can allocate switching times to specific days of your choice.
The programs of a channel are combined with a logical OR.
*
*
C HRONO = All switch commands are executed in chronological order in a week
INPUT = Programs are executed in the order in which they are entered
4
Modes
•
Auto - Automatic operation
•
Constant ON
•
Constant OFF
•
Extra
The switch status imposed by the
program is inverted (manual override).
With the next effective switch command,
the time switch resumes control of on/off
switching.
Reset
Warning!
The memory will be cleared,
and all set data will be lost.
Hold down
for more than 3 seconds and at
the same time press and release
The language, time, date, summertime/winter-
time and
switching times will have to be re-entered.
Set MON and TUES
as on/off days
.
