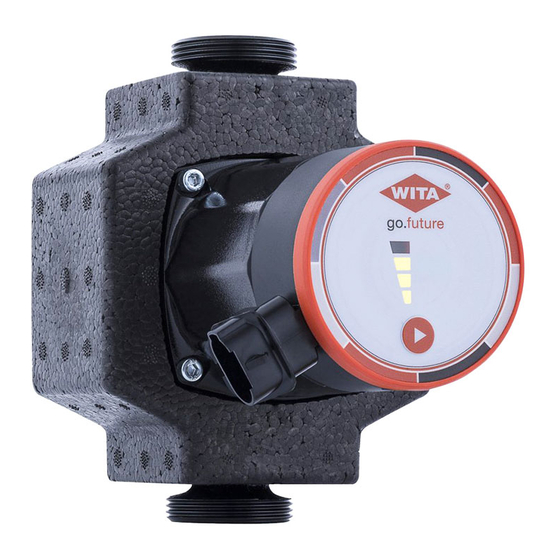

Summary of Contents for WITA go.future light 40 series
Page 1
NUR ORIGINAL MIT DER RAUTE® WITA go.future light 40-XX | 60-XX ≤ 0,18 ≤ 0,20 ORIGINAL EINBAU- UND BETRIEBSANLEITUNG SEITE 2–16 TRANSLATION OF THE ORIGINAL INSTALLATION AND OPERATING INSTRUCTIONS PAGE 18–32 www.wita.de...
Bedienungsanleitung WITA go.future light 40-XX | 60-XX EU KONFORMITÄTSERKLÄRUNG Name des Ausstellers: WITA-Wilhelm Taake GmbH Display HE Pumpen Pumpen-, Armaturen- und Regeltechnik Böllingshöfen 85 D-32549 Bad Oeynhausen Gegenstand der Erklärung: Heizungs-Umwälzpumpe Typ: go.future light Ausführung: 40-xx, 60-xx Wir erklären in alleiniger Verantwortung, dass die oben genannten Produkte, auf die sich diese EU-Konformitätserklärung bezieht, mit den folgenden Normen und...
Bedienungsanleitung WITA go.future light 40-XX | 60-XX 2 Sicherheitshinweise 2.1 Allgemeines Diese Einbau- und Betriebsanleitung ist Bestandteil des Produktes und enthält grundlegende Informationen, die bei Montage, Betrieb und Wartung zu beachten sind. Aus diesem Grund muss sie unbedingt vor der Aufstellung vom Monteur und dem zuständigen Fachpersonal bzw.
Bedienungsanleitung WITA go.future light 40-XX | 60-XX Hier stehen nützliche Hinweise zur Hinweis Handhabung des Produktes. Sie machen auf mögliche Schwierigkeiten aufmerk- sam und sollen für einen sicheren Be- trieb sorgen. Direkt am Produkt angebrachte Hinweise wie zum Beispiel: • Drehrichtungspfeil •...
Bedienungsanleitung WITA go.future light 40-XX | 60-XX 2.4 Gefahren bei Nichtbeachtung der Sicherheitshinweise Werden die Sicherheitshinweise nicht beachtet, kann dies eine Gefährdung von Personen, Umwelt und Anlage zur Folge haben. Die Nichtbeachtung der Sicherheitshinweise führt zum Verlust jeglicher Schadenersatzansprüche. Mögliche Gefährdungen sind zum Beispiel: •...
Bedienungsanleitung WITA go.future light 40-XX | 60-XX • Gefährdungen durch elektrische Energie müssen ausgeschlossen werden. Hierzu sind z. B. die Vorschriften des VDE und der lokalen Energieversorgungsunternehmen zu beachten. Display HE Pumpen • Sollten an der Anlage Gefahren durch heiße oder kalte Teile auftreten, so müssen diese mit einem Berührungsschutz ver-...
Bedienungsanleitung WITA go.future light 40-XX | 60-XX zugelassenes Zubehör verwendet werden. Werden andere Teile verwendet, so ist eine Haftung des Herstellers für die daraus entstehenden Folgen ausgeschlossen. 2.9 Unzulässige Betriebsweisen Wird die Pumpe vom Netz getrennt, muss vor Wiedereinschal- ten eine Wartezeit von mindestens 1 Minute eingehalten werden.
Bedienungsanleitung WITA go.future light 40-XX | 60-XX 4 Bestimmungsgemäße Verwendung Die WITA Hocheffizienzpumpen go.future light sind für das Umwälzen von Warmwasser in Zentralheizungen konzipiert und eignen sich auch zur Display HE Pumpen Förderung dünnflüssiger Medien im Bereich Industrie und Gewerbe. Sie sind auch für solartechnische Anlagen geeignet.
Bedienungsanleitung WITA go.future light 40-XX | 60-XX Zulaufdruck zulässiger Einsatzbereich Medien- Mindest-Zulaufdruck Temperaturbereich zulässige temperatur bei maximaler Medientemperatur Umgebungstemperatur < 75 °C 0,05 bar 0,005 MPa 0,5 m 75 °C - 90 °C 0,3 bar 0,03 MPa 3,0 m 25 °C 5 °C bis 110 °C...
Bedienungsanleitung WITA go.future light 40-XX | 60-XX Die Anzeige Kennlinienstufe permanent leuchtende LED = Konstantstufen I - IV blinkende LED = Proportionalstufen 1 – 4 Display HE Pumpen Auswahl der Betriebsart Bei dieser Pumpe haben Sie die Möglichkeit zwischen folgenden Betriebszuständen zu wählen: 1.
Bedienungsanleitung WITA go.future light 40-XX | 60-XX Entlüftungsprogramm Durch längeres Drücken der Taste (8 – 13 sek.) wird ein ca. 4,5 Minuten dauerndes Entlüftungs- programm gestartet. Die vier Leuchtdioden leuchten als Lauflicht in Auf- und Abwärts-Richtung und das Programm durchläuft Stufen mit unterschiedlichen Drehzahlen und unterschiedlicher Dauer.
Bedienungsanleitung WITA go.future light 40-XX | 60-XX Soll die Einbaulage geändert werden, so muss das Motorgehäuse wie folgt gedreht werden (Fig. 2a bis 2d): • Innensechskantschrauben lösen • Motorgehäuse verdrehen Display HE Pumpen • Innensechskantschrauben wieder eindrehen und festziehen. Fig. 2a Fig.
Bedienungsanleitung WITA go.future light 40-XX | 60-XX Montage des Netzsteckers Click Click Schließen Sie das Netzkabel wie dargestellt an die Pumpe an. Vorsicht Netzspannung! Unbe- dingt die erforderlichen Schutz-Maßnahmen, VDE-Vorschriften und örtlichen Bestimmungen be- achten. Der Leiterquerschnitt darf nicht kleiner als 0,75 mm2 sein. Bei Verwendung von feindrähtigen Leitungen sind Aderendhülsen zu benutzen.
Bedienungsanleitung WITA go.future light 40-XX | 60-XX 11 Wartung/Service Vor Wartungs-, Reinigungs- und Reparaturarbeiten Anlage spannungsfrei schalten und gegen unbefugtes Wiedereinschalten sichern. Display HE Pumpen Bei hohen Wassertemperaturen und Systemdrücken Pumpe vorher abkühlen lassen. Es besteht Verbrühungsgefahr! 12 Störungen, Ursachen und Beseitigungen Wartungsarbeiten oder Reparaturversuche dürfen nur von Fachpersonal unternommen werden.
Die Pumpe sowie deren Einzelteile gehören nicht in den Hausmüll sondern Hinweis müssen umweltgerecht entsorgt werden! Nehmen Sie hierfür bitte die öffentlichen oder privaten Entsorgungsgesellschaften in Anspruch. Im Downloadbereich unserer Homepage befindet sich eine Auflistung der in unseren Produkten verwendeten Materialien. (www.wita.de).
Operating instrutions WITA go.future light 40-XX | 60-XX EC Declaration of Conformity Name of the issuer: WITA-Wilhelm Taake GmbH Display HE Pumpen Pump, valve and control technology Böllingshöfen 85 D-32549 Bad Oeynhausen Subject of the declaration: Heat circulation pump Type: go.future light...
Operating instrutions WITA go.future light 40-XX | 60-XX 2 Safety Instructions 2.1 General These installation and operating instructions are a part of the product, and contain basic information that must be observed during installation, operation and maintenance. For this reason, the installer and specialist personnel or operators must read these instructions prior to set-up.
Operating instrutions WITA go.future light 40-XX | 60-XX This symbol indicates useful information Note for handling the product. It indicates potential difficulties and aims to ensure safe operation. Signs attached directly on the product, such as: • direction of rotation arrow •...
Operating instrutions WITA go.future light 40-XX | 60-XX 2.4 Danger of not observing safety instructions Not observing the safety information can endanger persons, the environment and the system. Not observing the safety instructions shall result in the loss of any and all claims to warranty.
Operating instrutions WITA go.future light 40-XX | 60-XX • Observe the instructions in local or general regulations (e.g. IEC, VDE, etc.), and those of the local energy supplier. • In the event of hazards arising from the system due to Display HE Pumpen contact with hot or cold parts, these parts must be fitted...
Operating instrutions WITA go.future light 40-XX | 60-XX bear no liability for any consequences resulting from the use of other parts. 2.9 Unpermitted operation If the pump is disconnected from the power supply, wait at least 1 minute before reactivating. Otherwise, the pump's inrush current limit has no effect, which can lead to functional errors or damage to any connected heating controller.
Operating instrutions WITA go.future light 40-XX | 60-XX 4 Intended Use The WITA go.future light pumps are designed for circulating hot water in central heating systems, and are also suitable for Display HE Pumpen conveying thin liquid media in industry and commerce.
Operating instrutions WITA go.future light 40-XX | 60-XX Inlet pressure Permissible range of application fluid Minimum inlet pressure Temperature range Permissible fluid temperature at maximum temperature ambient temperature < 75 °C 0.05 bar 0.005 MPa 0.5 m 75 °C - 90 °C 0.3 bar...
Operating instrutions WITA go.future light 40-XX | 60-XX The indication Characteristic Permanently bright LED = constant stages I - IV Flashing LED = proportional stages 1 - 4 Selection of the operating state With this pump, you can choose between the following operating states: 1.
Operating instrutions WITA go.future light 40-XX | 60-XX Venting program As a result of pressing the key longer (8 - 13 sec.) a permanent air-extraction program of approx. 4.5 minutes is started. The four light-emitting diodes light up as strip lighting in an upwards and downwards direction and the program runs through the stages with different rotation speeds and for different durations.
Operating instrutions WITA go.future light 40-XX | 60-XX If the installation position should be changed, the motor housing must be turned as follows (Fig. 2a to 2d): • Loosen hexagon socket bolts • Twist off motor housing Display HE Pumpen •...
Operating instrutions WITA go.future light 40-XX | 60-XX Assembling the power plug Click Click Connect the power cable to the pump as shown. Caution: Line voltage! Observe the required protective measures, national body regulations and local provisions at all times. The cable crosssection may be no smaller than 0.75 mm...
Operating instrutions WITA go.future light 40-XX | 60-XX 11 Service and Maintenance Switch off the power to the system before performing maintenance, cleaning or repair work, and secure it against unauthorised reactivation. Display HE Pumpen Allow the pump to cool down in the event of high temperatures and system pressures.
Operating instrutions WITA go.future light 40-XX | 60-XX Error indication or possible causes remedy Error code in the display of the pump The four LED's are flashing Rotor blocked Switch the pump off and secure against being swit- one or two times ched back on.
