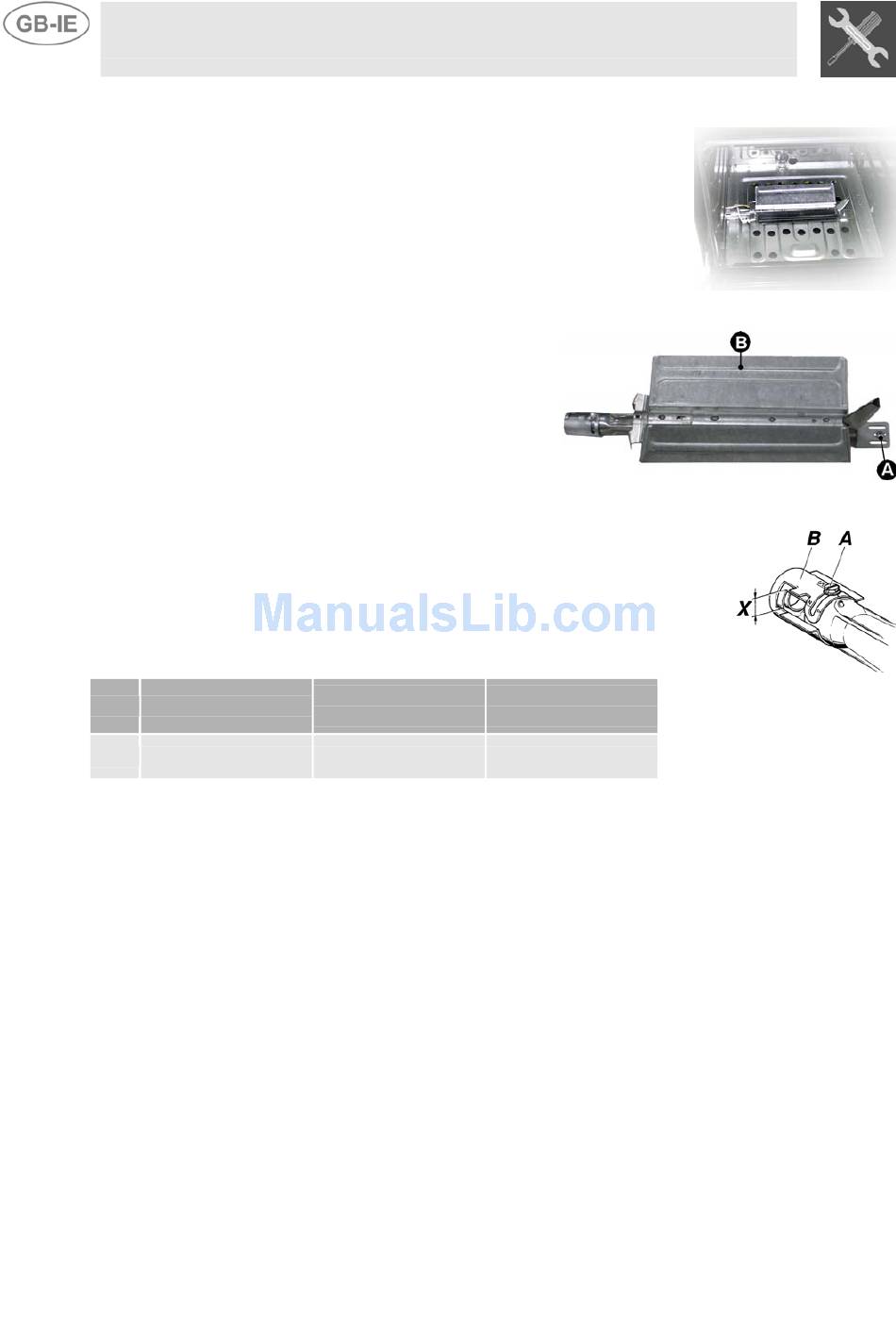

3.4 Adjustment of the oven burner (only for gas oven models)
To adjust the oven burners follow the procedure described below from
inside the oven:
•
Open the oven door;
•
Remove the oven dish and shelf.
•
Lift up the oven floor and remove.
3.4.1 Replacement of the oven burner nozzle
•
Loosen the fixing screws A on the oven burner.
•
Push the burner B towards the right to get to the
nozzle.
•
Use a 13 socket wrench to change the nozzle, fitting
the one for the type of gas to be used (see point "3.2
Table of burner and nozzle characteristics").
3.4.2 Regulation of the primary air on the oven burner
•
Loosen the register screws "A" on the air regulation coupling.
•
Turn the register coupling "B" to the position corresponding to the type of
gas to be used according to the table below.
•
Tighten the register screws and mount the seals.
•
Once the operation is completed reassemble the burner correctly.
NATURAL GAS
X =
10
Instruction for the installer
G30/G31 (GPL)
90cm Oven
5 mm 15 mm
G30/G31 (GPL)
60cm Oven
10 mm
