5 DESCRIPTION OF FRONT PANEL CONTROLS

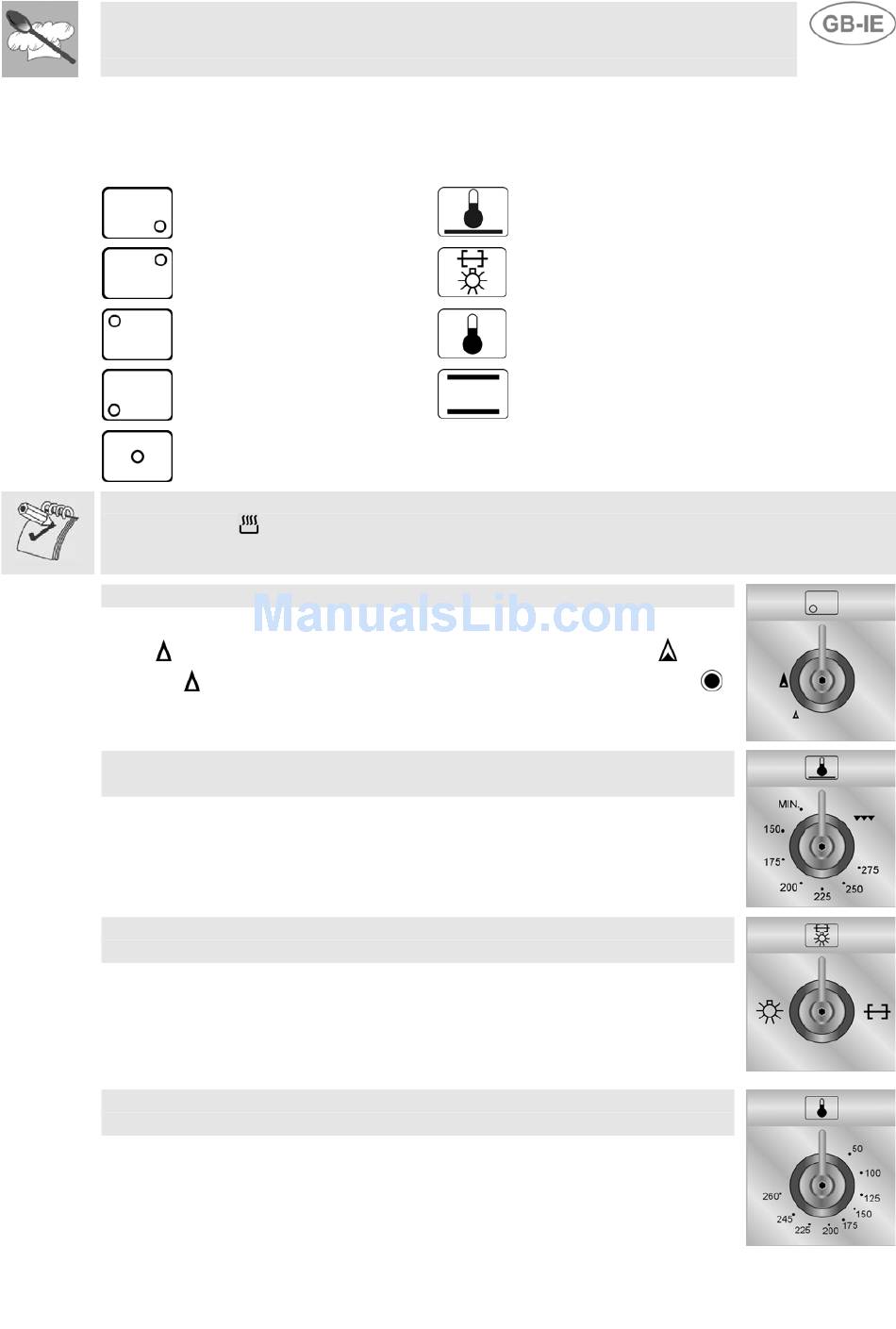

All the oven controls are grouped together on the front panel. The table below provides a description
of the symbols used.
FRONT RIGHT BURNER
BACK RIGHT BURNER
BACK LEFT BURNER
FRONT LEFT BURNER
CENTRAL BURNER
If the cooker is equipped with an electronic programmer, before using the oven make sure
that the symbol ; appears on the display. See paragraph "8.1 Clock adjustment".
COOKING HOB BURNER COMMAND KNOB
The flame is lit by pressing the knob and turning it anticlockwise to minimum
flame . To adjust the flame turn the knob between maximum ( ) and
minimum ( ). The burner goes out when the knob is returned to the position
.
GAS OVEN THERMOSTAT KNOB
This knob is used to ignite the gas burner inside the oven. The cooking
temperature is selected by turning the knob anticlockwise to the desired setting,
between Min. and 275°C.
For information on how to ignite the gas oven, see point " 7.3 Use of the gas oven ".
OVEN LIGHT / ROTISSERIE / GRILL SELECTOR KNOB
This knob allows the user to activate the Grill / Rotisserie function or to switch
on the light inside the oven to check the point reached in cooking the food.
CAUTION: IT IS NOT POSSIBLE TO OPERATE THE GAS OVEN AND THE
GRILL / ROTISSERIE SIMULTANEOUSLY.
ELECTRIC OVEN THERMOSTAT KNOB
Selection of cooking temperature is carried out by turning the knob clockwise to
the required temperature, between 50° and 260°C.
The tell-tale light comes on to indicate that the oven is warming up. When it
goes out it means that the required temperature has been reached. Regular
flashing means that oven temperature is being constantly maintained at the
programmed level.
Instruction for the user
(CERTAIN MODELS ONLY)
(CERTAIN MODELS ONLY)
(CERTAIN MODELS ONLY)
GAS OVEN THERMOSTAT KNOB
OVEN LIGHT / ROTISSERIE / GRILL SWITCH
ELECTRIC OVEN FUNCTION KNOB
