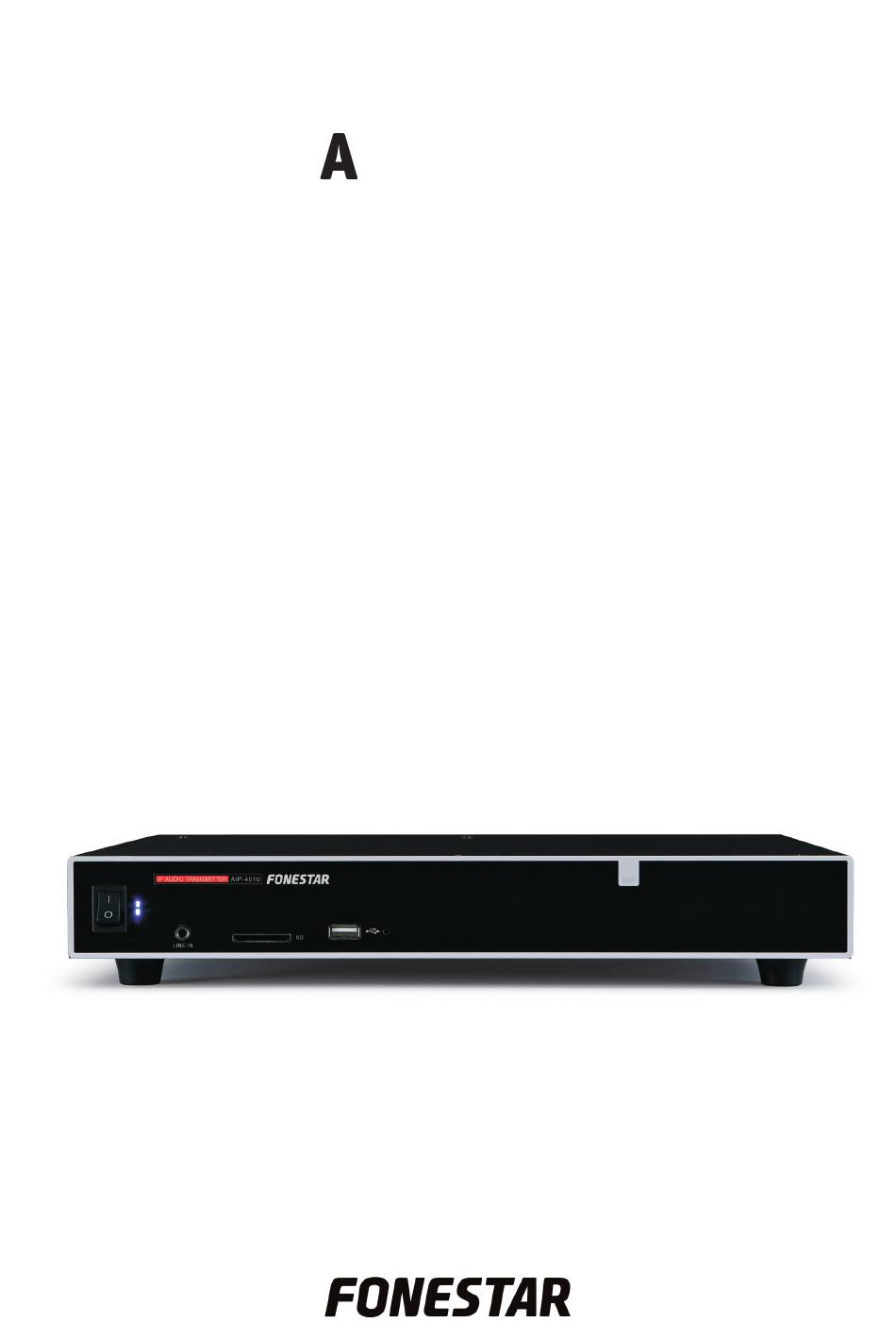

- Page 1 IP-4010 IP AUDIO TRANSMITTER INSTRUCTION MANUAL...
- Page 2 We take this opportunity to thank you for buying this product. We recommend you read the instruction manual before switching on the machine and follow the instruc- tions that are given. Keep the manual for future reference. SECURITY AND THE ENVIRONMENT ELECTRICAL SECURITY Check that the current in the mains connection where the machine is to be installed corresponds to the power supply of the machine.
-
Page 3: Exemption Of Liability
The characteristics of the equipment and the content of the manual can change without forewarning. FONESTAR, S.A. does not assume responsibilities regarding the inappropriate use of the equipment or the information supplied in this instruction manual, and specifically disclaims any implied liability for marketabi- lity or fitness for any other use. -
Page 4: Controls And Functions Front Panel
DESCRIPTION - IP audio transmitter with line input. - For transmitting an analogue audio signal to a local area network. - With 4 level inputs and 4 output relays for activating events and controlling external devices. - Automatic setting of network parameters. - Perfect solution for large shopping centres, schools, office buildings, etc. - Page 5 - Through an external configuration file generated by the AIP-Go application. THROUGH THE NET USING THE AIP-GO APPLICATION To set the parameters on the AIP-4010 transmitter through the local area network, use the AIP-Go application. Execute the program and perform the steps below: Select the Device List option in the Devices menus.
- Page 6 The Device Setup window will open. To set the net parameters, select the Network option. 1.- Activate/deactivate the DHCP setting. With the DHCP option deactivated, it is possible to set: 2. The IP address on the AIP-4010 transmitter. 3. The Netmask from the AIP-4010 transmitter. 4. The gateway from the AIP-4010 transmitter.
-
Page 7: Using The Configuration File
USING THE CONFIGURATION FILE The AIP-4010 audio transmitter obtains an IP address automatically if the DHCP option on the router is activated. Otherwise, the IP address has to be assigned manually and all the parameters have to be set to make it suitable for its data network and the equipment to work. -
Page 8: Firmware Upgrading
FIRMWARE UPGRADING There are two ways to upgrade the AIP-4010 audio transmitter firmware: using an upgrading file or through the AIP-Go application. For both options, download the upgrading file from the Fonestar (www.fonestar.com) web page. - Page 9 Configure button. The Device Setup will open. To upgrade the software, select the Options tab and press the Upgrade button. Now, select the upgrading file that you downloaded from the Fonestar web page and wait for the AIP-4010 transmitter to restart.
-
Page 10: Resetting The Default Values
RESETTING THE DEFAULT VALUES The AIP-4010 audio transmitter gives the option to set the equipment with the default values. To do this, follow the steps below: 1.- Insert a cylindrical element with a diameter of less than 3 mm through the reset button hole on the front panel of the equipemnt. -
Page 11: Technical Specifications
TECHNICAL SPECIFICATIONS AIP-4010 CHARACTERISTICS IP audio Transmitter. For audio transmission through streaming using multicast through the local area network (LAN). General purpose inputs and outputs. Remote upgrading through software for PC or locally through SD or USB. INPUTS 1 line, 2 x RCA and 3.5 mm stereo jack... -
Page 12: Warranty
This product has been tested and has passed the corresponding quality control prior to being put on the market. FONESTAR guarantees the suitability of the product for its specified use during a period of 2 years from the delivery date and commits itself to repair or substitute the goods as expressed in the Spanish law ‘La Ley General para la Defensa de los...
