DESCRIPTION
- IP audio transmitter with line input.
- For transmitting an analogue audio signal to a local area network.
- With 4 level inputs and 4 output relays for activating events and controlling external devices.
- Automatic setting of network parameters.
- Perfect solution for large shopping centres, schools, office buildings, etc.
CONTROLS AND FUNCTIONS

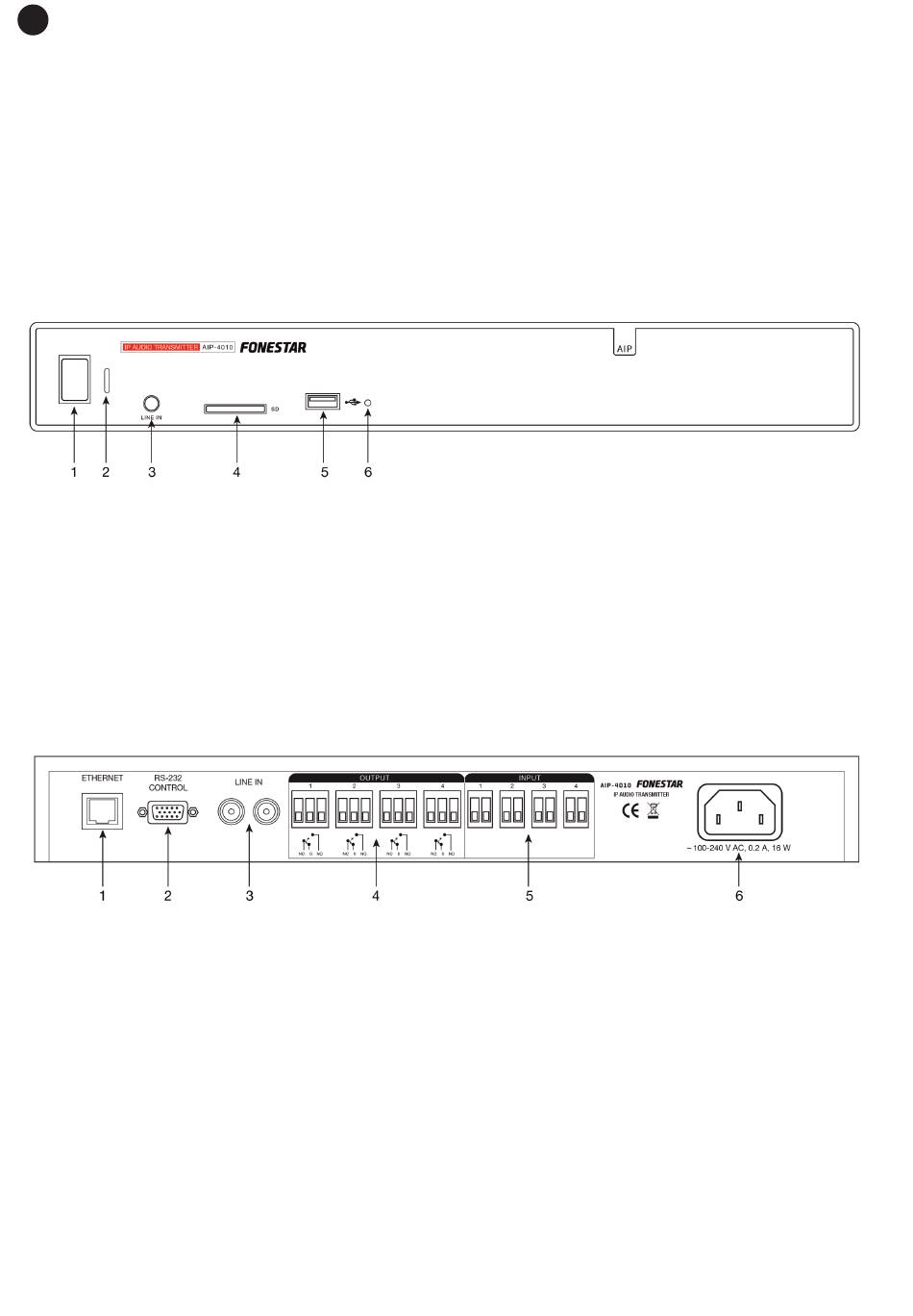

FRONT PANEL
1.- On/off switch.
2.- LED power indicators.
3.- LINE IN: line input, 3.5 mm stereo jack connector.
4.- Connection port for SD memory cards. Only valid for updating firmware.
5.- Connection port for USB storage devices. Only valid for firmware updating.
6.- Reset button.

BACK PANEL

1.- ETHERNET: port for connecting a local network using a Cat 5e/6, RJ-45 connector.
2.- RS-232 CONTROL: port for connecting to other pieces of equipment, female D9 connector.
3.- LINE IN: line input, 2 x RCA connectors.
4.- OUTPUT: isolated programmable contact opening and closing outputs, euroblock connectors.
5.- INPUT: isolated programmable inputs for activating events through contact closure, euroblock
connectors.
6.- Input for connecting the AC power cable.
