FONESTAR AIP-4010 Instruction Manual page 6

EN

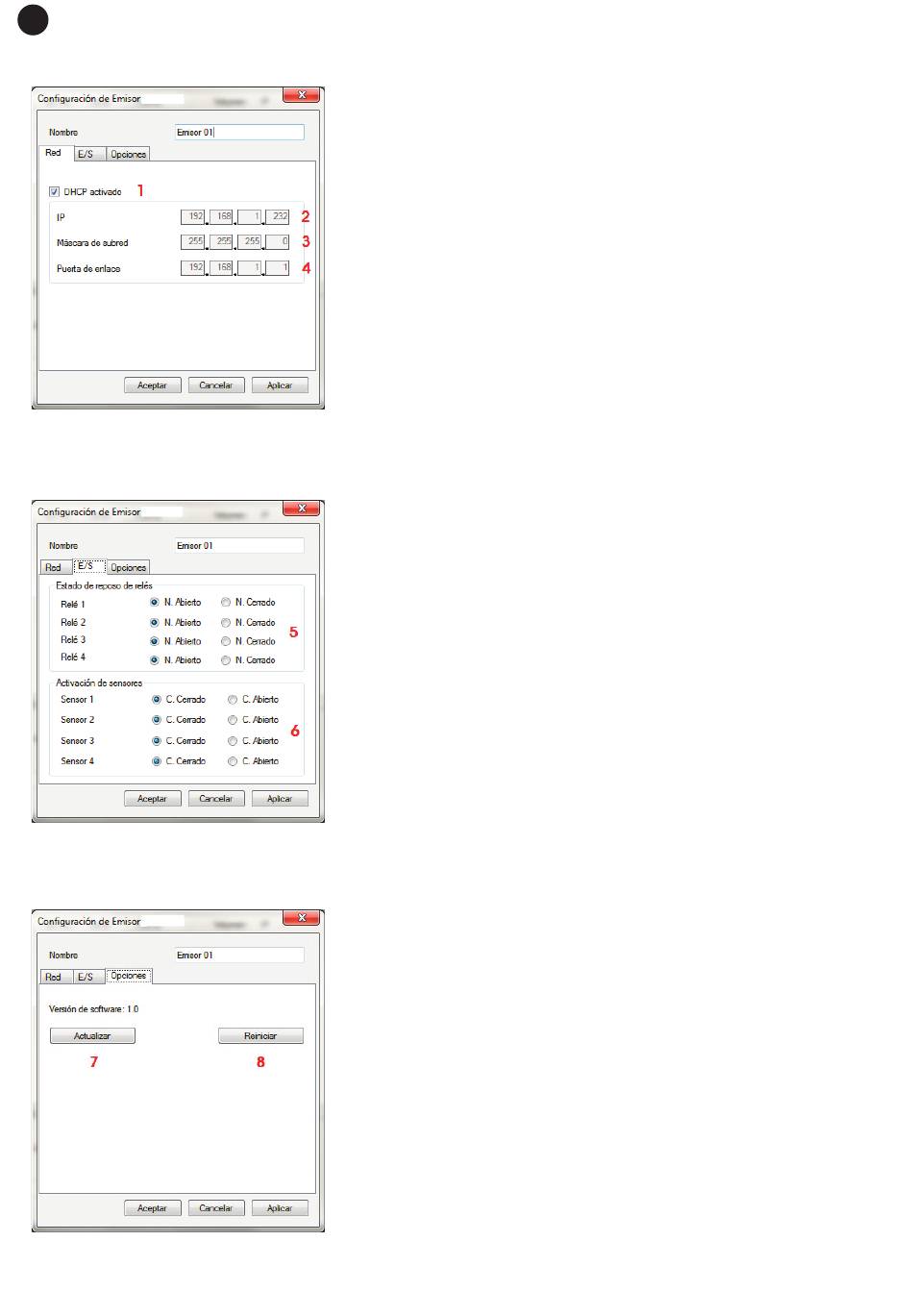

The Device Setup window will open. To set the net parameters, select the Network option.
To set the input and relay connector parameters, select the I/O option.
To upgrade and restart the equipment, select the Options tag.
1.- Activate/deactivate the DHCP setting.
With the DHCP option deactivated, it is possible to set:
2. The IP address on the AIP-4010 transmitter.
3. The Netmask from the AIP-4010 transmitter.
4. The gateway from the AIP-4010 transmitter.
5.- For selecting the state of the relays in standby if they
are normally open (Norm. open) or normally closed
(Norm. closed).
6. For selecting the active sensors through short-circuit
(Closed cir.), or active through open circuit (Open cir.).
7.- For upgrading the AIP-4010 audio transmitter
firmware. For more information, see the Firmware
Upgrading section in this instruction manual.
8. For restarting the equipment.
