Measuring signals
DC Component
Center of AC Signal
Ground Reference
3-34

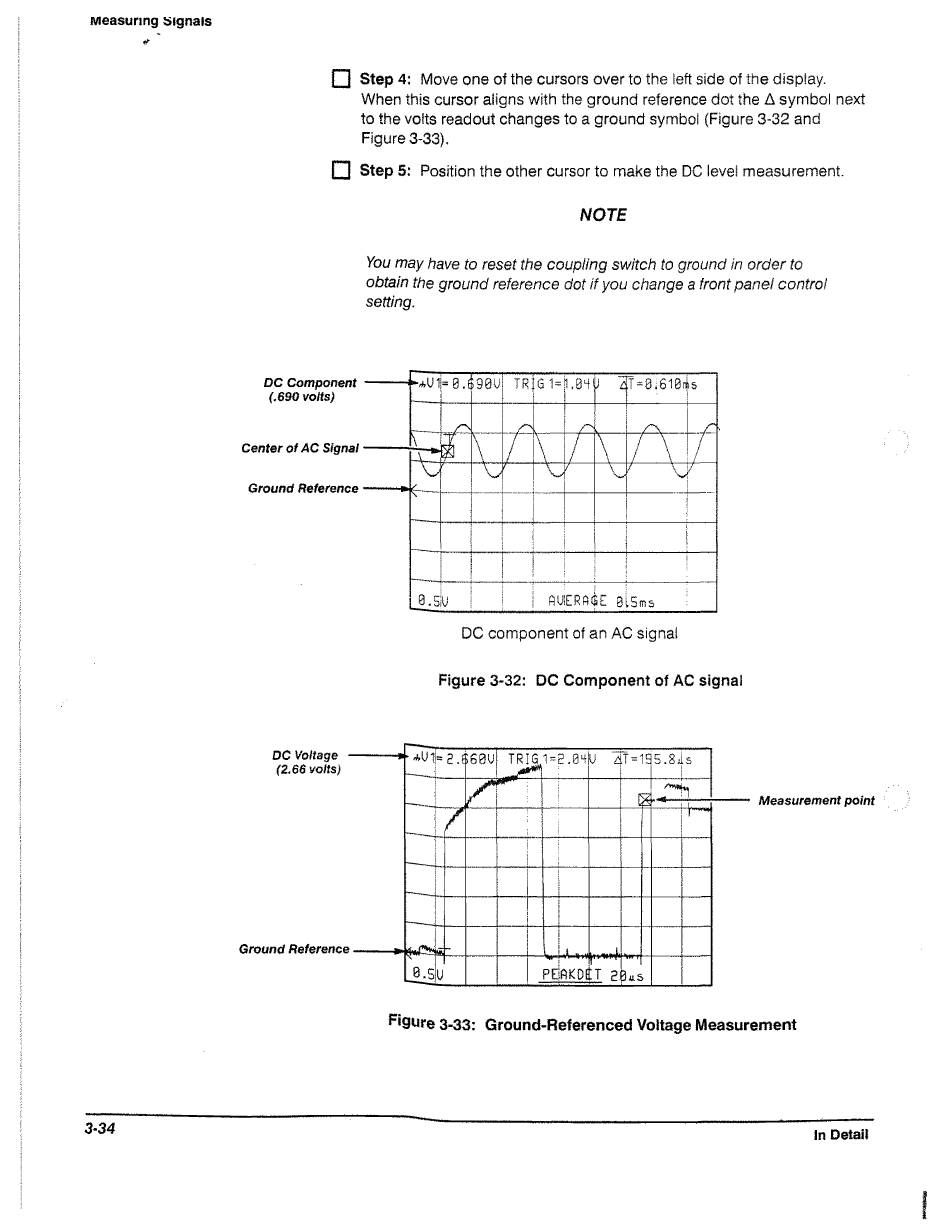

□ Step 4: Move one of the cursors over to the left side of the display.
When this cursor aligns with the ground reference dot the A symbol next
to the volts readout changes to a ground symbol (Figure 3-32 and
Figure 3-33),
□ Step 5: Position the other cursor to make the DC level measurement.
You may have to reset the coupling switch to ground in order to
obtain the ground reference dot if you change a front panel control
setting.
(.690 volts)

Figure 3-32: DC Component of AC signal

figure 3-33: Ground-Referenced Voltage Measurement

NOTE
Measurement point
In Detail
