Characteristics
Aberrations (NON-STORE and STORE in De­
fault Modes)
2 mV per division to 50 mV per division
0,1 V per division to 0.2 V per division
0.5 V per division
1 V per division to 5 V per division
Useful Storage Performance2
RECORD, SCAN and ROLL Store Modes
SAMPLE Acquisition, no AVERAGE
1 ps per division to
5 s per division
EXT CLOCK {up to 100 kHz)
PEAK DETECT
Sine Wave
Amplitude Capture {5% p-p
maximum amplitude uncertainty)
Pulse Width
Amplitude Capture (50% p-p
maximum amplitude uncertainty) 1 2
1 Performance requirement not checked in manual.
2Usefui storage performance is limited to the frequency where there are 10 samples per sine wave signal period at the maximum
sampling rate. (Maximum sampling rate is 100 MHz.) This yields a maximum amplitude uncertainty of 5%. Accuracy at the useful
storage bandwidth limit is measured with respect to a six-division, 50 kHz reference sine wave.
A-tO

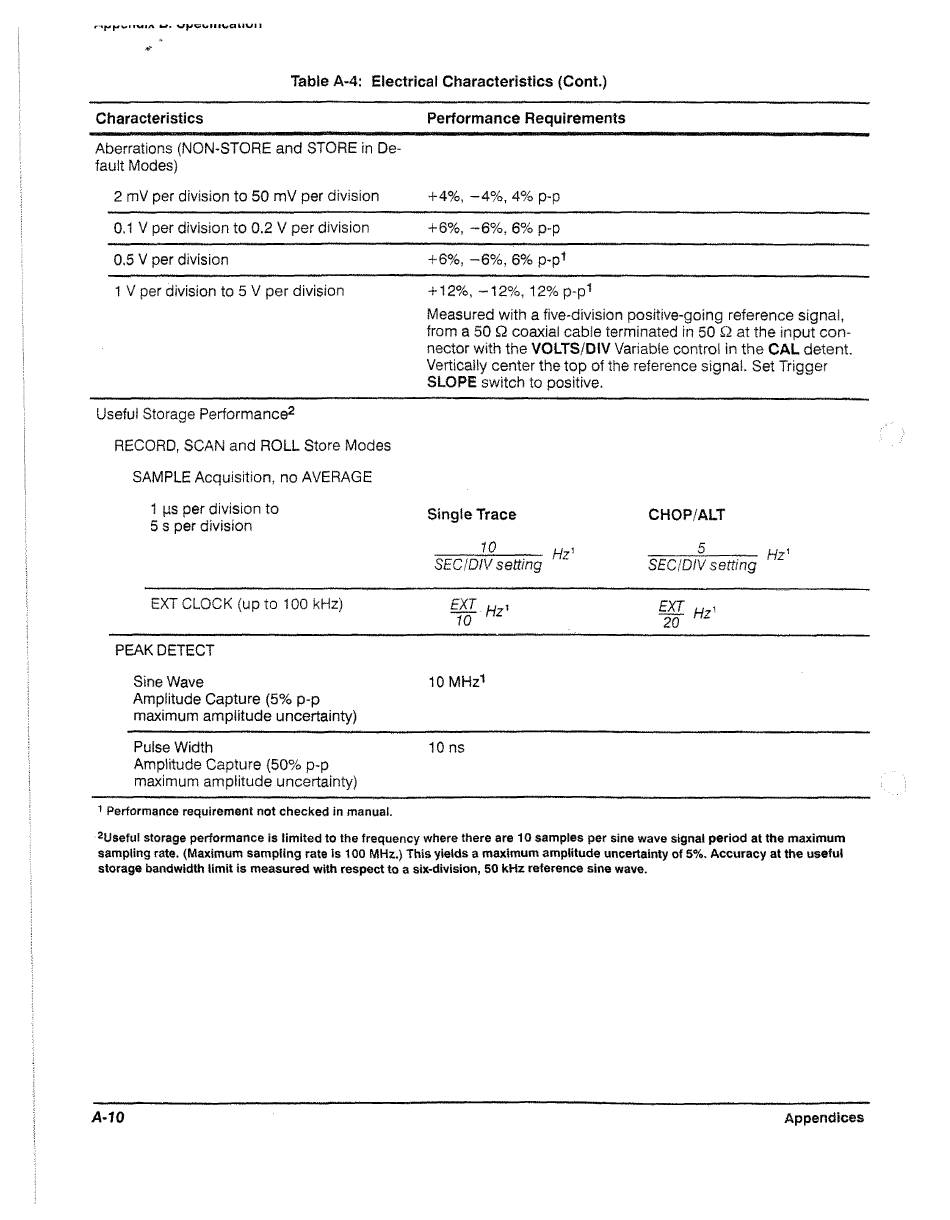

Table A-4: Electrical Characteristics (Cont.)
Performance Requirements
4*4%, — 4%, 4% p-p
+6%, -6% , 6% p-p
4*6%, -6% , 6% p-p1
4-12%, -12% , 12% p-p1
Measured with a five-division positive-going reference signal,
from a 50 Q coaxial cable terminated in 50 Q at the input con­
nector with the VOLTS/DIV Variable control in the CAL detent.
Vertically center the top of the reference signal. Set Trigger
SLOPE switch to positive.
Sing}e Trace
SECIDIV setting
EXT H ,
10
10 MHz1
10 ns
CHOP/ALT
10
SECIDIV setting Hz'
EXT /j,i
"20" H'
