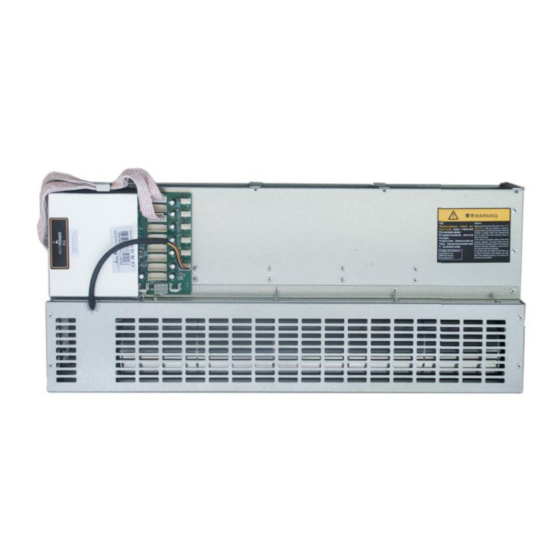

- Page 1 BITMAIN R4 Server Manual...
-
Page 2: Table Of Contents
R4 Server Manual Last updated: 8/30/2016 Page 2 of 11 Contents Overview ........................... 3 Features ............................. 3 Power Supply..........................4 Connect to Server ........................5 Server Configuration ........................7 Pool Setting ........................7 Frequency Modification ....................8 Server Status ..........................8 System Configuration and status .................... -
Page 3: Overview
Page 3 of 11 1 Overview The R4 server with 8.6th/s is Bitmin’s newest iteration. The R4 server uses the fully custom made, state of the art BM1387 chip powered by ultra-low power 16nm technology. The R4 is tested and configured prior to shipping to make your setup as easy and seamless as possible. -
Page 4: Power Supply
Page 4 of 11 3 Power Supply Each R4 Server has 6 PCI-e connectors for +12V/15A DC STABLE input on hash boards and 1 PCI-e connector on the controller, all the 7 PCI-e connectors are required. Do not connect more than one PSU to the same hash board to prevent possible damage and instability. -
Page 5: Connect To Server
R4 Server Manual Last updated: 8/30/2016 Page 5 of 11 4 Connect to Server Step 1. The default DHCP network protocol distributes IP addresses automatically. Please download IPReporter.zip (only supported by Windows) , then please follow the below steps to find out the IP of the server. - Page 6 R4 Server Manual Last updated: 8/30/2016 Page 6 of 11 3. Check your PC, you’ll see the IP address showing in the pop-up window. Step 2. Enter the IP address provided into your WEB browser and proceed to login using ‘root’ for both the username and password.
-
Page 7: Server Configuration
Password- This is the password for your selected worker. Comment: 5.1.1 The R4 server can be set up with three mining pools, with decreasing priority from the first pool (pool 1) to the third pool (pool 3). The pools with low priority will only be used if all higher priority pools have gone offline. -
Page 8: Frequency Modification
5.2 Frequency Modification You are able to modify the frequency value through ‘ Configuration->Advanced Settings’. The default frequency for the R4 server is 600M. 6 Server Status You can check the operating status of your server on the page below. -
Page 9: System Configuration And Status
R4 Server Manual Last updated: 8/30/2016 Page 9 of 11 7 System Configuration and status 7.1 System Upgrading You can upgrade the server’s firmware on the ‘System > Upgrade’ page. ‘Keep setting’ is chosen by default and should be enabled if you want to keep your current settings. -
Page 10: Password Modification
R4 Server Manual Last updated: 8/30/2016 Page 10 of 11 7.2 Password Modification The server login password can be changed on the ‘System->Administration’ page. Once modified, press ‘Save and Apply’ to save the new password. 7.3 Software Version You can check which version of the software you are currently running on the ‘System >... - Page 11 R4 Server Manual Last updated: 8/30/2016 Page 11 of 11 Page 11 / 11...
