S19a Pro Server Installation
© Copyright Bitmain 2007 – 2021. All rights reserved.
Bitmain reserves the right to make corrections, modifications, enhancements, improvements, and other changes to its products and
services at any time and to discontinue any product or service without notice.
Customers should obtain the latest relevant information before placing orders and should verify that such information is current and
complete. All products are sold subject to Bitmain's terms and conditions of sale supplied at the time of order acknowledgment.
Bitmain warrants performance of its products to the specifications applicable at the time of sale in accordance with Bitmain's standard
warranty. Testing and other quality control techniques are used to the extent Bitmain deems necessary to support this warranty.
Except where mandated by government requirements, testing of all parameters of each product is not necessarily performed.
Bitmain assumes no liability for third-party applications assistance. Customers are responsible for their products and applications
using Bitmain components. To minimize the risks associated with customer products and applications, customers should provide
adequate design and operating safeguards.
Bitmain does not warrant or represent that any license, either express or implied, is granted under any Bitmain patent right, copyright
or other Bitmain intellectual property right relating to any combination, machine, or process in which Bitmain products or services
are used. Information published by Bitmain regarding third-party products or services does not constitute a license from Bitmain to
use such products or services or a warranty or endorsement thereof. Use of such information may require a license from a third party
under the patents or other intellectual property of the third party, or a license from Bitmain under the patents or other intellectual
property of Bitmain.
Resale of Bitmain products or services with statements different from or beyond the parameters stated by Bitmain for that product
or service voids all express and any implied warranties for the associated Bitmain product or service and is an unfair and deceptive
business practice. Bitmain is not responsible or liable for any such statements.
All company and brand products and service names are trademarks or registered trademarks of their respective holders.
Guide
Document Version 1.0
Dec. 2021

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ANTMINER S19a Pro and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for BITMAIN ANTMINER S19a Pro

  • Page 1 Use of such information may require a license from a third party under the patents or other intellectual property of the third party, or a license from Bitmain under the patents or other intellectual property of Bitmain.
  • Page 2 S19a Pro Server Installation Guide All text and figures included in this publication are the exclusive property of Bitmain, and may not be copied, reproduced, or used in any way without the express written permission of Bitmain. Information in this document is subject to change without notice and does not represent a commitment on the part of Bitmain.
  • Page 3: Table Of Contents

    S19a Pro Server Installation Guide Table of Contents 1. Overview ..........................4 1.1 S19a Pro Server Components ....................5 1.2 Specifications..........................7 2. Setting Up the Server ....................... 9 3. Configuring the Server ......................11 4. Monitoring Your Server ......................12 5.
  • Page 4: Overview

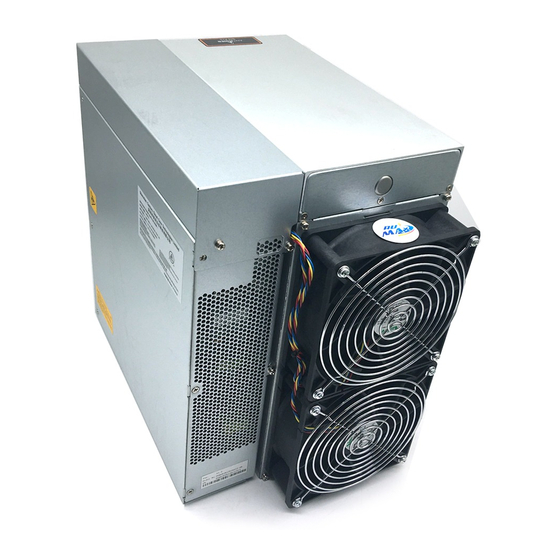

    1. Overview The S19a Pro server is Bitmain’s newest version in the 19 server series. Power supply APW12 is part of S19a Pro server. All S19a Pro servers are tested and configured prior to shipping to ensure easy set up.
  • Page 5: S19A Pro Server Components

    S19a Pro Server Installation Guide 1. Overview S19a Pro Server Components The main components and controller front panel of S19a Pro servers are shown in the following figure: - 5 -...
  • Page 6 S19a Pro Server Installation Guide 1. Overview APW12 Power Supply: Note: 1. Power supply APW12 is part of S19a Pro server. For detailed parameters, please refer to the specifications below. 2. Additional two power cords are needed. - 6 -...
  • Page 7: Specifications

    S19a Pro Server Installation Guide 1. Overview 1.2 Specifications Product Glance Value Version S19a Pro Model 240-Cb Hashrate, TH/s Crypto Algorithm SHA256 Watt 3250 Power on wall @25°C, Power efficiency on wall @25°C, J/TH 29.5 Detailed Characteristics Value Miner Size (Length*Width*Height, w/o package), mm 400*195.5*290 (1-1) (1-2)
  • Page 8 Setting up the Server To set up the server: The file IPReporter.zip is supported by Microsoft Windows only. Go to the following site: https://shop.bitmain.com/support.htm?pid=00720160906053730999PVD2K0vz0693 2. Download the following file: IPReporter.zip. 3. Extract the file. The default DHCP network protocol distributes IP addresses automatically.
  • Page 9: Setting Up The Server

    9. In the Protocol section, you can assign a Static IP address (optional). 10. Enter the IP address, Subnet mask, gateway and DNS Server. 11. Click “Save”. 12. Click https://support.bitmain.com/hc/en-us/articles/360018950053 to learn more about gateway and DNS Server. - 9 -...
  • Page 10 S19a Pro Server Installation Guide 2. Setting up the Server - 10 -...
  • Page 11: Configuring The Server

    S19a Pro Server Installation Guide 3. Configuring the Server Configuring the Server Setting up the Pool To configure the server: 1. Click Setting marked below. Note: 1. Fan speed percentage can be adjusted, but we recommend to keep the default setting. The server will adjust the fan speed automatically if the fan speed percentage has yet been selected.
  • Page 12: Monitoring Your Server

    S19a Pro Server Installation Guide 4. Monitoring Your Server Monitoring Your Server To check the operating status of your server: 1. Click dashboard marked below to check the server status. Note: The S19a Pro server is with fixed frequency 600 MHz. Firmware will stop running when the Temp (Outlet) reaches to 95℃,there will be an error message “over max temp, pcb temp (real-time temp)”...
  • Page 13: Administering Your Server

    5.2 Upgrading Your System Make sure that the S19a Pro server remains powered during the upgrade process. If power fails before the upgrade is completed, you will need to return it to Bitmain for repair. To upgrade the server’s firmware: 1.
  • Page 14: Modifying Your Password

    S19a Pro Server Installation Guide 5. Administering Your Server 2. For Keep Settings: Select “keep settings” to keep your current settings (default). ■ Unselect “keep settings” to reset the server to default settings. ■ 4. When the upgrade is completed, restart the server and it will turn to the setting page. 5.3 Modifying Your Password To change your login password: 1.
  • Page 15: Environmental Requirements

    S19a Pro Server Installation Guide Environmental Requirements Please run your server in accordance with the following requirements 1. Basic Environmental Requirements: 1.1. Climatic Conditions: Description Requirement Operating Temperature 0-40℃ Operating Humidity 10-90%RH (non-condensing) Storage Temperature -20-70℃ Storage Humidity 5-95%RH(non-condensing) Altitude <2000m 1.2.
  • Page 16 S19a Pro Server Installation Guide 2.2 Requirements of Corrosive Gas Corrosive Gas Unit Concentration < 3 < 10 < 1 < 50 < 1 < 500 < 2 Note: ppb (part per billion) refers to the unit of concentration,1ppb stands for the volume ratio of part per billion.
  • Page 17: Regulations

    S19a Pro Server Installation Guide Regulations: FCC Notice (FOR FCC CERTIFIED MODELS): This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
