© Copyright Bitmain Technologies Holding Company 2007 – 2022. All rights reserved.
Bitmain Cayman (hereinafter referred to as 'Bitmain') reserves the right to make corrections, modifications, enhancements,
improvements, and other changes to its products and services at any time and to discontinue any product or service without notice.
Customers should obtain the latest relevant information before placing orders and should verify that such information is current and
complete. All products are sold subject to Bitmain's terms and conditions of sale supplied at the time of order acknowledgment.
Bitmain warrants performance of its products to the specifications applicable at the time of sale in accordance with Bitmain's standard
warranty. Testing and other quality control techniques are used to the extent Bitmain deems necessary to support this warranty.
Except where mandated by government requirements, testing of all parameters of each product is not necessarily performed.
Bitmain assumes no liability for third-party applications assistance. Customers are responsible for their products and applications
using Bitmain components. To minimize the risks associated with customer products and applications, customers should provide
adequate design and operating safeguards.
Bitmain does not warrant or represent that any license, either express or implied, is granted under any Bitmain patent right, copyright
or other Bitmain intellectual property right relating to any combination, machine, or process in which Bitmain products or services
are used. Information published by Bitmain regarding third-party products or services does not constitute a license from Bitmain to
use such products or services or a warranty or endorsement thereof. Use of such information may require a license from a third party
under the patents or other intellectual property of the third party, or a license from Bitmain under the patents or other intellectual
property of Bitmain.
Resale of Bitmain products or services with statements different from or beyond the parameters stated by Bitmain for that product
or service voids all express and any implied warranties for the associated Bitmain product or service and is an unfair and deceptive
business practice. Bitmain is not responsible or liable for any such statements.
All company and brand products and service names are trademarks or registered trademarks of their respective holders.
T19 Hydro Server
Installation Guide
Document Version 1.0
Feb. 2022

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the T19 Hydro Server and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for BITMAIN T19 Hydro Server

  • Page 1 Use of such information may require a license from a third party under the patents or other intellectual property of the third party, or a license from Bitmain under the patents or other intellectual property of Bitmain.
  • Page 2 T19 Hydro Server Installation Guide All text and figures included in this publication are the exclusive property of Bitmain, and may not be copied, reproduced, or used in any way without the express written permission of Bitmain. Information in this document is subject to change without notice and does not represent a commitment on the part of Bitmain.
  • Page 3: Table Of Contents

    T19 Hydro Server Installation Guide Table of Contents 1. Overview ..........................4 1.1 T19 Hydro Server Components ....................5 1.2 Specifications..........................7 2. Setting Up the Server ....................... 9 3. Configuring the Server ......................11 4. Monitoring Your Server ......................12 5.
  • Page 4: Overview

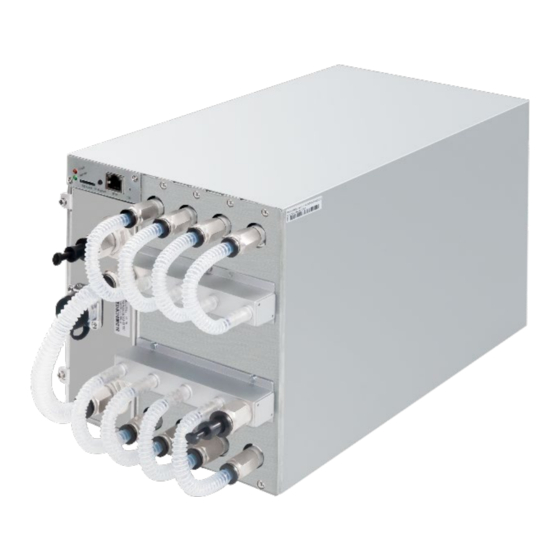

    1. Overview The T19 Hydro server is one of the Bitmain’s newest versions in the 19 hydro server series. Power supply APW11 is part of T19 Hydro server. All T19 Hydro servers are tested and configured prior to shipping to ensure easy set up.
  • Page 5: T19 Hydro Server Components

    T19 Hydro Server Installation Guide 1. Overview T19 Hydro Server Components The main components and control panel of T19 Hydro servers are shown in the following figure: - 5 -...
  • Page 6 T19 Hydro Server Installation Guide 1. Overview APW11 Power Supply: Note: Power supply APW11 is part of T19 Hydro server. For detailed parameters, please refer to the specifications below. - 6 -...
  • Page 7: Specifications

    T19 Hydro Server Installation Guide 1. Overview 1.2 Specifications Product Glance Value Version Model T19 Hydro Crypto Algorithm/Coins 208-A Hashrate, TH/s SHA256/BTC/BCH Power on wall@Tj65°C, Watt 119 ± 3% 125.5 ± 3% 132 ± 3% 138.5 ± 3% Power efficiency on wall @Tj65°C, J/TH 4463 ±...
  • Page 8 T19 Hydro Server Installation Guide 1. Overview Notes: (1-1) Inlet water temperature (2-1) Caution: Wrong input voltage may probably cause server damaged (2-2) Three-phase AC input, 10A per wire (2-3) Operation altitude is recommended below 2000m - 8 -...
  • Page 9: Setting Up The Server

    T19 Hydro Server Installation Guide 2. Setting up the Server Setting up the Server To set up the server: The file IPReporter.zip is supported by Microsoft Windows only. Go to the following site: https://shop.bitmain.com/support.htm?pid=00720160906053730999PVD2K0vz0693 2. Download the following file: IPReporter.zip.
  • Page 10 T19 Hydro Server Installation Guide 2. Setting up the Server 7. On the control panel, click the IP Report button. Hold it down until it beeps (about 5 seconds). The IP address will be displayed in a window on your computer screen.
  • Page 11: Configuring The Server

    T19 Hydro Server Installation Guide 3. Configuring the Server Configuring the Server Setting up the Pool To configure the server: 1. Click Settings as below. 2. Set the options according to the following table. Option Description Mining address Enter the address of your desired pool.
  • Page 12: Monitoring Your Server

    Click dashboard marked below to check the server status. Note: The frequency of T19 Hydro server is fixed with the value 550 MHz. Firmware will stop running when the Temp (PCB) reaches to 80℃ or the water temperature is either greater than 65℃ or lower than 20℃,...
  • Page 13: Administering Your Server

    20211018. 5.2 Upgrading Your System Make sure that the T19 Hydro server remains powered during the upgrade process. If power fails before the upgrade is completed, you will need to return it to Bitmain for repair. To upgrade the server’s firmware: In System, click Firmware Upgrade.
  • Page 14: Modifying Your Password

    T19 Hydro Server Installation Guide 5. Administering Your Server For Keep Settings: Select “keep settings” to keep your current settings (default). ■ Unselect “keep settings” to reset the server to default settings. ■ Click the button and navigate to the upgrade file. Select the upgrade file, then click Update.
  • Page 15: Environmental Requirements

    T19 Hydro Server Installation Guide Environmental Requirements Please run your server in accordance with the following requirements 1. Basic Environmental Requirements: 1.1. Climatic Conditions: Description Requirement Operating Temperature -20-50℃ Operating Humidity 20-90%RH (non-condensing) Storage Temperature -20-70℃ Storage Humidity 5-95%RH(non-condensing) Altitude <2000m...
  • Page 16 T19 Hydro Server Installation Guide 2.2 Requirements of Corrosive Gas Corrosive Gas Unit Concentration < 3 < 10 < 1 < 50 < 1 < 500 < 2 Note: ppb (part per billion) refers to the unit of concentration,1ppb stands for the volume ratio of part per billion.
  • Page 17: Regulations

    T19 Hydro Server Installation Guide Regulations: FCC Notice (FOR FCC CERTIFIED MODELS): This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
