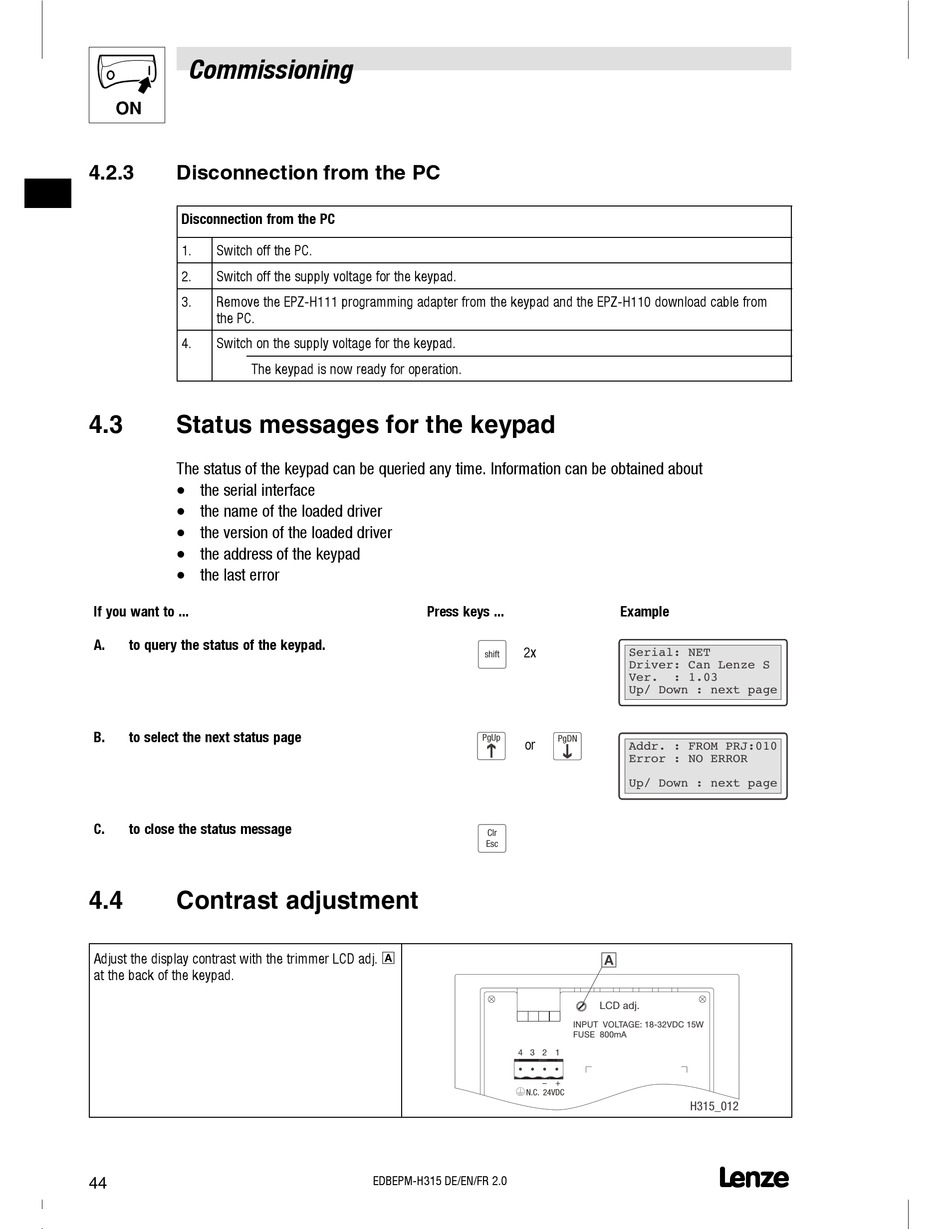

Disconnection From The Pc; Status Messages For The Keypad; Contrast Adjustment - Lenze EPM-H315 Operating Instructions Manual

Show/Hide Bookmarks
Commissioning
4.2.3

Disconnection from the PC

Disconnection from the PC
1. Switch off the PC.
2. Switch off the supply voltage for the keypad.
3. Remove the EPZ-H111 programming adapter from the keypad and the EPZ-H110 download cable from
the PC.
4. Switch on the supply voltage for the keypad.
4.3

Status messages for the keypad

The status of the keypad can be queried any time. Information can be obtained about
•
the serial interface
•
the name of the loaded driver
•
the version of the loaded driver
•
the address of the keypad
•
the last error
If you want to ...
A. to query the status of the keypad.
B. to select the next status page
C. to close the status message
4.4

Contrast adjustment

Adjust the display contrast with the trimmer LCD adj.
at the back of the keypad.
44
The keypad is now ready for operation.
0
EDBEPM-H315 DE/EN/FR 2.0
Press keys ...
2x
shift
PgUp
PgDN
or
Clr
Esc
INPUT VOLTAGE: 18-32VDC 15W
FUSE 800mA
4 3 2 1
N.C. 24VDC
Example
Serial: NET Serial: NET Serial: NET
Driver: Can Lenze S Driver: Can Lenze S Driver: Can Lenze S
Ver. Ver. Ver. : 1.03 : 1.03 : 1.03
Up/ Down : next page Up/ Down : next page Up/ Down : next page
Addr. : FROM PRJ:010 Addr. : FROM PRJ:010 Addr. : FROM PRJ:010
Error : NO ERROR Error : NO ERROR Error : NO ERROR
Up/ Down : next page Up/ Down : next page Up/ Down : next page
0
LCD adj.
H315_012
L
