Product End-of-Life Disassembly Instructions
Product Category: Monitors and Displays
Marketing Name / Model
[List multiple models if applicable.]

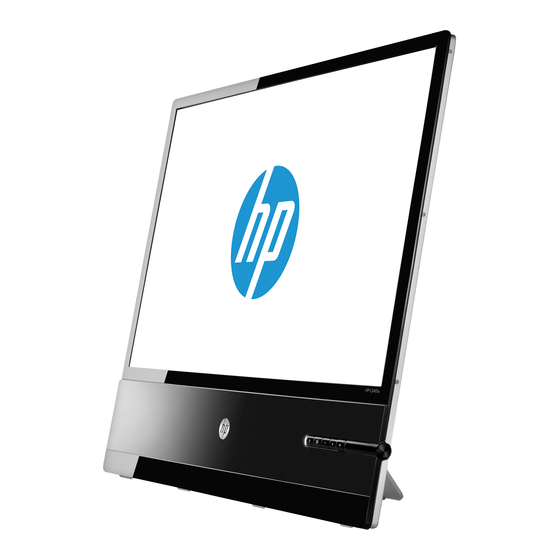

HP x2401 24-inch LED Backlit Monitor
Purpose: The document is intended for use by end-of-life recyclers or treatment facilities. It provides the basic instructions
for the disassembly of HP products to remove components and materials requiring selective treatment, as defined by EU
directive 2002/96/EC, Waste Electrical and Electronic Equipment (WEEE).
1.0 Items Requiring Selective Treatment
1.1 Items listed below are classified as requiring selective treatment.
1.2 Enter the quantity of items contained within the product which require selective treatment in the right column, as
applicable.
Item Description
Printed Circuit Boards (PCB) or Printed Circuit
Assemblies (PCA)
Batteries
Mercury-containing components
Liquid Crystal Displays (LCD) with a surface greater
than 100 sq cm
Cathode Ray Tubes (CRT)
Capacitors / condensers (Containing PCB/PCT)
Electrolytic Capacitors / Condensers measuring
greater than 2.5 cm in diameter or height
External electrical cables and cords
Gas Discharge Lamps
Plastics containing Brominated Flame Retardants
weighing > 25 grams (not including PCBs or PCAs
already listed as a separate item above)
Components and parts containing toner and ink,
including liquids, semi-liquids (gel/paste) and toner
Components and waste containing asbestos
Components, parts and materials containing
refractory ceramic fibers
Components, parts and materials containing
radioactive substances
Notes
With a surface greater than 10 sq cm
All types including standard alkaline and lithium coin
or button style batteries
For example, mercury in lamps, display backlights,
scanner lamps, switches, batteries
Includes background illuminated displays with gas
discharge lamps
Power cable *1 \ signal cable - DP *1 & HDMI*1 \
Adapter *1.
All are inside monitor carton box
Include the cartridges, print heads, tubes, vent
chambers, and service stations.
Quantity
of items
included
in product
1
0
0
1
0
0
0
4
0
0
0
0
0
0

Advertisement

Table of Contents

   Also See for HP x2401

   Related Manuals for HP x2401

   Summary of Contents for HP x2401

  • Page 1 Purpose: The document is intended for use by end-of-life recyclers or treatment facilities. It provides the basic instructions for the disassembly of HP products to remove components and materials requiring selective treatment, as defined by EU directive 2002/96/EC, Waste Electrical and Electronic Equipment (WEEE).
  • Page 2 2.0 Tools Required List the type and size of the tools that would typically be used to disassemble the product to a point where components and materials requiring selective treatment can be removed. Tool Description Tool Size (if applicable) Screw driver Hexagonal inserted handle box wrench Diagonal cutting nippers 3.0 Product Disassembly Process...
  • Page 3 Step 1 : Remove bezel from monitor head . EL-MF877-00 Page 3 Template Revision B PSG instructions for this template are available at EL-MF877-01...
  • Page 4 Step 2 : Remove hinge cover from monitor head. EL-MF877-00 Page 4 Template Revision B PSG instructions for this template are available at EL-MF877-01...
  • Page 5 Step 3 : Use tool to release screws and disassemble hinge part. EL-MF877-00 Page 5 Template Revision B PSG instructions for this template are available at EL-MF877-01...
  • Page 6 Step 4 : Removed PCB bracket and LED cable from monitor head Step 5 : Removed PCB screw from monitor head EL-MF877-00 Page 6 Template Revision B PSG instructions for this template are available at EL-MF877-01...
  • Page 7 Step 6 : Removed BEZEL FRONT bracket from monitor head EL-MF877-00 Page 7 Template Revision B PSG instructions for this template are available at EL-MF877-01...
  • Page 8 Step 7 : Removed CELL with PCB from monitor head EL-MF877-00 Page 8 Template Revision B PSG instructions for this template are available at EL-MF877-01...
  • Page 9 Step 8 : Removed film material from monitor head. EL-MF877-00 Page 9 Template Revision B PSG instructions for this template are available at EL-MF877-01...
  • Page 10 EL-MF877-00 Page 10 Template Revision B PSG instructions for this template are available at EL-MF877-01...
  • Page 11 Step 9 : Removed LED PCB from back cover EL-MF877-00 Page 11 Template Revision B PSG instructions for this template are available at EL-MF877-01...
  • Page 12 Step 10 : Removed RC-cover-1 from back cover EL-MF877-00 Page 12 Template Revision B PSG instructions for this template are available at EL-MF877-01...
  • Page 13 Step 11: disassemble back cover to only single part. EL-MF877-00 Page 13 Template Revision B PSG instructions for this template are available at EL-MF877-01...
  • Page 14 Step 12 : disassemble status shown as below part list. EL-MF877-00 Page 14 Template Revision B PSG instructions for this template are available at EL-MF877-01...
  • Page 15 EL-MF877-00 Page 15 Template Revision B PSG instructions for this template are available at EL-MF877-01...
  • Page 16 EL-MF877-00 Page 16 Template Revision B PSG instructions for this template are available at EL-MF877-01...
  • Page 17 EL-MF877-00 Page 17 Template Revision B PSG instructions for this template are available at EL-MF877-01...
  • Page 18 EL-MF877-00 Page 18 Template Revision B PSG instructions for this template are available at EL-MF877-01...
