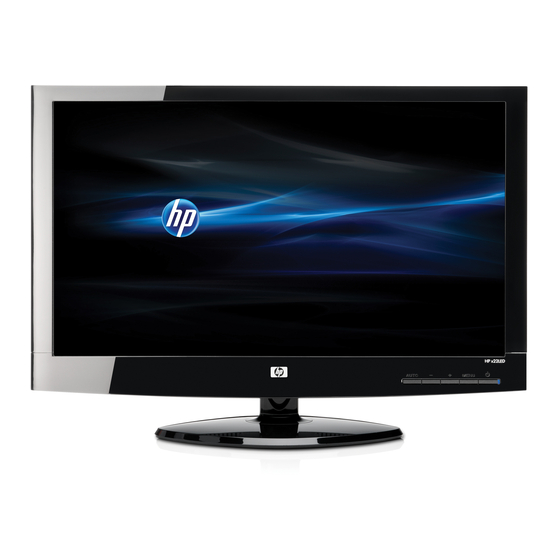

HP WS230AA User Manual
  1. Manuals
  2. Brands
  3. HP Manuals
  4. Monitor
  5. WS230AA
  6. User manual

HP WS230AA User Manual

Hp ws230aa: user guide
Hide thumbs
Table of Contents

Advertisement

Quick Links

HP x20LED, x22LED, x22LEDc and x23LED Monitors
User Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WS230AA and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for HP WS230AA

Summary of Contents for HP WS230AA

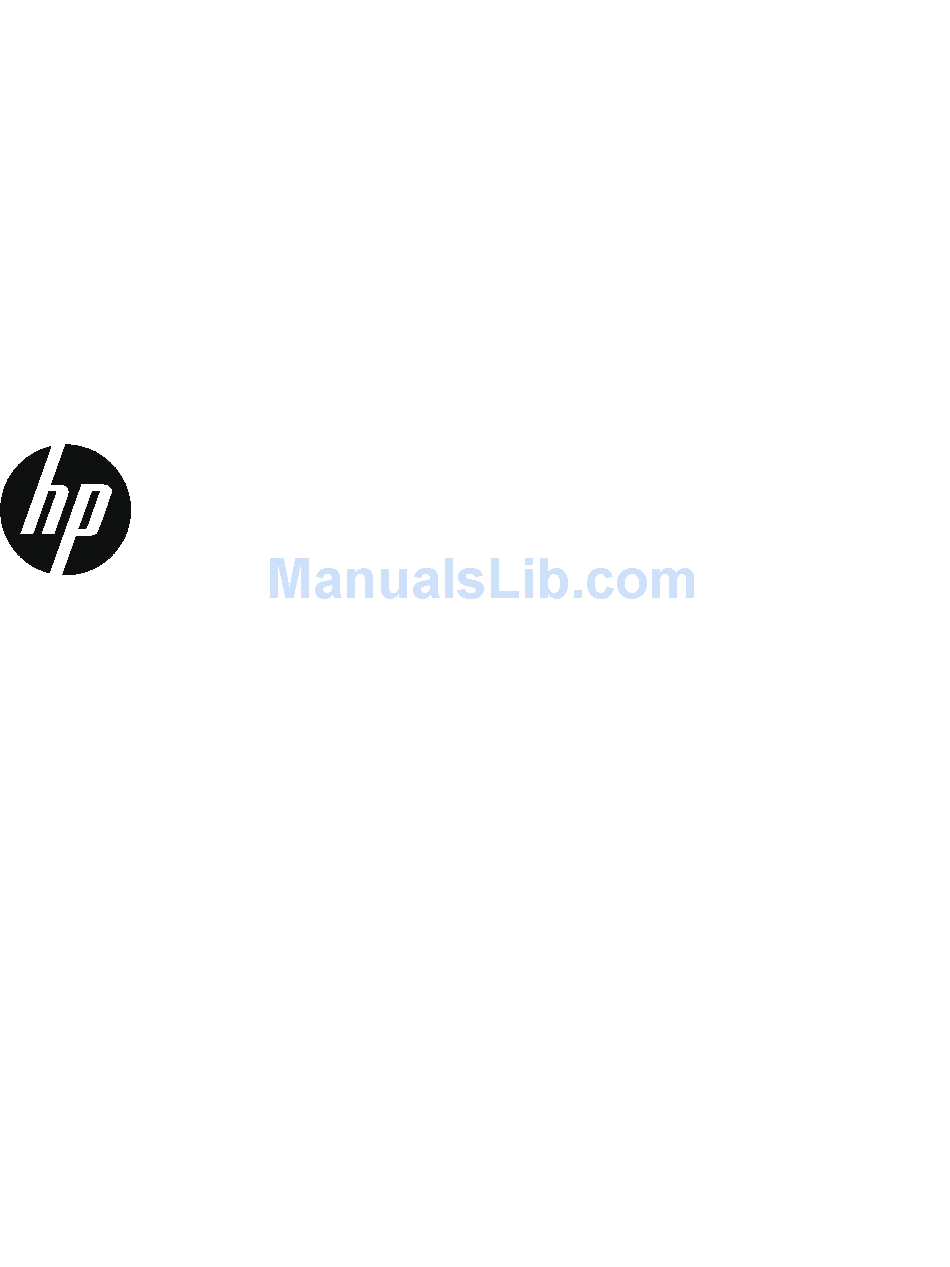

  • Page 1 HP x20LED, x22LED, x22LEDc and x23LED Monitors User Guide...
  • Page 3 Microsoft, Windows, and Windows Vista are either trademarks or registered trademarks of Microsoft Corporation in the United States and/or other countries. The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty.

  • Page 4: About This Guide

    About This Guide This guide provides information on setting up the monitor, installing drivers, using the on-screen display menu, troubleshooting and technical specifications. WARNING! Text set off in this manner indicates that failure to follow directions could result in bodily harm or loss of life.

  • Page 5: Table Of Contents

    Installing the monitor driver software from the CD........
  • Page 6 Getting Support from hp.com ........

  • Page 7: Product Features

    1. Product Features HP LCD Monitors The HP LCD (liquid crystal display) monitors have an active matrix, thin-film transistor (TFT) screen with the following features: • Large diagonal display • Maximum graphics resolution: x20LED: 1600 x 900 @ 60Hz x22LED/x22LEDc: 1920 x1080 @ 60Hz...

  • Page 8: Safety And Maintenance Guidelines

    2. Safety and Maintenance Guidelines Important Safety Information A power cord is included with the monitor. If another cord is used, use only a power source and connection appropriate for this monitor. For information on the correct power cord set to use with the monitor, refer to the "...

  • Page 9: Maintenance Guidelines

    Keep the monitor in a well-ventilated area, away from excessive light, heat or moisture. • When removing the monitor base, you must lay the monitor face down on a soft area to prevent it from getting scratched, defaced, or broken. Cleaning the Monitor 1.

  • Page 10: Setting Up The Monitor

    1. Unpack the monitor. Make sure all contents are included. Store the packing box. 2. Turn off the computer and other attached devices. 3. Prepare a flat area to assemble the monitor. You may need a flat, soft, protected area for placing the monitor screen-down while preparing it for installation.

  • Page 11: Connecting Monitor Cables

    Be sure the computer and monitor are turned off and unplugged. 1. To connect the VGA cable (provided with select models) Connect one end of the VGA video cable to the back of the monitor and the other end to the VGA video connector on the computer.
  • Page 12 Figure 3-4 Connecting the power cable 2. Connect one end of the power cable to the adapter and the other end to a grounded electrical outlet. 3. Connect the adapter plug to the monitor DC Jack. Chapter 3. Setting Up the Monitor ENWW...

  • Page 13: Operating The Monitor

    Software Readme" file on the CD for instructions (in English only). Downloading updated drivers from the Internet To download the latest version of drivers and software files from the HP Support site: 1. Refer to: http://www.hp.com/support . 2. Select your country/region.

  • Page 14: Front-Panel Controls

    +: Image ratio select when OSD is not active Appendix 4. Operating the Monitor Description Turns the monitor on or puts it in standby or sleep mode. The Power depending on the model. Opens, selects, or exits the OSD menu.

  • Page 15: Using The On-Screen Display (Osd)

    Using the On-Screen Display (OSD) Main Main 1st Sub Menu Item Menu Icon Menu Item Luminance Contrast Brightness Eco Mode ENWW 2nd Sub Menu Item Description Contrast from Digital-register. Each step will increase/ decrease value by 1 Backlight Adjustment Each step will increase/ decrease value by 1 Picture Adjustment, Brightness = 90,...
  • Page 16 Menu Item Image Clock Setup Phase H. Position V. Position Image Ratio Appendix 4. Operating the Monitor 2nd Sub Menu Item Description Adjust picture Clock to reduce Vertical-Line noise. Each step will increase/ decrease value by 1 Adjust Picture Phase to reduce Horizontal-Line noise.
  • Page 17 Main Main Menu Item Menu Icon Color Temp. ENWW Menu Item Description Warm Recall Warm Color Temperature. Normal Recall Normal Color Temperature. Cool Recall Cool Color Temperature. sRGB Recall sRGB Color (for select Temperature. models with sRGB function) Red Gain from Digital- register.
  • Page 18 Main Main Menu Item Menu Icon OSD Setup Appendix 4. Operating the Monitor Menu Item Description H. Position Adjust the horizontal position of the OSD. Each step will increase/ decrease value by 5 V. Position Adjust the vertical position of the OSD.
  • Page 19 Main Main Menu Item Menu Icon Extra ENWW Menu Item Description Input Select Select video input signal. DDC/CI Select DDC/CI on or off Reset Clear each old status of Auto- configuration and set the color temperature to Warm. Do not execute reset, return to main menu.

  • Page 20: Selecting Video Input Connectors

    No Signal - When the video cable is not connected, or the video cable is connected but there is no active signal input, the monitor will show this message, after 9 seconds the monitor will enter power saving. This message location is at the position setting in "OSD Setup"...

  • Page 21: Power-Saver Feature

    Power-Saver Feature When the monitor is in normal operating mode, the Power light is blue and the monitor uses the normal watts of power. For power usage, refer to "Technical Specification" (Appendix B). The monitor also supports a power-saver mode that is controlled by the computer.

  • Page 22: Troubleshooting

    Check with your computer manufacturer. Also check the monitor's video cable and make sure none of the pins are bent. • Make sure the HP Monitor Drivers are installed (HP Monitor Drivers are available at : http://www.hp.com/support) • Adjust the Contrast and Brightness Controls.

  • Page 23: Getting Support From Hp.com

    Problem Horizontal or vertical disturbances on the screen Getting Support from hp.com Before you contact customer service, refer to HP Technical Support at: http://www.hp.com/support Select your country/region, and then follow the links to the support page for your monitor. Preparing to Call Technical Support If you cannot solve a problem by using the troubleshooting tips in this section, you might have to call technical support.

  • Page 24: Technical Specifications

    B. Technical Specifications All specifications represent the typical specifications provided by HP's component manufacturers; actual performance may vary either higher or lower. HP LCD Monitors Face treatment: Glare polarizer with hard coating Input terminal: VGA connector DVI-D 24-pin D-type connector...
  • Page 25 Table B-2 Model x22LED/ x22LEDc Specifications: Display Type: Viewable Image Size Tilt Maximum Weight (unpacked) Dimensions (h x w x d) Maximum Graphics Resolution Optimum Graphics Resolution Text Mode Dot Pitch Horizontal Frequency (analog mode) Vertical Frequency (analog mode) Environmental Requirements Temperature (independent of altitude) Operating Temperature Non-Operating Temperature...
  • Page 26 Table B-3 Model x23LED Specifications: Display Type: Viewable Image Size Tilt Maximum Weight (unpacked) Dimensions (h x w x d) Maximum Graphics Resolution Optimum Graphics Resolution Text Mode Dot Pitch Horizontal Frequency (analog mode) Vertical Frequency (analog mode) Environmental Requirements Temperature (independent of altitude) Operating Temperature Non-Operating Temperature...

  • Page 27: Preset Video Modes

    Preset Video Modes The monitor automatically recognizes many preset video input modes that will appear properly sized and centered on the screen. Table B-4 Factory Preset Video Input Modes, x20LED model Item Preset Resolution 640 x 480 720 x 400...

  • Page 28: Lcd Monitor Quality And Pixel Policy

    For more information about your LCD Monitor, refer to the HP Web site at: http://www.hp.com/support . ENWW...

  • Page 29: Agency Regulatory Notices

    C. Agency Regulatory Notices Federal Communications Commission Notice This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

  • Page 30: Declaration Of Conformity For Products Marked With The Fcc Logo (United States Only)

    For questions regarding the product, contact: Hewlett Packard Company P. O. Box 692000, Mail Stop 530113 Houston, Texas 77269-2000 Or, call 1-800-HP-INVENT (1-800 474-6836) For questions regarding this FCC declaration, contact: Hewlett Packard Company P. O. Box 692000, Mail Stop 510101...

  • Page 31: German Ergonomics Notice

    Herrenberger Strasse 140, 71034 Boeblingen, Germany. German Ergonomics Notice HP products which bear the "GS" approval mark, when forming part of a system comprising HP brand computers, keyboards and monitors that bear the "GS" approval mark, meet the applicable ergonomic requirements. The installation guides included with the products provide configuration information.

  • Page 32: Power Cord Set Requirements

    AWG, and the length of the cord must be between 6 feet (1.8 m) and 12 feet (3.6 m). If you have questions about the type of power cord to use, contact an authorized HP service provider. A power cord should be routed so that it is not likely to be walked on or pinched by items placed upon it or against it.

  • Page 33: Disposal Of Waste Equipment By Users In Private Household In The European Union

    Chemical Substances HP is committed to providing our customers with information about the chemical substances in our products as needed to comply with legal requirements such as REACH (Regulation EC No 1907/2006 of the European Parliament and Council). A chemical information report for this product can be found at http://www.hp.com/go/reach .

  • Page 34: Turkey Eee Regulation

    Turkey EEE Regulation In Conformity with the EEE Regulation EEE Yönetmeliğine Uygundur ENWW...
