Connecting to a Power Source
To connect a switch to a power source:
1. Insert the power cable plug directly into the power socket located at
the back of the switch.
2. Plug the other end of the cable into a grounded, 3-pin, AC power
source.
Note:
For International use, you may need to change the AC line cord.
3. Check the front-panel LEDs as the device is powered on to be sure
the Power LED is lit. If not, check that the power cable is correctly
plugged in.
3-8
S
WITCH

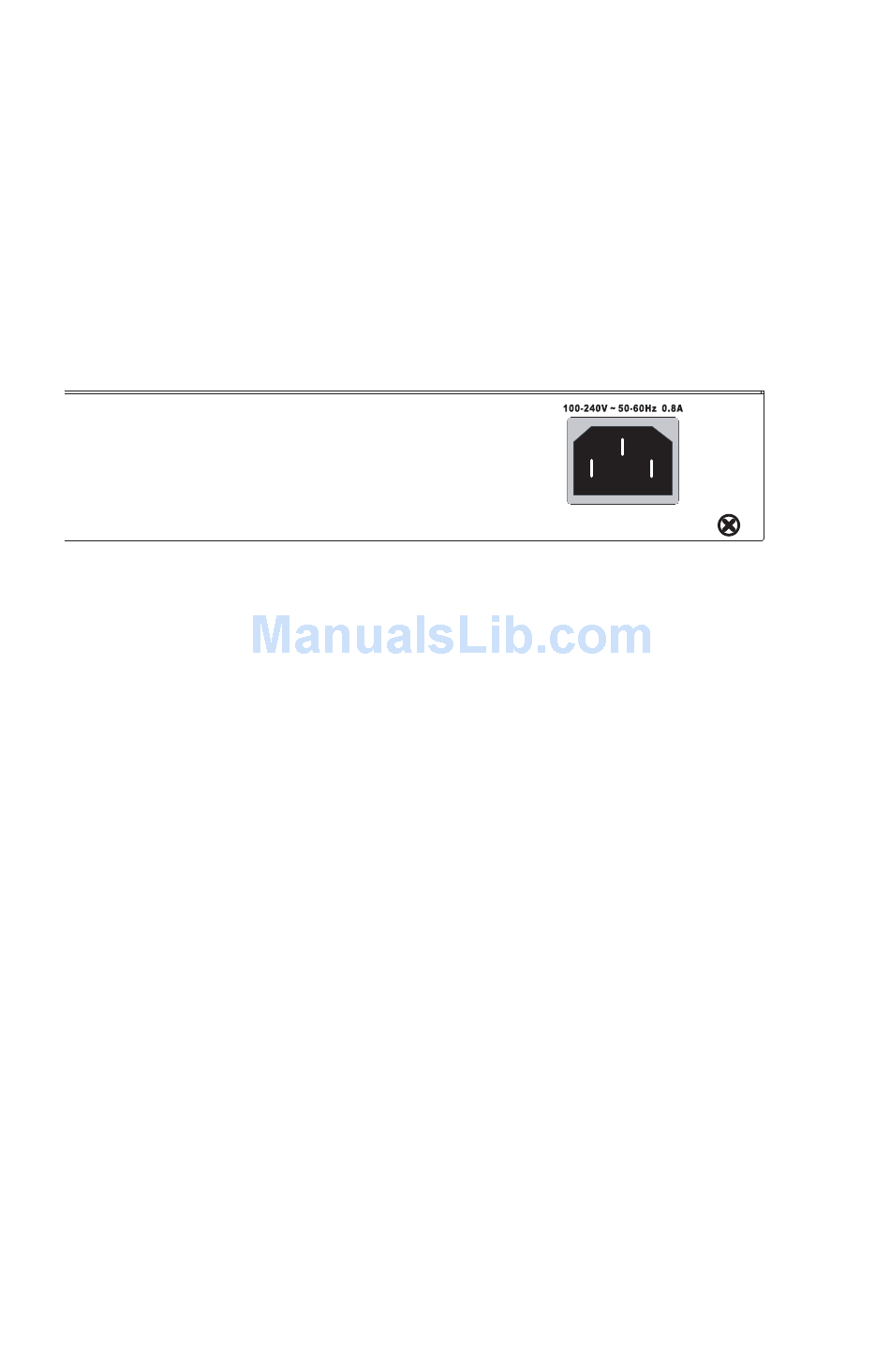

Figure 3-6 Power Socket
You must use a line cord set that has been approved for the
receptacle type in your country.
