A
Overview
The SMC6128L2 is a Fast Ethernet switch with 24 10/100BASE-TX ports
and four Gigabit combination ports
and an SFP transceiver slot. The switch also includes an SNMP-based
management agent embedded on the main board. This agent supports
both in-band and out-of-band access for managing the switch.
This switch provides a broad range of powerful features for Layer 2
switching, delivering reliability and consistent performance for your
network traffic. It brings order to poorly performing networks by
segregating them into separate broadcast domains with IEEE 802.1Q
compliant VLANs, and empowers multimedia applications with multicast
switching and CoS services.
Port Status Indicators
Console Port
System Indicators
1. RJ-45 ports shared with a SFP tranceiver slots. If an SFP transceiver is plugged in, the corresponding
RJ-45 port is disabled.
BOUT THE

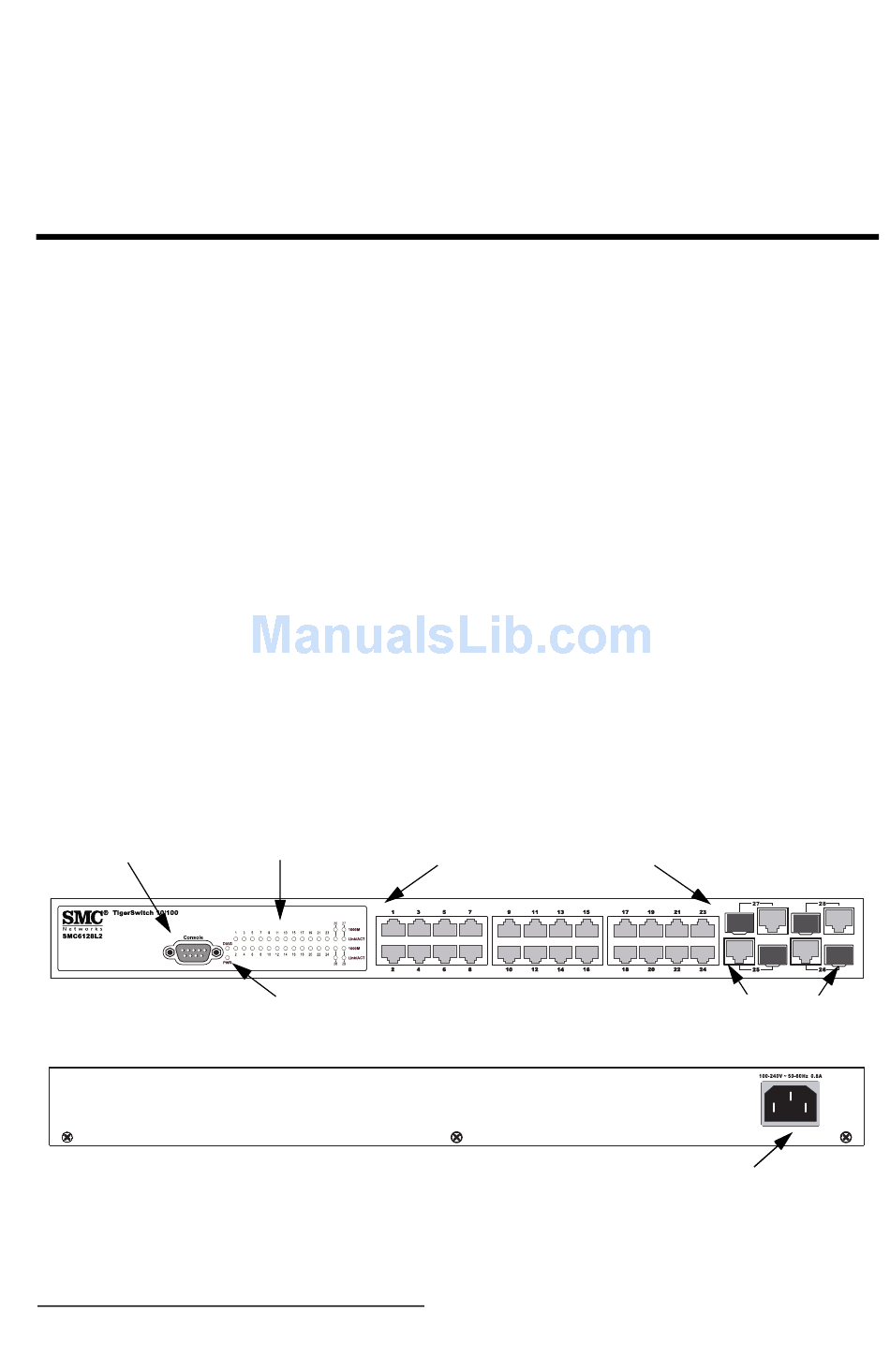

Figure 1-1 Front and Rear Panels

C
T
IGER
1
that are comprised of an RJ-45 port
10/100 Mbps RJ-45 Ports
HAPTER
S
WITCH
1000BASE-T/SFP Ports
Power Socket
1
1-1
