1000BASE-T Pin Assignments

All 1000BASE-T ports support automatic MDI/MDI-X operation, so you
can use straight-through cables for all network connections to PCs or
servers, or to other switches or hubs.
The table below shows the 1000BASE-T MDI and MDI-X port pinouts.
These ports require that all four pairs of wires be connected. Note that for
1000BASE-T operation, all four pairs of wires are used for both transmit
and receive.
Use 100-ohm Category 5, 5e or 6 unshielded twisted-pair (UTP) or
shielded twisted-pair (STP) cable for 1000BASE-T connections. Also be
sure that the length of any twisted-pair connection does not exceed 100
meters (328 feet).
B-4
EIA/TIA 568B RJ-45 Wiring Standard
10/100BASE-TX Crossover Cable
White/Orange Stripe
White/Green Stripe
1
2
3
4
5
6
7
8

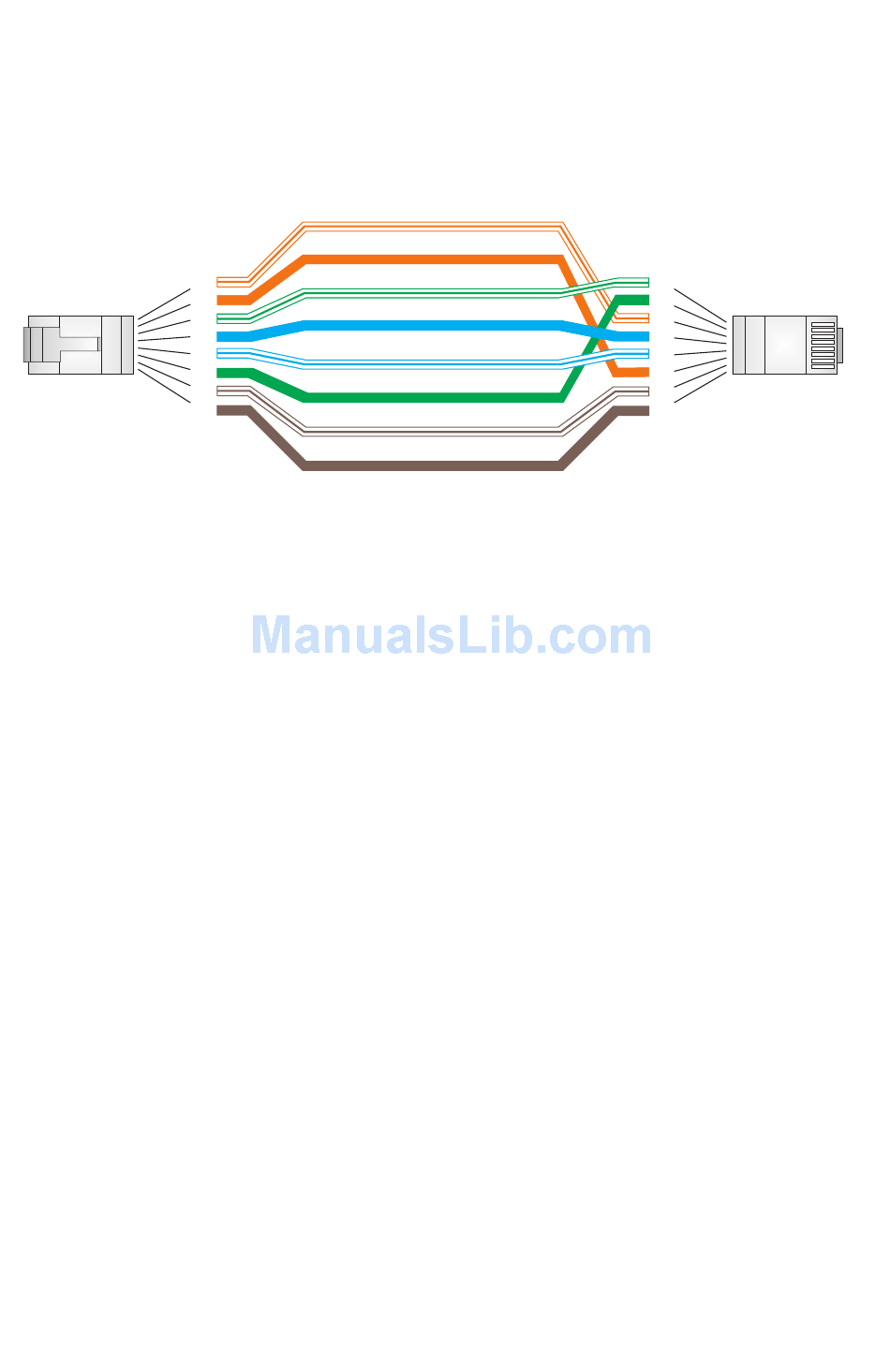

Figure B-3 Crossover Wiring

Orange
Blue
White/Blue Stripe
Green
White/Brown Stripe
Brown
1
2
End B
3
4
5
6
7
8
