Phone Line Configuration
Installing a Full-Rate Connection
If you are using a full-rate (G.dmt) connection, your service provider will
attach the outside ADSL line to a data/voice splitter. In this case you can
connect your phones and computer directly to the splitter as shown below:
Plain Old
Telephone
System (POTS)
Residential
Connection
Point [Network
Interface
Device (NID)]

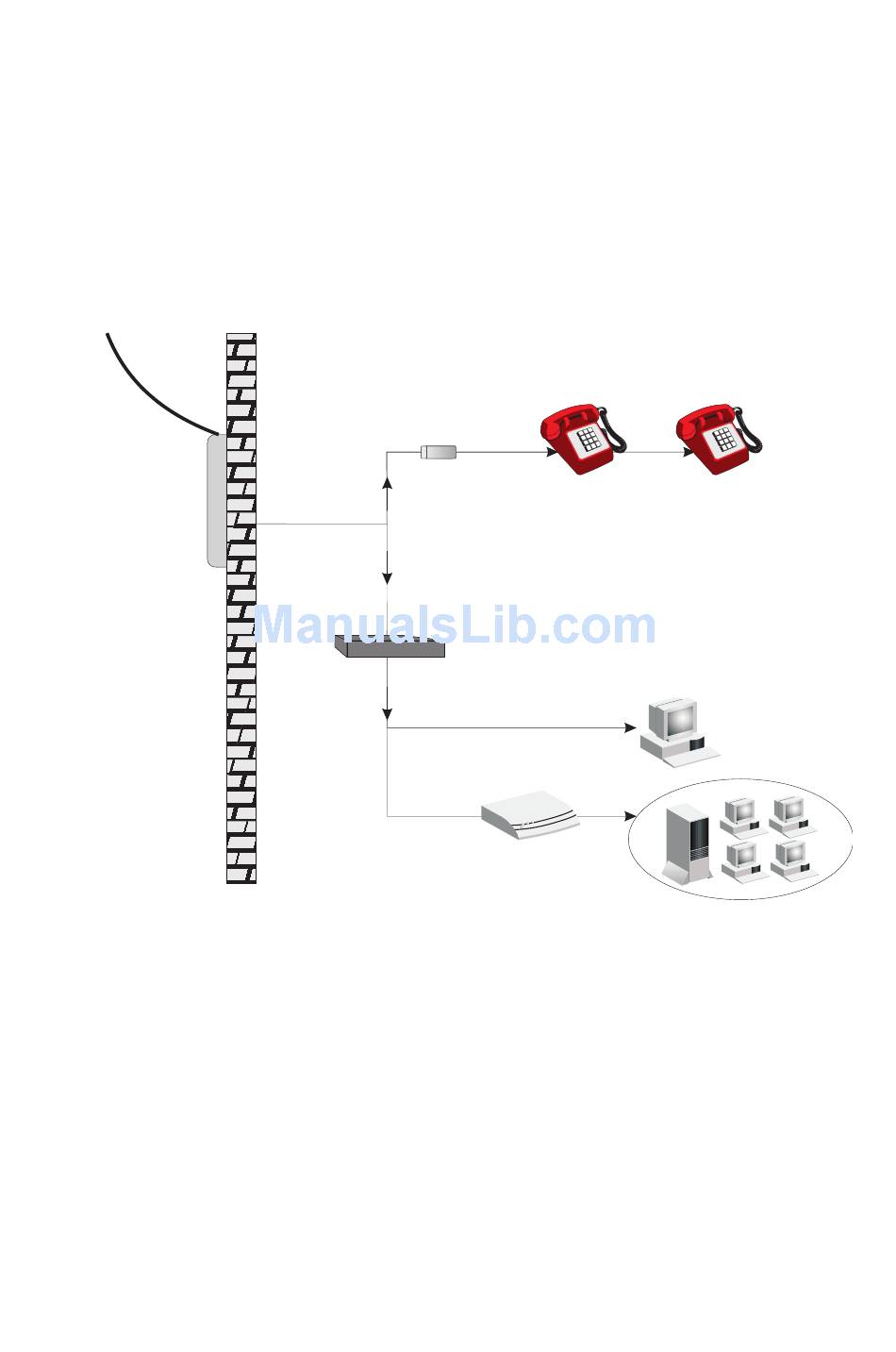

Figure 2-3. Installing with a Splitter
2-6
Voice
Filter
Voice
& Data
Voice
& Data
ADSL Router
Data
or
Ethernet
hub or switch
